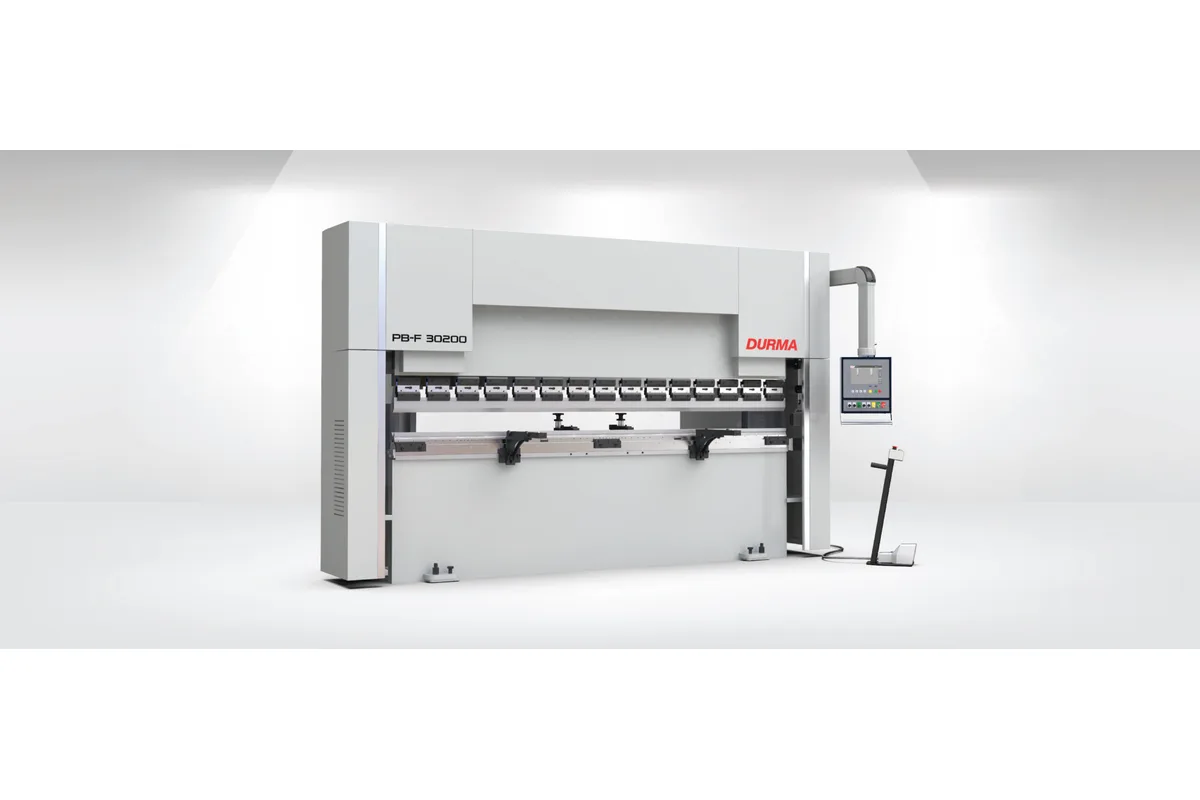

Durma PBF 30200
Image: durmazlar.com.tr, Durma
Key Specifications
bending force
bending length
distance between columns
stroke
daylight
throat depth
How much does the Durma PBF 30200 cost?
Price estimate
We do not have a price for the Durma PBF 30200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 200 ton on a 3,050 mm (120.1 in) bed, the Durma PBF 30200 has the highest bending force in the PBF series of hydraulic press brakes. It is the plate machine of the line. The bed and the 2,550 mm (100.4 in) between columns match the PBF 30120; the tonnage, the open height and the frame do not.
Heavier bending needs wider V dies and taller tooling, and the table reflects that. Stroke is 210 mm (8.3 in), the longest in the series, and daylight is 445 mm (17.5 in). The frame weighs 8,160 kg (17,989 lb), well above the PBF 30120, and the machine is 1,390 mm (54.7 in) wide. A 15 kW (20.1 hp) motor supplies the hydraulics.
Force is paid for in speed. Working speed is 7 mm/sec, the slowest bending speed in the PBF table, with a 100 mm/sec approach and a 73 mm/sec return. Thick plate is bent slowly in any case, so the figure matters more if the machine will also be used for light, high-count parts.
A manual crowning system is standard, which is useful at this tonnage because bed deflection grows with load. CNC controlled motorized crowning can be ordered instead. The back gauge is the series standard: servo X axis with 620 mm (24.4 in) of travel and manual R. The control is the DT 10, and the standard front safety system and side guards carry the Non-CE mark in Durma's list. Table height is 858 mm (33.8 in).
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 200 ton |
| Bending Length | 3,050 mm (120.1 in) |
| Distance Between Columns | 2,550 mm (100.4 in) |
| Stroke | 210 mm (8.3 in) |
| Daylight | 445 mm (17.5 in) |
| Throat Depth | 250 mm (9.8 in) |
| Y Rapid Speed | 100 mm/sec |
| Y Working Speed | 7 mm/sec |
| Y Return Speed | 73 mm/sec |
| Table Height | 858 mm (33.8 in) |
| Table Width | 104 mm (4.1 in) |
| X Axis Working Speed | 250 mm/sec |
| X Axis Travel | 620 mm (24.4 in) |
| Motor Power | 15 kW (20.1 hp) |
| Machine Length | 3,750 mm (147.6 in) |
| Machine Width | 1,390 mm (54.7 in) |
| Machine Height | 2,500 mm (98.4 in) |
| Machine Weight | 8,160 kg (17,989 lb) |
Specifications sourced from durmazlar.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 200 ton, the highest bending force in the PBF series
- Longest stroke of the series at 210 mm (8.3 in), with 445 mm (17.5 in) of daylight
- Manual crowning system as standard equipment
- 8,160 kg (17,989 lb) frame on a 3,050 mm (120.1 in) bed
- 15 kW (20.1 hp) main motor for the hydraulic system
Limitations
- Working speed is 7 mm/sec, the lowest in the PBF table
- Throat depth stays at 250 mm (9.8 in)
- R axis of the back gauge is manual unless the motorized X, R option is ordered
- CNC crowning is an option, not standard
Best For
Frequently Asked Questions
01
Bending force is 200 ton and bending length 3,050 mm (120.1 in). The distance between columns is 2,550 mm (100.4 in), the stroke 210 mm (8.3 in), the daylight 445 mm (17.5 in) and the throat depth 250 mm (9.8 in).
02
Same bending length, more force. The PBF 30120 is a 120 ton machine with a 180 mm (7.1 in) stroke and an 11 kW (14.8 hp) motor. The PBF 30200 has 200 ton, a 210 mm (8.3 in) stroke, a 15 kW (20.1 hp) motor and weighs 8,160 kg (17,989 lb).
03
Its working speed of 7 mm/sec is the lowest in the series. Rapid speed is 100 mm/sec and return speed 73 mm/sec. On thick plate the bending speed is rarely the limit, but on thin, high-volume parts a lighter model cycles faster.
04
It is 3,750 mm (147.6 in) long, 1,390 mm (54.7 in) wide and 2,500 mm (98.4 in) high, and weighs approximately 8,160 kg (17,989 lb). The table is 858 mm (33.8 in) high.
