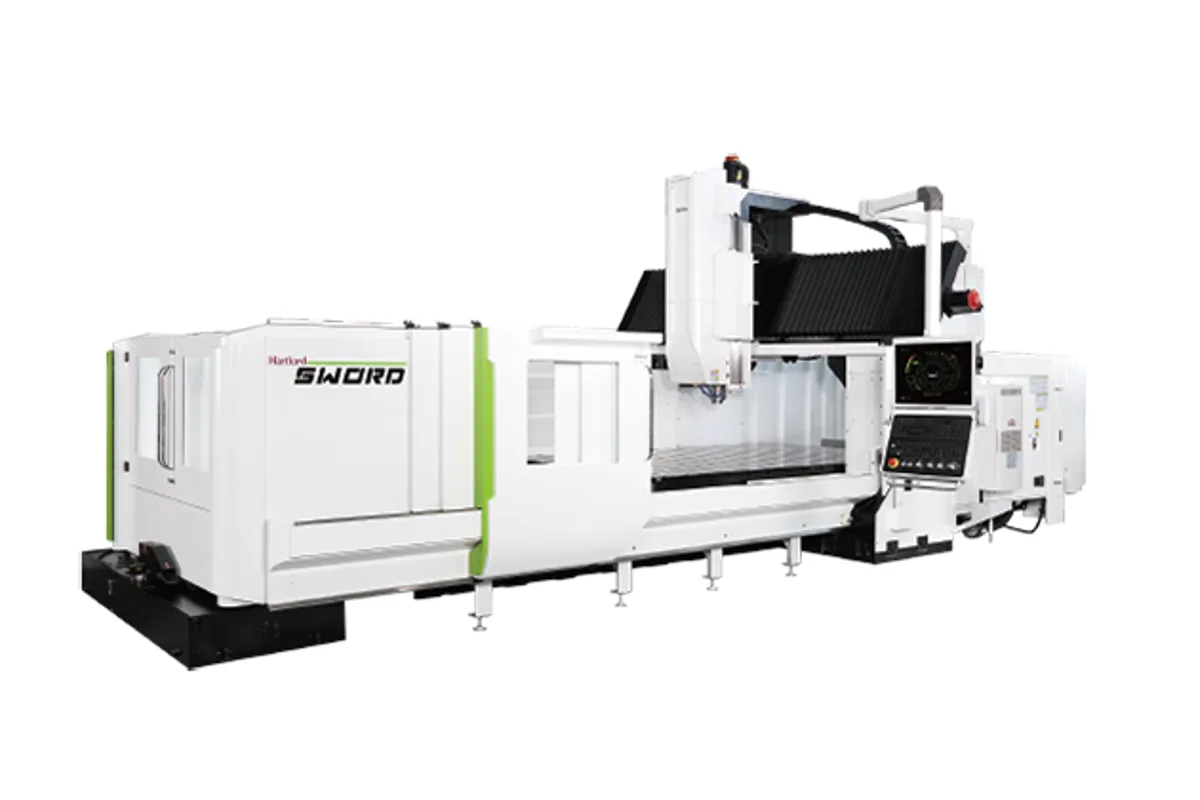

Hartford SW-320
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
t slots
How much does the Hartford SW-320 cost?
Price estimate
We do not have a price for the Hartford SW-320 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford SW-320 offers three Z strokes, which no other SW model does. The Z travel row reads 780 opt. 920 /1,070 mm. It is a box-guideway double-column machining center with 3,100 mm (122.0 in) of X travel and 2,000 mm (78.7 in) of Y.
Choosing Z on a bridge machine is a trade. A longer ram reaches deeper into a die cavity or over a taller part, but it also hangs further below the crossbeam when extended. With 780 mm, 920 mm and 1,070 mm on offer, the SW-320 can be matched to the height of the work instead of taking the longest ram by default.
The base spindle motor is 18.5/22 kW, one step above the 15/18.5 kW of the SW-316, with 22/26 kW and 30/37 kW as options (Cont. / 30 min). The spindle is a #50 gear head at 6,000 / 8,000 rpm. Hartford describes the head as self-made, with low-speed force for heavy cutting.
The table measures 3,000 x 1,830 mm (118.1 x 72.0 in) and carries 10,000 kg (22,046 lb). Tool storage is an arm-type magazine with 32, 40 or 60 tools. The frame has three box guideways on the column and a slant beam with increased way width.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 3,000 x 1,830 mm (118.1 x 72.0 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| T-Slots | 22 x 250 (12) mm |
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 780 opt. 920 /1,070 mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | #50 6,000 / 8,000 rpm |
| Tool Capacity | A: 32/40/60 pcs |
| Tool Shank | BT-50 (BBT /CAT /DIN) |
| Spindle Motor Power | 18.5/22 opt. 22/26,30/37 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Z travel of 780 mm with 920 mm or 1,070 mm as options
- Base motor of 18.5/22 kW with options to 30/37 kW (Cont. / 30 min)
- Table of 3,000 x 1,830 mm (118.1 x 72.0 in) for 10,000 kg (22,046 lb)
- 32, 40 or 60 tool arm-type magazine
- Slant beam structure with increased way width
Limitations
- Gear spindle only, at 6,000 / 8,000 rpm; the DDS option starts with the SW-323
- Table width of 1,830 mm sits between sizes and is narrower than the SW-323's 2,200 mm
- No S-type changer is listed for this model
- No feed or rapid rates on the product page
Best For
Frequently Asked Questions
01
780 mm as listed, with 920 mm and 1,070 mm as options. X travel is 3,100 mm (122.0 in) and Y travel is 2,000 mm (78.7 in).
02
18.5/22 kW as the base rating, with 22/26 kW and 30/37 kW as options, all continuous / 30 min. The spindle is a #50 gear head listed at 6,000 / 8,000 rpm.
03
3,000 x 1,830 mm (118.1 x 72.0 in), with T-slots listed as 22 x 250 (12) mm, and an average load of 10,000 kg (22,046 lb).
04
Not on the SW-320. The SW-323, with a 3,000 x 2,200 mm (118.1 x 86.6 in) table, adds a #50 DDS spindle at 10,000 / 12,000 rpm beside the gear head.
