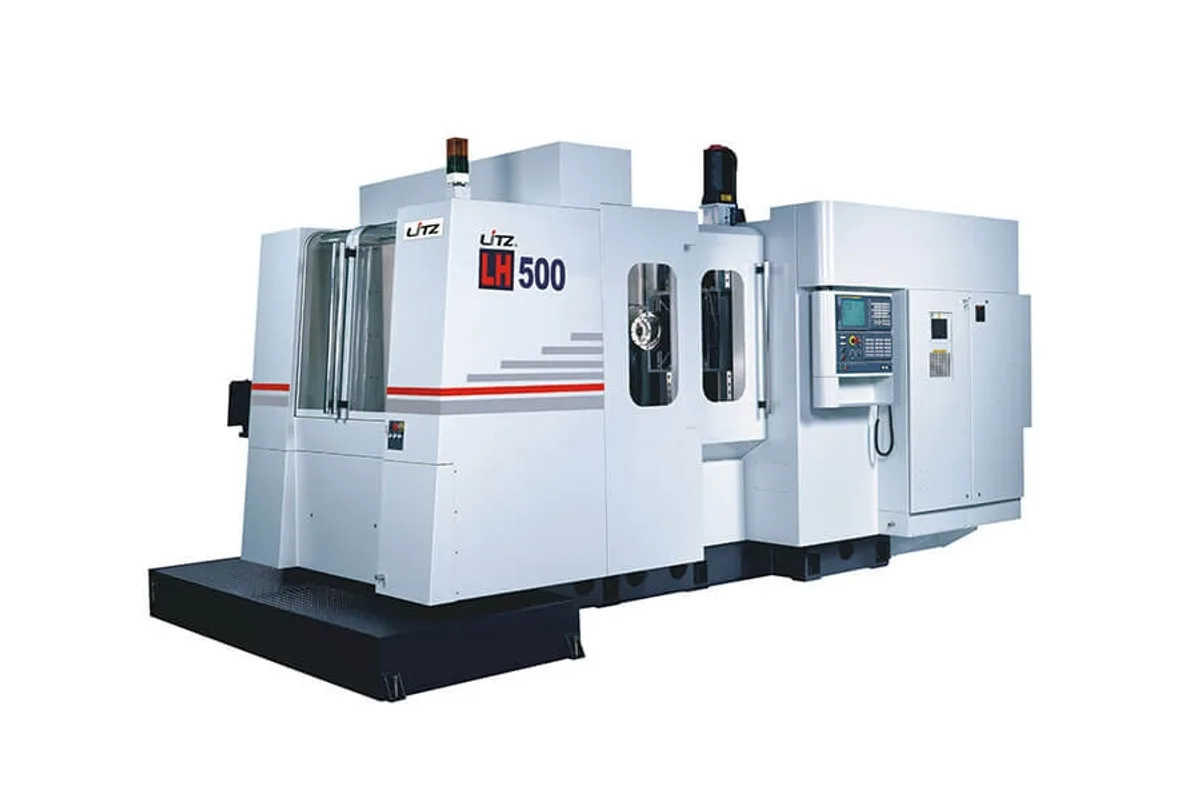

Litz LH-500A
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
Max Workpiece ⌀
x axis travel
How much does the Litz LH-500A cost?
Price estimate
We do not have a price for the Litz LH-500A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz LH-500A is a 500 mm horizontal machining center with a No.40 taper direct-drive spindle at 10,000 rpm. Travels are 700 mm (27.6 in) in X and 650 mm (25.6 in) in both Y and Z, and the two 500 x 500 mm (19.7 x 19.7 in) pallets each carry 500 kg (1,102 lb).
This is the general-purpose size of the range. A 500 mm pallet takes a four-sided tombstone of vises or a mid-sized gearbox or pump housing, and the work zone allows parts up to 700 mm (27.6 in) in diameter and 800 mm (31.5 in) high.
Tool capacity is the strong point of the A model. Sixty tools are standard, where the LH-500B has 40, and that matters on a horizontal: with four faces of a tombstone holding different parts, the tool list grows quickly. Each tool can be 380 mm (15.0 in) long and 8 kg (18 lb). Tool-to-tool time is 5 s.
The spindle delivers 120 Nm (89 lb-ft) from a 15 / 18.5 kW (20.1 / 24.8 hp) motor. Rapids are 36,000 mm/min (1,417 ipm) and the rotary pallet changer takes 18 s. Roller linear rails and hollow ballscrew cooling on the three axes are standard, as are a track type chip conveyor and an overhead chip wash-down system. Pallets index in 1° steps. The machine weighs 15,000 kg (33,069 lb) and occupies 5,000 x 3,200 mm (196.9 x 126.0 in). Control is FANUC 0i-MF.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 700 mm (27.6 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 650 mm (25.6 in) |
| Spindle Center to Pallet Face | 50 to 700 mm (2.0 to 27.6 in) |
| Spindle Nose to Pallet Center | 150 to 800 mm (5.9 to 31.5 in) |
| Pallet Size | 500 x 500 mm (19.7 x 19.7 in) |
| Max Workpiece Diameter | 700 mm (27.6 in) diameter |
| Max Pallet Load | 500 kg (1,102 lb) |
| Max Workpiece Height | 800 mm (31.5 in) |
| Pallet Indexing | 1° |
| Max Spindle Speed | 10,000 rpm |
| Spindle Torque | 120 Nm (89 lb-ft) |
| Spindle Taper | 7/24 Taper, NO.40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Transmission | Direct |
| Rapid Traverse Xyz | 36,000 mm/min (1,417 ipm) |
| Cutting Feed Rate | 1-10,000 mm/min (up to 394 ipm) |
| Tool Shank | ISO 40 or BBT-40 |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in); 160 mm (6.3 in) without adjacent tool |
| Max Tool Length | 380 mm (15.0 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Tool Change Time | 5 s (tool to tool) |
| Tool Selection Method | Fixed Address |
| Pallets | 2 |
| Pallet Change Type | Rotary Type |
| Pallet Change Time | 18 s |
| CNC Control | FANUC 0i-MF |
| Spindle Motor Power | 15 / 18.5 kW (20.1 / 24.8 hp) |
| Spindle Motor Torque | 120 Nm (89 lb-ft) |
| Axis Motors Xyzb | 7 / 7 / 4 / 1.6 kW |
| Hydraulic Pump Motor | 2.2 kW |
| Coolant Pump Motor | 1.6 kW |
| Power Requirement | 42 kVA |
| Hydraulic Tank Capacity | 60 L |
| Lubrication Tank Capacity | 4 L |
| Coolant Tank Capacity | 760 L |
| Machine Height | 2,980 mm (117.3 in) |
| Floor Area | 5,000 x 3,200 mm (196.9 x 126.0 in) |
| Machine Weight | 15,000 kg (33,069 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 60-tool magazine as standard
- 10,000 rpm direct-drive No.40 spindle with 120 Nm (89 lb-ft)
- 700 x 650 x 650 mm travels on 500 mm twin pallets
- Roller linear rails and hollow ballscrew cooling are standard
- 5 s tool-to-tool change with fixed address selection
Limitations
- Pallet indexing is 1° as standard; finer indexing is an option
- Tool weight limited to 8 kg (18 lb)
- Coolant through the spindle is an option
- 42 kVA supply and 15,000 kg (33,069 lb) machine weight
Best For
Frequently Asked Questions
01
Travels of 700 x 650 x 650 mm, two 500 x 500 mm (19.7 x 19.7 in) pallets rated for 500 kg (1,102 lb), a 10,000 rpm No.40 spindle with 120 Nm (89 lb-ft), a 15 / 18.5 kW motor and a 60-tool magazine.
02
The LH-500A has a No.40 spindle at 10,000 rpm, 60 tools and an 8 kg (18 lb) tool limit. The LH-500B is listed at 6,000 rpm with ISO 50 or BBT-50 tooling, 40 tools and a 20 kg (44 lb) tool limit. Travels and pallets are the same.
03
The rotary type automatic pallet changer takes 18 s. There are two pallets. Tool change time is 5 s tool to tool, with fixed address tool selection.
04
The floor area is 5,000 x 3,200 mm (196.9 x 126.0 in) and the height 2,980 mm (117.3 in). The machine weighs 15,000 kg (33,069 lb). The coolant tank holds 760 L.
