Feeler Horizontal Machining Centers (HMC)

Feeler FMH-800

Q: How much does the Feeler FMH-800 cost?

The price estimate for the Feeler FMH-800 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/feeler-fmh-800#price; the request is passed to Feeler or an authorised dealer.

Specs verified 2026-10-04 · feeler.com Updated 2026-10-04

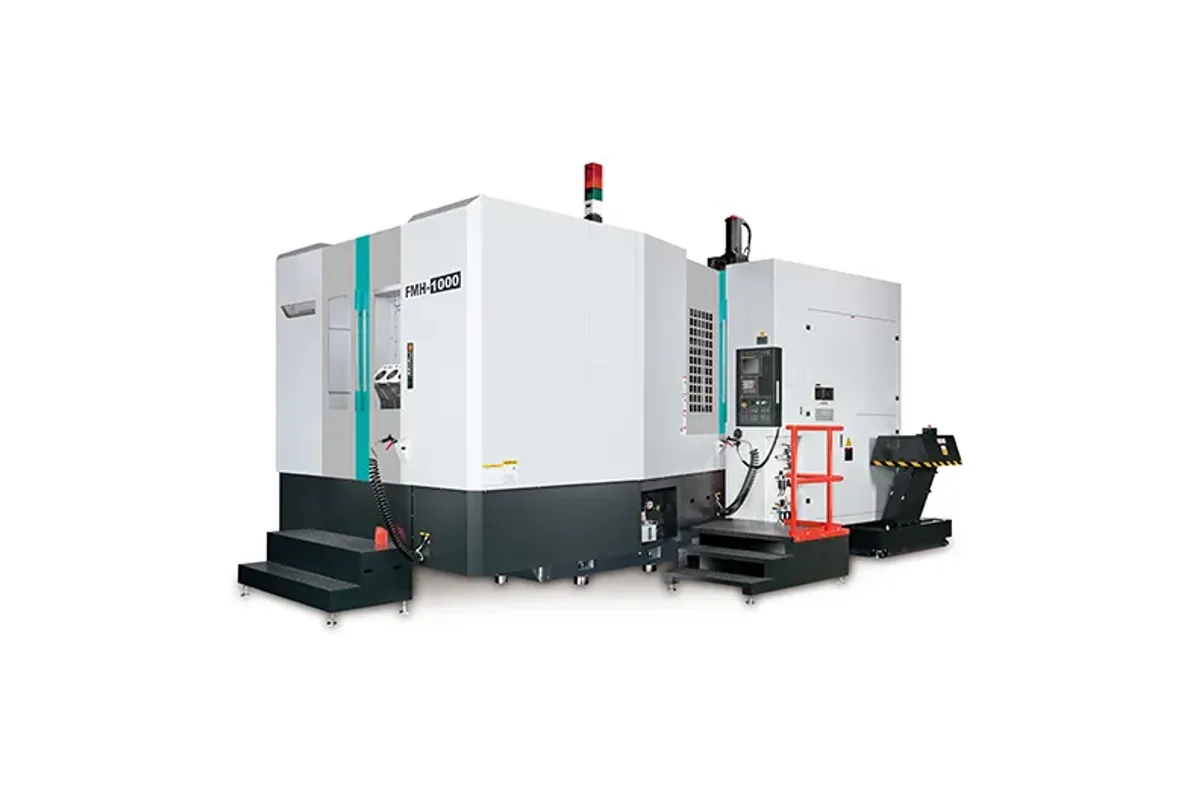

Feeler FMH-800 CNC machine (maker's picture titled FMH-800/1000)

Image: feeler.com, Feeler

Key Specifications

Max Spindle

6,000 rpm

Spindle Taper

7/24 Taper No.50

Tool Capacity

60-120

Table Size

800 x 800 mm (31.5 x 31.5 in)

max table load

2,000 kg (4,409 lb)

x axis travel

1,300 mm (51.2 in)

How much does the Feeler FMH-800 cost?

Price estimate

Uncertain

We do not have a price for the Feeler FMH-800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Heavy horizontals begin with the Feeler FMH-800: 800 x 800 mm (31.5 x 31.5 in) pallets rated for 2,000 kg (4,409 lb), and travels of 1,300 mm (51.2 in) in X, 1,020 mm (40.2 in) in Y and 1,100 mm (43.3 in) in Z. The spindle is a No.50 unit at 6,000 rpm.

Feeler says plainly what the machine is for: the FMH-800 and FMH-1000 excel in low-speed heavy cutting and large-part production. The spindle is described as high-power with a gearbox, the arrangement that multiplies torque for large face mills and boring heads at a few hundred rpm. The tool change system is servo-driven and adjusts its speed to the weight of the tool, a sensible feature when the magazine holds both light drills and heavy boring bars.

The structure combines a T-slot high-base rail design with a back-wall structure, high-tensile welded steel components and cast iron. The pallet sits on an APC servo rotary table with oversized locating pins. The series text also states that these two models feature a 45-degree inclined spindle head for combined vertical and horizontal machining; if that matters to the application, have Feeler show how it is configured, since the table has no row for it.

One discrepancy to clear up: the table lists a tool range of 60-120, while the text says a chain-type magazine comes standard with 40 stations and optionally 60. Rapid traverse is 42 m/min (1,654 ipm) on all three axes, quick for a machine in this weight class.

Full Specifications

Parameter	Value
Table Size	800 x 800 mm (31.5 x 31.5 in)
Max Table Load	2,000 kg (4,409 lb)
X Axis Travel	1,300 mm (51.2 in)
Y Axis Travel	1,020 mm (40.2 in)
Z Axis Travel	1,100 mm (43.3 in)
Max Spindle Speed	6,000 rpm
Spindle Taper	7/24 Taper No.50
Rapid Traverse X	42 m/min (1,654 ipm)
Rapid Traverse Y	42 m/min (1,654 ipm)
Rapid Traverse Z	42 m/min (1,654 ipm)
Tool Capacity	60-120

Specifications sourced from feeler.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,000 kg (4,409 lb) pallet load on 800 x 800 mm pallets
High-power spindle with gearbox for low-speed heavy cutting, per Feeler
Travels of 1,300 x 1,020 x 1,100 mm
Servo tool change system that adjusts speed based on tool weight
42 m/min (1,654 ipm) rapids on X, Y and Z

Limitations

Spindle speed is limited to 6,000 rpm
Feeler's table and text disagree on magazine size (60-120 against 40 standard, 60 optional)
No torque, power or gear-range data on the series page
Pallet indexing increment and maximum workpiece swing are not published

Best For

Large gearbox and pump casings up to 2,000 kg Heavy face milling and boring in steel and cast iron Welded structures needing multi-face machining Large parts where low-speed torque matters more than rpm

Frequently Asked Questions

01 What are the travels and pallet size of the Feeler FMH-800?

X is 1,300 mm (51.2 in), Y is 1,020 mm (40.2 in) and Z is 1,100 mm (43.3 in). The pallet is 800 x 800 mm (31.5 x 31.5 in) and carries up to 2,000 kg (4,409 lb).

02 Does the FMH-800 have a geared spindle?

Feeler's text describes a high-power spindle with gearbox on the FMH-800 and FMH-1000. The table lists 6,000 rpm with a 7/24 Taper No.50. Gear ratios, torque and power are not given.

03 How many tools does it hold?

The spec table gives a range of 60-120. The series text says a chain-type tool magazine comes standard with 40 stations (optional 60). The two statements differ, so confirm the standard magazine with Feeler.

04 What is the difference between the FMH-800 and the FMH-1000?

Pallet size. The FMH-1000 has 1,000 x 1,000 mm pallets. Its travels, 2,000 kg load, spindle, rapids and tool range are the same as on the FMH-800 in Feeler's table.
