Makino a81M
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Makino a81M is a heavy-duty 500 mm pallet horizontal machining center engineered specifically for demanding material removal in steel, cast iron, and high-nickel alloys. The 'M' designation signals its orientation toward mold base machining, large die components, and difficult ferrous parts where cutting forces are high and thermal stability is critical. It complements the a61nx in Makino's 500 mm pallet lineup by prioritizing torque and structural rigidity over the high-speed capabilities of the a61nx's optional 15,000 RPM spindle.
The a81M's spindle runs at 8,000 RPM maximum with 735 Nm of torque — more than double the torque of the a61nx's standard spindle — and delivers 30 kW (40 hp) continuous through an HSK-A63 taper. This torque level enables deep-cut roughing in P20 tool steel, H13 die steel, and Inconel without operator intervention or feed rate reduction. The spindle is core-cooled with Makino's Active Thermal Compensation system, which measures and corrects thermal growth in real time, a critical feature for mold and die work where dimensional consistency across a 16-hour shift is non-negotiable.
Structurally, the a81M uses a box-way architecture rather than the linear guides of the a61nx, trading some rapid traverse speed for dramatically higher cutting rigidity. Box ways dampen vibration during interrupted cuts and resist the lateral forces generated when heavy-duty face mills engage steel. The dual 500 x 500 mm pallets enable pallet changes in under 10 seconds. Travel is 730 x 650 x 800 mm, with positioning accuracy of ±0.003 mm.
The machine is well suited for shops that split their time between large mold base work and production machining of ferrous parts. It competes with the Mazak HCN-6000 in heavy-duty configuration and the DMG Mori NHX 5000 with high-torque spindle options. Pricing starts around $400,000 for a base two-pallet configuration.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 730 mm (28.7 in) |
| Y-Axis Travel | 650 mm (25.6 in) |
| Z-Axis Travel | 800 mm (31.5 in) |
| Pallet Size | 500 x 500 mm (19.7 x 19.7 in) |
| Number Of Pallets | 2 (expandable via MMC2 pallet pool) |
| Pallet Load Capacity | 800 kg (1,764 lb) |
| Max Workpiece Size | 900 mm dia x 1,000 mm tall |
| Max Spindle Speed | 8,000 RPM |
| Spindle Taper | HSK-A63 |
| Spindle Motor Power | 30 kW (40 hp) |
| Spindle Torque | 735 Nm (542 ft-lb) |
| Guideway Type | Box way (high rigidity) |
| B Axis | Direct-drive, 0.001° indexing |
| Tool Capacity | 60 (expandable to 120/180) |
| Tool To Tool | 1.8 sec |
| Chip To Chip | 4.2 sec |
| Rapid Traverse Rate | 40 m/min (1,575 ipm) |
| Positioning Accuracy | ±0.003 mm |
| Repeatability | ±0.002 mm |
| Machine Weight | 20,000 kg (44,092 lb) |
| CNC Control | Makino Professional 6 (Fanuc-based) |
| Eventscontent Librarywebinar Archiveownersmakino Expertisesafety Data Sheetsnewsroomfinancing | Financing OptionsMakino makes it easy to upgrade with flexible financing optionsLearn More |
Specifications sourced from makino.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 735 Nm spindle torque enables aggressive roughing in tool steel, cast iron, and high-temperature alloys without spindle stall or feed rate reduction
- Box-way construction provides higher cutting rigidity and vibration damping than linear guides, critical for interrupted cuts in hard materials
- Active Thermal Compensation system measures and corrects thermal growth in real time, maintaining part accuracy across extended production shifts
- Dual 500 mm pallets keep spindle utilization high even on long-cycle ferrous parts — operator loads offline while spindle continues cutting
- HSK-A63 tooling provides superior clamping force over CAT 40, reducing tool pull-out risk during heavy cuts
Limitations
- 8,000 RPM maximum spindle speed is a limitation for aluminum and light alloy work — the a61nx with 15,000 RPM option is a better choice for those materials
- Box-way construction limits rapid traverse to 40 m/min vs 60 m/min on linear-guide machines, adding non-cutting time on short-cycle parts
- 20,000 kg machine weight demands a robust foundation; installation costs typically run $25,000-$40,000 for site prep and rigging
- Price premium over the a61nx requires clear justification through ferrous material requirements — don't buy the a81M for aluminum work
Best For
Frequently Asked Questions
01
The a81M is built for heavy ferrous cutting: it has 735 Nm torque vs 314 Nm on the a61nx, uses box ways instead of linear guides for higher rigidity and vibration damping, and tops out at 8,000 RPM vs 10,000 RPM (15,000 RPM optional) on the a61nx. The a61nx is faster and better suited for aluminum and mixed production. The a81M is the choice when you're cutting steel, cast iron, or high-temp alloys where torque and rigidity matter most.
02
The a81M targets P20 and H13 tool steel, gray and nodular cast iron, ductile iron, hardened steels up to 62 HRC (with appropriate tooling), and high-temperature alloys including Inconel and titanium. Its high-torque spindle and box-way construction are specifically suited to these difficult materials. It is not the optimal choice for aluminum or light alloys.
03
Yes. Makino's Active Thermal Compensation system continuously measures spindle and structural thermal growth using embedded sensors and applies real-time corrections through the control. This is essential for mold and die work where a part might be on the machine for 10-16 hours and dimensional drift from heat buildup must be controlled.
04
Both machines target the heavy-duty 500 mm pallet market. The a81M is generally preferred for thermal stability and its Active Thermal Compensation system. The NHX 5000 offers a broader spindle option range and DMG Mori's worldwide service network. The a81M's box-way construction is a specific advantage for interrupted cuts and hard material machining that the NHX 5000's linear guide configuration cannot fully match.
05
Base pricing starts around $400,000 for a two-pallet, 60-tool configuration. Expanded tool magazines, pallet pool integration, and premium coolant systems push configured prices to $500,000-$600,000. Used a81M machines are less common on the secondhand market than a51nx or a61nx units, typically trading between $200,000 and $350,000.

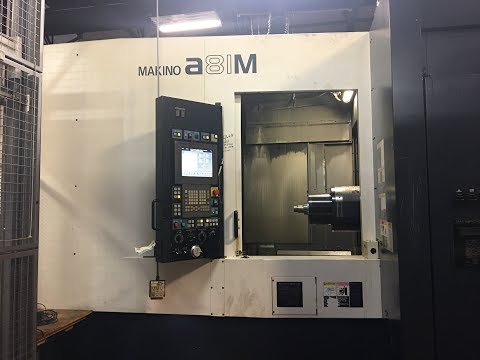

Videos
