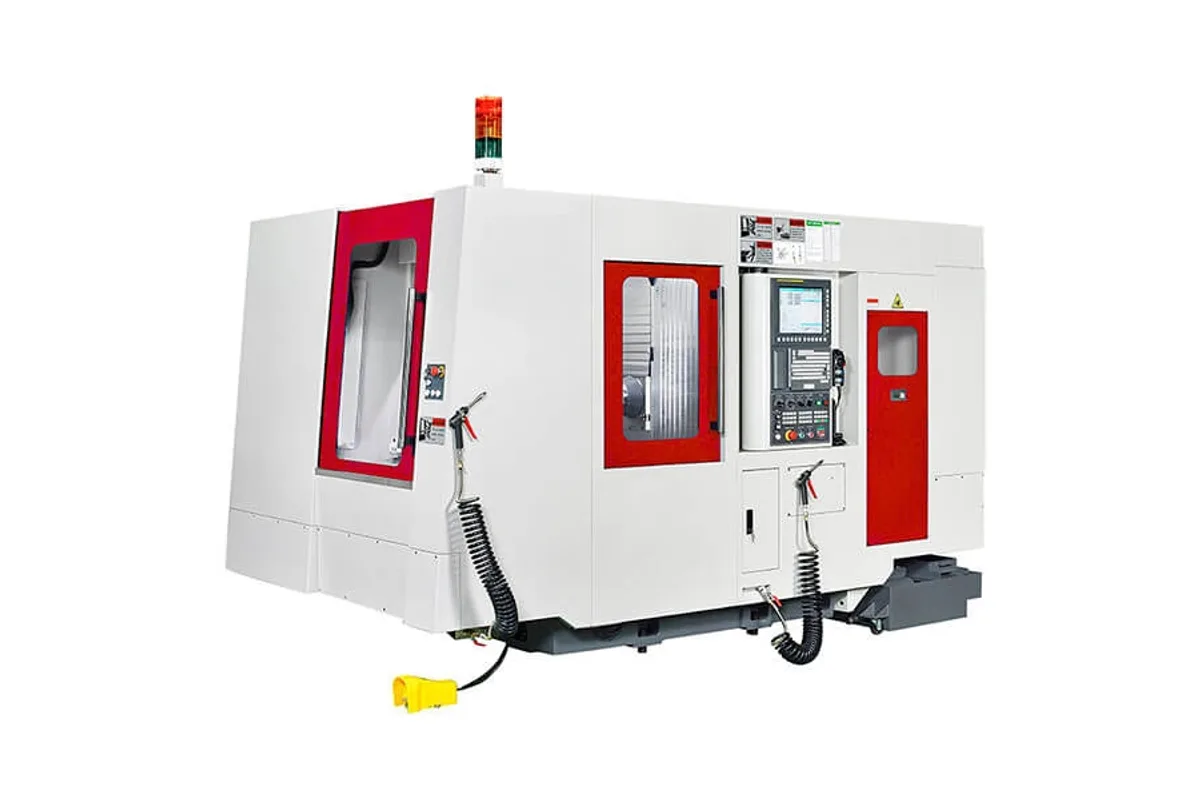

Litz LH-300
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
Max Workpiece ⌀
x axis travel
How much does the Litz LH-300 cost?
Price estimate
We do not have a price for the Litz LH-300 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz LH-300 is the smallest horizontal machining center in the LH series: a twin-pallet machine with 320 x 320 mm (12.6 x 12.6 in) pallets, a No.30 taper spindle at 15,000 rpm and travels of 460 mm (18.1 in) in X and Y and 350 mm (13.8 in) in Z.
A 30-taper horizontal is a production tool for small aluminium and die-cast parts. The spindle is direct-drive with 70 Nm (52 lb-ft) of maximum torque from a 7.5 / 11 kW (10.1 / 14.8 hp) motor, the rapids are 48,000 mm/min (1,890 ipm), and the rotary pallet changer swaps pallets in 10 s. Everything is tuned to keep the spindle cutting and the operator loading.
Pallet indexing is 0.001° as standard, so the fourth axis can position to any angle and not only to whole degrees, which is unusual at this size and useful for angled ports and cross holes. Each pallet carries 250 kg (551 lb) and a workpiece up to 430 mm (16.9 in) in diameter and 550 mm (21.7 in) high.
The magazine holds 30 BBT-30 tools with random selection. Tools are limited to 5 kg (11 lb), 210 mm (8.3 in) in length and 60 mm (2.4 in) in diameter, or 100 mm (3.9 in) with empty neighbours. A chip conveyor and overhead chip wash-down system are standard. Coolant through the spindle is optional. Control is FANUC 0i-MD, and the machine weighs 7,000 kg (15,432 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 460 mm (18.1 in) |
| Y Axis Travel | 460 mm (18.1 in) |
| Z Axis Travel | 350 mm (13.8 in) |
| Spindle Center to Pallet Face | 60 to 520 mm (2.4 to 20.5 in) |
| Spindle Nose to Pallet Center | 60 to 410 mm (2.4 to 16.1 in) |
| Pallet Size | 320 x 320 mm (12.6 x 12.6 in) |
| Max Workpiece Diameter | 430 mm (16.9 in) diameter |
| Max Pallet Load | 250 kg (551 lb) |
| Max Workpiece Height | 550 mm (21.7 in) |
| Pallet Indexing | 0.001° |
| Max Spindle Speed | 15,000 rpm |
| Spindle Torque | 70 Nm (52 lb-ft) |
| Spindle Taper | 7 / 24 Taper, No.30 |
| Spindle Bearing Inner Diameter | 45 mm (1.8 in) |
| Spindle Transmission | Direct Drive |
| Rapid Traverse Xyz | 48,000 mm/min (1,890 ipm) |
| Cutting Feed Rate | 1-12,000 mm/min (up to 472 ipm) |
| Tool Shank | BBT - 30 |
| Tool Capacity | 30 |
| Max Tool Diameter (full magazine) | 60 mm (2.4 in); 100 mm (3.9 in) without adjacent tool |
| Max Tool Length | 210 mm (8.3 in) |
| Max Tool Weight | 5 kg (11 lb) |
| Tool Selection Method | Random |
| Pallets | 2 |
| Pallet Change Type | Rotary |
| Pallet Change Time | 10 s |
| CNC Control | FANUC 0i-MD |
| Spindle Motor Power | 7.5 / 11 kW (10.1 / 14.8 hp) |
| Spindle Motor Torque | 17.9 / 47.7 Nm |
| Axis Motors Xyzb | 2.7 / 4.5 / 2.7 / 1.6 kW |
| Hydraulic Pump Motor | 1.5 kW |
| Power Requirement | 25 kVA |
| Hydraulic Tank Capacity | 50 L |
| Lubrication Tank Capacity | 2 L |
| Coolant Tank Capacity | 300 L |
| Machine Height | 2,270 mm (89.4 in) |
| Machine Weight | 7,000 kg (15,432 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 15,000 rpm direct-drive No.30 spindle with 70 Nm (52 lb-ft)
- 48,000 mm/min (1,890 ipm) rapids and a 10 s pallet change
- Pallet indexing of 0.001° as standard
- Two 320 x 320 mm (12.6 x 12.6 in) pallets with a rotary changer
- Chip conveyor and overhead chip wash-down system included
Limitations
- Pallet load limited to 250 kg (551 lb)
- BBT-30 tooling limited to 5 kg (11 lb) and 210 mm (8.3 in)
- Z travel of 350 mm (13.8 in)
- Coolant through the spindle is an option
Best For
Frequently Asked Questions
01
Two pallets of 320 x 320 mm (12.6 x 12.6 in), each rated for 250 kg (551 lb). The maximum workpiece is 430 mm (16.9 in) in diameter and 550 mm (21.7 in) high. The rotary pallet changer takes 10 s.
02
A direct-drive spindle with a 7/24 No.30 taper at 15,000 rpm, a maximum torque of 70 Nm (52 lb-ft) and a 7.5 / 11 kW (10.1 / 14.8 hp) motor. Tool shank is BBT-30. Spindle oil cooling and an air seal system are standard.
03
Travels are the same. The LH-350A has a No.40 taper spindle at 12,000 rpm with CAT40II tooling, 350 x 350 mm pallets and tools up to 8 kg (18 lb). The LH-300 has the No.30 spindle at 15,000 rpm.
04
Rapid traverse is 48,000 mm/min (1,890 ipm) on X, Y and Z, and cutting feed is programmable up to 12,000 mm/min. The axis motors are 2.7 / 4.5 / 2.7 / 1.6 kW for X, Y, Z and B.
