Litz LH-630B

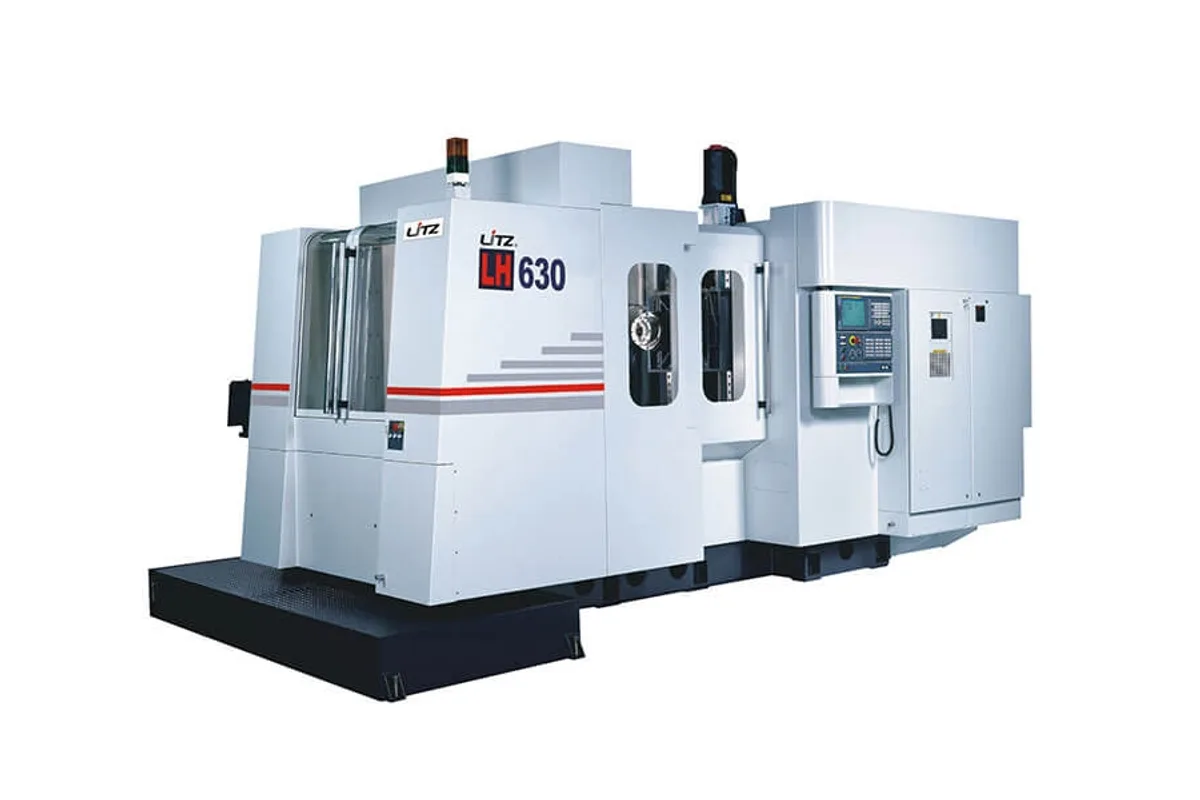

Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
Max Workpiece ⌀
x axis travel
How much does the Litz LH-630B cost?
Price estimate
We do not have a price for the Litz LH-630B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz LH-630B is the 50-taper machine among the 630 mm LH horizontal machining centers. It has a No.50 spindle at 6,000 rpm, belt type transmission, and travels of 1,000 mm (39.4 in), 850 mm (33.5 in) and 950 mm (37.4 in) in X, Y and Z.
Belt drive sets it apart from the direct-drive LH-630A. A belted spindle isolates the motor from cutting vibration and heat, and it is the usual arrangement for 50-taper spindles that spend their life boring and face milling. The front bearing bore is 100 mm (3.9 in).
Torque is listed at 165 Nm (122 lb-ft) with a 22 / 26 kW (29.5 / 34.9 hp) motor. That is moderate for the taper. The larger LH-800B, by comparison, reaches 660 Nm through a ZF gear box. Treat the LH-630B as a machine for cast iron, aluminium and medium steel cuts with big tools, and look further up the range for heavy steel roughing.
Tools can weigh 20 kg (44 lb) and measure 450 mm (17.7 in) in length, 120 mm (4.7 in) in diameter with neighbours and 230 mm (9.1 in) without. The magazine holds 40 with fixed address selection. Pallets are 630 x 630 mm (24.8 x 24.8 in) with a 1,000 kg (2,205 lb) rating, changed by a rotary changer in 18 s. Rapids are 32,000 mm/min (1,260 ipm). Weight is 23,000 kg (50,705 lb) and supply 42 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 950 mm (37.4 in) |
| Spindle Center to Pallet Face | 100 to 950 mm (3.9 to 37.4 in) |
| Spindle Nose to Pallet Center | 150 to 1,100 mm (5.9 to 43.3 in) |
| Pallet Size | 630 x 630 mm (24.8 x 24.8 in) |
| Max Workpiece Diameter | 1,000 mm (39.4 in) diameter |
| Max Pallet Load | 1,000 kg (2,205 lb) |
| Max Workpiece Height | 1,000 mm (39.4 in) |
| Pallet Indexing | 1° |
| Max Spindle Speed | 6,000 rpm |
| Spindle Torque | 165 Nm (122 lb-ft) |
| Spindle Taper | 7/24 Taper, NO.50 |
| Spindle Bearing Inner Diameter | 100 mm (3.9 in) |
| Spindle Transmission | Belt Type |
| Rapid Traverse Xyz | 32,000 mm/min (1,260 ipm) |
| Cutting Feed Rate | 1-10,000 mm/min (up to 394 ipm) |
| Tool Shank | ISO 50 or BBT-50 |
| Tool Capacity | 40 |
| Max Tool Diameter (full magazine) | 120 mm (4.7 in); 230 mm (9.1 in) without adjacent tool |
| Max Tool Length | 450 mm (17.7 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Tool Change Time | 5 s (tool to tool) |
| Tool Selection Method | fixed Address |
| Pallets | 2 |
| Pallet Change Type | Rotary Type |
| Pallet Change Time | 18 s |
| CNC Control | FANUC 0i-MF |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) |
| Spindle Motor Torque | 165 Nm (122 lb-ft) |
| Axis Motors Xyzb | 7 / 7 / 7 / 3 kW |
| Hydraulic Pump Motor | 2.2 kW |
| Coolant Pump Motor | 1.6 kW |
| Power Requirement | 42 kVA |
| Hydraulic Tank Capacity | 60 L |
| Lubrication Tank Capacity | 4 L |
| Coolant Tank Capacity | 800 L |
| Machine Height | 3,362 mm (132.4 in) |
| Floor Area | 5,966 x 3,570 mm (234.9 x 140.6 in) |
| Machine Weight | 23,000 kg (50,705 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- No.50 taper spindle with a 100 mm (3.9 in) bearing bore
- Tools up to 20 kg (44 lb), 450 mm (17.7 in) long and 230 mm (9.1 in) in diameter without adjacent tools
- 1,000 x 850 x 950 mm travels and 1,000 kg (2,205 lb) per pallet
- 22 / 26 kW (29.5 / 34.9 hp) spindle motor
Limitations
- Spindle torque of 165 Nm (122 lb-ft) is modest for a 50-taper spindle
- 40-tool magazine, against 60 on the LH-630A
- Spindle speed of 6,000 rpm as standard
- No gear box listed; the LH-800B has a ZF gear box
Best For
Frequently Asked Questions
01
A 7/24 No.50 taper spindle at 6,000 rpm with belt type transmission, 165 Nm (122 lb-ft) of maximum torque and a 22 / 26 kW (29.5 / 34.9 hp) motor. Tool shank is ISO 50 or BBT-50.
02
Forty, with fixed address selection and a 5 s tool-to-tool change. Each tool can be up to 450 mm (17.7 in) long and 20 kg (44 lb).
03
Two 630 x 630 mm (24.8 x 24.8 in) pallets, each rated for 1,000 kg (2,205 lb), with 1° indexing and an 18 s rotary pallet change. The largest workpiece is 1,000 mm (39.4 in) in diameter and height.
04
The LH-800B has 800 x 800 mm pallets, 1,300 x 1,200 x 1,200 mm travels, a 2,000 kg (4,409 lb) pallet load and 660 Nm of torque through a ZF gear box. The LH-630B is smaller and lists 165 Nm with a belt drive.
