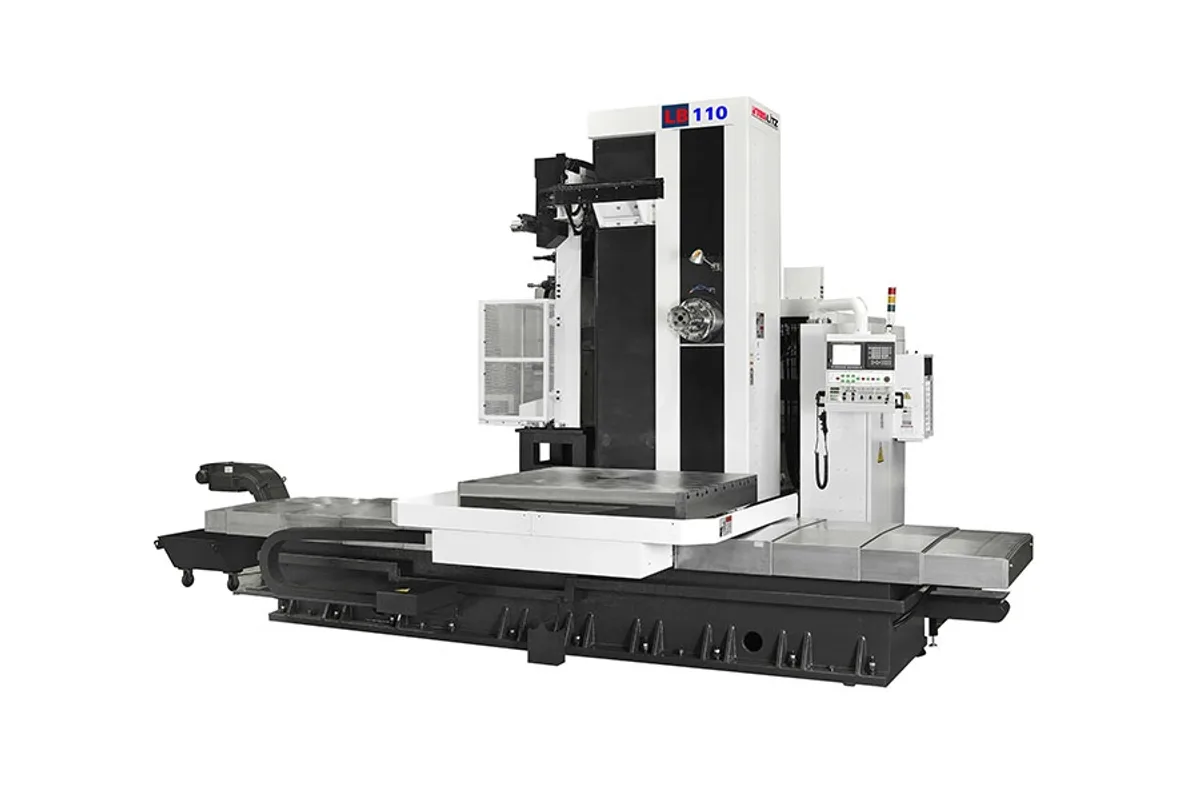

Litz LB-110
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Litz LB-110 cost?
Price estimate
We do not have a price for the Litz LB-110 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz LB-110 is a table-type horizontal boring and milling machine with a 110 mm (4.3 in) boring spindle, a rotary table of 1,400 x 1,600 mm (55.1 x 63.0 in) and travels of 3,000 mm (118.1 in) in X, 2,100 mm (82.7 in) in Y and 1,500 mm (59.1 in) in Z.
A fourth linear axis, W, extends the spindle 500 mm (19.7 in) out of the headstock. That reach is the point of a boring mill: bores deep inside a housing or gearbox case can be cut without a long tool overhang. The table carries 8,000 kg (17,637 lb) and positions in 0.001° steps, so the sides of a casting are machined from one setup. Litz states a table clamping force of 13,500 kg (29,762 lb) for holding position under heavy cuts.
The spindle is geared. It tops out at 2,500 rpm with 22 / 26 kW (29.5 / 34.9 hp) and 1,274 / 1,500 Nm (940 / 1,106 lb-ft), on a BT No.50 taper. This is a torque machine for large cutters, boring bars and face mills in steel and cast iron; small tools in aluminium will run far below their best speed. Boxways on the three axes fit that purpose, and rapids are correspondingly slow at 10 m/min (394 ipm) in X, Y and Z and 4 m/min (157 ipm) in W.
A floor-type tool changer with 60 stations is standard, with 90 or 120 as options. Tools can weigh up to 25 kg (55 lb), and a change takes 16 s. Linear scales on the three axes and a rotary encoder on the B axis are in the standard list, as is the FANUC 0iMF control.
Installation needs planning. The outline is 6,900 x 6,900 x 4,100 mm, net weight is 28,000 kg (61,728 lb) and the supply is 55 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 2,100 mm (82.7 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| W Axis Travel | 500 mm (19.7 in) |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) (continuous / 30 min) |
| Spindle Torque | 1,274 / 1,500 Nm (940 / 1,106 lb-ft) |
| Spindle Diameter | 110 mm (4.3 in) |
| Max Spindle Speed | 2,500 rpm |
| Spindle Taper | BT No.50+MAS2 |
| Spindle Lubrication | Oil lubrication |
| Spindle Cooling | Oil Cooler |
| Spindle Drawbar Force | 1,800 to 2,100 kg (3,968 to 4,630 lb) |
| Table Size | 1,400 x 1,600 mm (55.1 x 63.0 in) |
| T-Slot Width | 24 mm (0.9 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| Table Clamping Force | 13,500 kg (29,762 lb) |
| Table Indexing | 0.001° |
| Rapid Traverse Xyz | 10 m/min (394 ipm) |
| Rapid Traverse W | 4 m/min (157 ipm) |
| Table Speed Max | 1 rpm |
| Coolant Tank Capacity | 500 L |
| Coolant Pump Motor | 1.35 kW |
| Hydraulic System Power | 10 HP (7.5 kW) |
| Max Tool Diameter (full magazine) | 120 / 250 mm (4.7 / 9.8 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Tool Change Time | 16 s |
| Tool Capacity | 60; optional 90 or 120 |
| Power Requirement | 55 kVA |
| Compressed Air | 6 kg/cm² |
| Machine Dimensions | 6,900 x 6,900 x 4,100 mm (271.7 x 271.7 x 161.4 in) |
| Machine Weight | 28,000 kg (61,728 lb) net |
| Machine Gross Weight | 30,000 kg (66,138 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 500 mm (19.7 in) W-axis spindle extension for deep bores
- Geared spindle with 1,274 / 1,500 Nm (940 / 1,106 lb-ft) of torque
- Rotary table with 0.001° positioning and an 8,000 kg (17,637 lb) load capacity
- 3,000 mm (118.1 in) of X and 2,100 mm (82.7 in) of Y travel
- 60-station floor-type tool changer, linear scales and B-axis rotary encoder are standard
Limitations
- Spindle speed is limited to 2,500 rpm
- Rapid traverse of 10 m/min (394 ipm) is slow for work with many positioning moves
- Each tool change on the floor-type changer takes 16 s
- Coolant through the spindle, the worktable enclosure and the milling heads are options
- A 28,000 kg (61,728 lb) machine with a 6,900 x 6,900 mm outline takes a large floor area
Best For
Frequently Asked Questions
01
X (worktable left/right) is 3,000 mm (118.1 in), Y (spindle up/down) 2,100 mm (82.7 in), Z (column front/back) 1,500 mm (59.1 in) and W (spindle extension) 500 mm (19.7 in). The table also rotates, with a positioning resolution of 0.001°.
02
A 110 mm (4.3 in) boring spindle with a BT No.50 taper, 2,500 rpm maximum speed, 22 / 26 kW (29.5 / 34.9 hp) output (continuous / 30 min) and 1,274 / 1,500 Nm (940 / 1,106 lb-ft) of torque. Spindle lubrication is by oil, and an oil cooler handles spindle cooling.
03
The standard table loading capacity is 8,000 kg (17,637 lb) on a 1,400 x 1,600 mm (55.1 x 63.0 in) worktable with 24 mm (0.9 in) T-slots. The table's maximum speed is 1 rpm and its clamping force is 13,500 kg (29,762 lb).
04
A floor-type automatic tool changer with a 60-station magazine is standard; 90 and 120 stations are options. Maximum tool diameter is listed as 120 / 250 mm (4.7 / 9.8 in), maximum tool weight is 25 kg (55 lb) and the tool changing time is 16 s.
