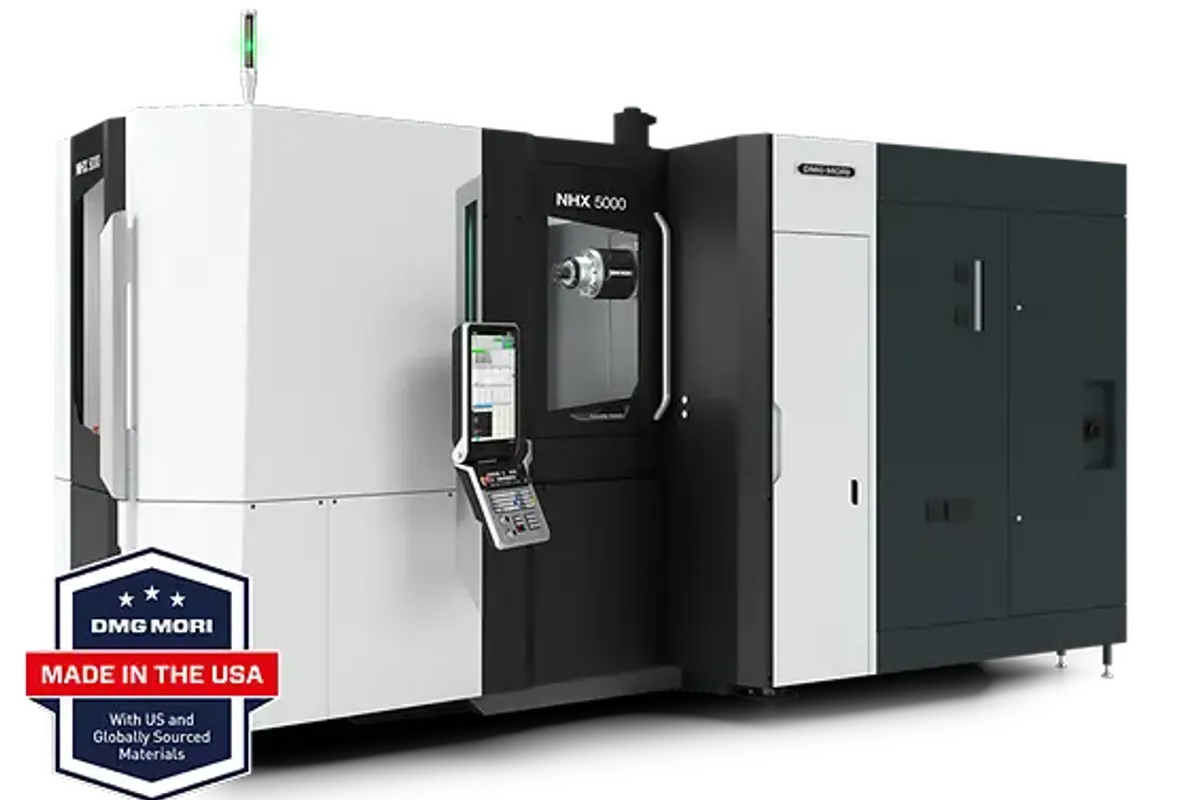

DMG Mori NHX 5000

$375,000 - $500,000 Updated 2026-03-11

Key Specifications

X Travel

730 mm (28.7 in)

Y Travel

730 mm (28.7 in)

Z Travel

880 mm (34.6 in)

Max Spindle

12,000 RPM

Spindle Taper

SK-40 / CAT 40

Tool Capacity

40 tools standard (60 optional)

Overview

The DMG Mori NHX 5000 is a production horizontal machining center built for shops that need a solid combination of speed, accuracy, and rigidity in the 500mm pallet class. Now in its 4th generation, the NHX 5000 delivers 730 x 730 x 880 mm (28.7 x 28.7 x 34.6 in) of travel — notably more Z-axis stroke than most competitors at 880 mm, which gives extra room for tall fixtures and deep-cavity work.

The standard spindle runs at 15,000 RPM with 37 kW (50 hp) at 10% ED and 250 Nm of torque, using an SK-40 (CAT 40) taper. The speedMASTER spindle is a DMG Mori in-house design that's been refined across four generations, and the company backs it with a 36-month warranty on current-production units. Rapid traverse hits 60 m/min (2,362 ipm) with 1G acceleration, keeping non-cutting time competitive with the best in class.

DMG Mori's CELOS control interface runs on top of a Mitsubishi or FANUC CNC (operator's choice on some configurations), providing a unified touchscreen experience with app-based workflow management. The NHX 5000 supports DMG Mori's automation ecosystem including the PH Cell pallet handling system, LPP linear pallet pool, and robotic loading. Direct scale feedback on all axes delivers positioning resolution down to sub-micron levels for tight-tolerance production work.

Competitors include the Mazak HCN-5000, Okuma MB-5000HII, and Makino A51nx. The NHX 5000 differentiates with its longer Z-axis travel, the speedMASTER spindle warranty, and the flexibility of CELOS as a control platform. New machines price in the $375,000-$500,000 range. Used NHX 5000 units from 2013-2020 trade between $100,000 and $275,000. Specs sourced from DMG Mori published data and dealer documentation.

Full Specifications

Parameter	Value
X-Axis Travel	730 mm (28.7 in)
Y-Axis Travel	730 mm (28.7 in)
Z-Axis Travel	880 mm (34.6 in)
Max Spindle Speed	12,000 RPM
Spindle Taper	SK-40 / CAT 40
Spindle Motor Power	37 kW (50 hp) at 10% ED; 22 kW (30 hp) continuous
Spindle Torque	250 Nm (184 ft-lb) at 10% ED; 104 Nm (77 ft-lb) continuous
Tool Capacity	40 tools standard (60 optional)
Tool Change Time	1.5 sec tool-to-tool
Pallet Size	500 x 500 mm (19.7 x 19.7 in)
Max Workpiece Size	Ø 800 x 1,000 mm (Ø 31.5 x 39.4 in)
Max Work Weight	500 kg (1,102 lb)
Rapid Traverse Rate	60 m/min (2,362 ipm)
Axis Acceleration	1G
Table Indexing	B-axis: 360° (1° index standard; 0.001° with DDM option)
Machine Weight	11,080 kg (24,420 lb)
Machine Footprint	5,500 x 3,000 x 2,800 mm (216.5 x 118.1 x 110.2 in) L x W x H
CNC Control	CELOS with Mitsubishi M730UM or FANUC 31i-B5
Positioning Accuracy	±0.002 mm (±0.00008 in) with direct scale feedback
Repeatability	±0.001 mm (±0.00004 in)
Year	2007
Control Type	MSX 701III
Pallet	15.7" X 15.7"
Number Of Pallets	2
Travels	22" x 22" x 24.8"
Equipped With	60 ATC, CAT 40 Spindle Taper

Strengths & Limitations

Strengths

880 mm Z-axis travel is longer than most 500mm HMC competitors (730-810 mm typical), providing extra clearance for tall fixtures and deep-cavity work
speedMASTER spindle with 36-month warranty on current-production units demonstrates DMG Mori's confidence in spindle reliability for production environments
CELOS control platform provides a modern touchscreen interface with app-based workflow management and can run on Mitsubishi or FANUC CNC depending on shop preference
Direct scale feedback on all axes delivers sub-micron positioning resolution for tight-tolerance production work without relying solely on encoder compensation
1G axis acceleration combined with 60 m/min rapids keeps non-cutting time competitive with the fastest machines in the 500mm HMC class
Broad automation ecosystem including PH Cell, LPP linear pallet pool, and robotic loading provides flexible scaling options as production needs grow

Limitations

40-tool standard magazine is smaller than competitors like the Mazak HCN-5000 (40 standard but scales to 348) and Okuma MB-5000HII (48 standard, up to 340), limiting high-mix flexibility without upgrading to 60-tool option
At 11,080 kg, the NHX 5000 is one of the lighter machines in this class, which can limit rigidity during aggressive roughing in hard materials compared to heavier-frame competitors
CELOS interface adds a learning curve for operators used to native Fanuc or Mitsubishi controls, and some advanced CELOS features require DMG Mori-specific training
DMG Mori service can be inconsistent by region, and parts pricing tends to be higher than Japanese OEM competitors like Mazak and Okuma

Best For

Production shops requiring extra Z-axis travel for tall fixtures, deep cavities, or stacked tombstone setups that benefit from the 880 mm stroke Aerospace and medical component manufacturing where direct scale feedback and tight positioning accuracy are critical for compliance Shops already running DMG Mori equipment that want to standardize on CELOS for unified workflow management across their machine fleet Mixed-material production environments where the 15,000 RPM / 250 Nm spindle handles both aluminum high-speed work and moderate steel cutting Facilities planning to scale into DMG Mori's automation ecosystem with PH Cell or LPP for multi-pallet lights-out production Job shops that value the flexibility of choosing Mitsubishi or FANUC CNC as the underlying control platform

Frequently Asked Questions

01 What does a new DMG Mori NHX 5000 cost?

New 4th-generation NHX 5000 machines start around $375,000 for a base configuration. With expanded ATC, through-spindle coolant, probing, direct-drive B-axis, and CELOS upgrades, expect $425,000-$500,000+. Adding PH Cell automation adds another $80,000-$150,000. Used NHX 5000 units from 2013-2020 trade between $100,000 and $275,000 depending on generation, hours, and options.

02 How does the NHX 5000 compare to the Mazak HCN-5000?

The NHX 5000 has 150 mm more Z-axis travel (880 vs 730 mm) and the speedMASTER spindle with a warranty. The Mazak counters with deeper automation integration through PALLETECH and much larger tool magazine options (up to 348 vs 60). Rapid traverse and acceleration are comparable. The choice often comes down to control preference (CELOS vs MAZATROL), existing machine standardization, and whether Z-travel or tool capacity matters more for your work.

03 What control options are available?

Current NHX 5000 4th-generation machines run CELOS, DMG Mori's touchscreen interface built on top of either a Mitsubishi M730UM or FANUC 31i-B5 CNC. CELOS provides unified app-based workflow management, while the underlying CNC handles motion control and G-code execution. Earlier generations used a Mitsubishi M730BM without CELOS.

04 What is the speedMASTER spindle?

speedMASTER is DMG Mori's in-house spindle design, developed specifically for the NHX series. Current versions deliver 15,000 RPM with 37 kW and 250 Nm of torque. DMG Mori offers a 36-month warranty on speedMASTER spindles in current-production machines, which is longer than the standard machine warranty. The spindle uses a direct coupling design for high rigidity and thermal stability.

05 Can I automate the NHX 5000?

Yes. DMG Mori offers several options: the PH Cell is a compact pallet handling system with up to 40 pallets, the LPP (Linear Pallet Pool) scales to larger multi-machine cells, and robotic part loading is available through DMG Mori's automation partnerships. The standard two-pallet changer also supports unattended production for simpler setups.

06 Is the NHX 5000 good for steel cutting?

It handles moderate steel cutting well, but at 11,080 kg it's on the lighter side for the class. The 250 Nm spindle torque is adequate for production steel work with appropriate tooling. For heavy steel and cast iron roughing, consider the NHX 5500 (630mm pallet, CAT 50 option) or a heavier-frame machine like the Okuma MA-600HII.
