HNK HKDB-130(1.2Mx9M)
Key Specifications
Spindle Taper
Table Size
Spindle Power
max table load
x axis travel
y axis travel
How much does the HNK HKDB-130(1.2Mx9M) cost?
Price estimate
We do not have a price for the HNK HKDB-130(1.2Mx9M) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Nine metres of X travel puts the HNK HKDB-130(1.2Mx9M) in the middle of the HKDB duplex boring machines. The moving table is 1,200 x 9,000 mm (47.2 x 354.3 in) and passes between two opposed Ø130 spindle heads.
One detail deserves attention on this model: the table load. It is 10,000 kg (22,046 lb), exactly as on the HKDB-130(1.2Mx7M), although the table is 2,000 mm longer. Spread along 9,000 mm (354.3 in), that is a light loading per metre. The machine is therefore meant for long parts of modest section, or for several shorter parts fixtured in a row and machined in one pass down the table.
The second use is where HNK's automatic pallet changer comes in. The maker says it eliminates machine idle time. A row of identical parts loaded outside the machine while the previous row is being cut makes good use of a table this long, and of two spindles cutting at once.
A 9,000 mm table is also offered with heavier spindles, as the HKDB-150(1.2Mx9M) with 37/45 kW (49.6/60.3 hp) motors. Here each head has 22/26 kW (29.5/34.9 hp), cont/30min, at 5 to 2,500 rpm with ISO No.50. Y travel is 2,000 mm (78.7 in), Z is 600 mm (23.6 in), and the spindle gap is 300 to 1,500 mm (11.8 to 59.1 in). Controls: Fanuc 31i-B, Siemens 840D.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,200 x 9,000 mm (47.2 x 354.3 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| X Axis Travel | 9,000 mm (354.3 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Spindle Heads | 2 |
| Distance Between Spindle Ends | 300 ~ 1,500 mm (11.8 ~ 59.1 in) |
| Distance Table Top to Spindle Center | +150 ~ +2,150 mm (+5.9 ~ +84.6 in) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø130 |
| Spindle Motor Power | 22/26 kW (29.5/34.9 hp) (cont/30min) |
| Spindle Speed Range | 5 ~ 2,500 rpm |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 9,000 mm (354.3 in) of X travel
- Long 1,200 x 9,000 mm (47.2 x 354.3 in) table suits rows of fixtured parts
- Two heads cutting at once at 5 to 2,500 rpm
- Spindle gap of 300 to 1,500 mm (11.8 to 59.1 in)
Limitations
- 10,000 kg (22,046 lb) table load is no higher than on the HKDB-130(1.2Mx7M)
- 22/26 kW (29.5/34.9 hp) spindles; the HKDB-150(1.2Mx9M) has 37/45 kW (49.6/60.3 hp)
- Needs a long floor area for a table that travels its own length
Best For
Frequently Asked Questions
01
10,000 kg (22,046 lb) in total. HNK lists the same figure for every HKDB table from the HKDB-130(1Mx7M) upward, so on this 9,000 mm (354.3 in) table the allowable load per metre is lower than on the shorter machines.
02
HNK's description of the HKDB series says an automatic pallet changer eliminates machine idle time. The specification table has no pallet rows, so the number and size of pallets for this model need to be confirmed with the maker.
03
Both have a 1,200 x 9,000 mm (47.2 x 354.3 in) table. The HKDB-150(1.2Mx9M) has Ø150 spindles, 37/45 kW (49.6/60.3 hp) motors and 5 to 2,000 rpm. The HKDB-130(1.2Mx9M) has Ø130 spindles, 22/26 kW (29.5/34.9 hp) and 5 to 2,500 rpm.
04
Spindle head vertical travel is 2,000 mm (78.7 in), with the spindle centre from +150 to +2,150 mm (+5.9 to +84.6 in) above the table top. Each head has 600 mm (23.6 in) of travel along the spindle axis.
More from HNK
Other CNC Boring Machines
Kuraki KBT-13A

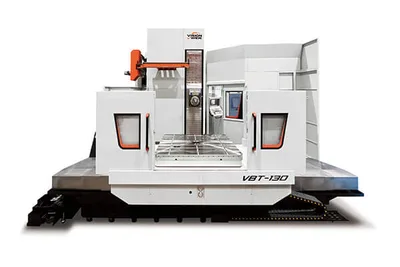

Vision Wide VBT-110-1618
