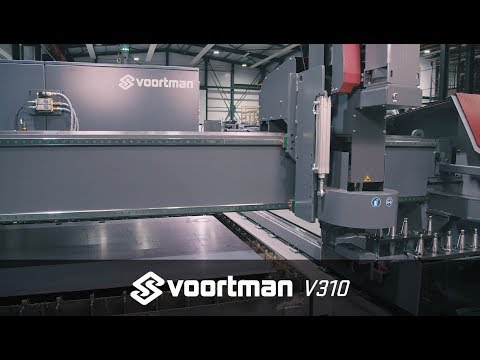

Voortman V310
Key Specifications
Tool Capacity
max cutting thickness
max plate thickness
hole capacity min
hole capacity max
max thread size
How much does the Voortman V310 cost?
Estimated price range
Our best estimate for a cnc boring machine in this class — not a quote from Voortman Steel Machinery. Configuration moves it a long way.
Overview
The Voortman V310 cuts plate with plasma and drills and taps it on the same machine: Voortman lists 50 mm of plasma cutting thickness in mild steel, holes from 5 mm (0.2") to 50 mm (2"), threads up to M30 and a tool capacity of 28.
The thickness figures need reading together. Plasma is rated to 50 mm in mild steel. Oxy-fuel is an option, and with it the cutting figure rises to 300 mm. Separately, the maximum plate thickness is given as 200 mm (7.9"). A buyer who plans to cut above 200 mm should ask Voortman how the oxy-fuel figure and the plate limit relate on the configuration being quoted.
On the drilling side the range is wide enough for most bolted connections in plate work. Holes start at 5 mm (0.2") and stop at 50 mm (2"); anything larger has to be cut thermally. Tapping goes to M30. With 28 tool positions, a spread of drill and tap sizes can stay loaded, so a nest with mixed hole sizes can be covered by the tools already on the machine.
Voortman's page gives no table size, weight, spindle power or connected load in the rows shown here. Those depend on the layout ordered and should come from the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| Max Cutting Thickness | 50 mm plasma (mild steel); oxy-fuel option to 300 mm |
| Tool Capacity | 28 |
| Max Plate Thickness | 200 mm (7.9") |
| Hole Capacity Min | 5 mm (0.2") |
| Hole Capacity Max | 50 mm (2") |
| Max Thread Size | M30 |
Specifications sourced from voortman.net — verified 2026-10-03
Strengths & Limitations
Strengths
- Plasma cutting to 50 mm in mild steel, with an oxy-fuel option listed to 300 mm
- Drills holes from 5 mm (0.2") to 50 mm (2") and taps threads up to M30
- A tool capacity of 28 keeps a spread of drill and tap sizes loaded
Limitations
- Oxy-fuel cutting is an option, not part of the base machine
- Holes above 50 mm (2") cannot be drilled and have to be cut thermally
- Thread size is limited to M30
Best For
Frequently Asked Questions
01
Voortman lists 50 mm for plasma in mild steel, and an oxy-fuel option that takes cutting to 300 mm. The maximum plate thickness row reads 200 mm (7.9"), so confirm with Voortman which limit applies to the configuration you are buying.
02
Hole capacity runs from 5 mm (0.2") to 50 mm (2"), and the maximum thread size is M30. Holes larger than 50 mm (2") are outside the drilling range and would be cut with the plasma or oxy-fuel torch instead.
03
The tool capacity is 28. That is enough to keep several drill diameters and tap sizes loaded together, which matters on nests where neighbouring parts call for different hole sizes.
