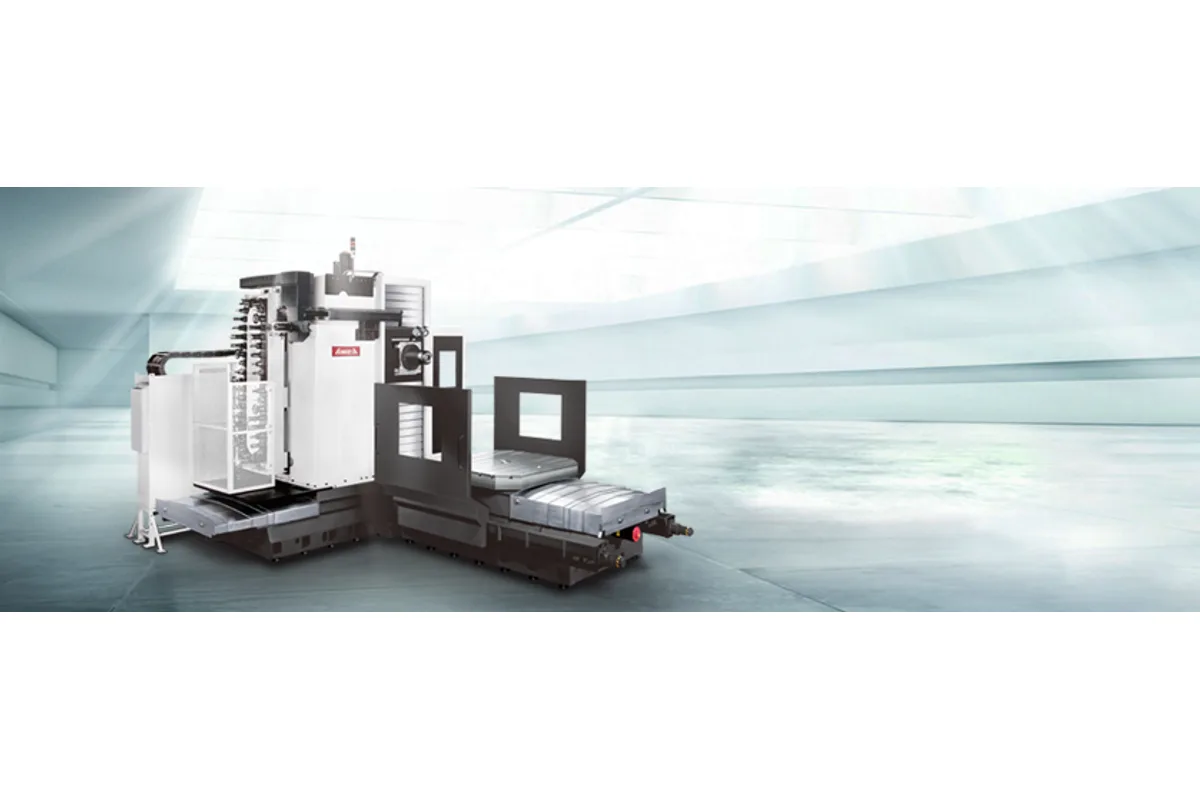

AWEA BL-2024S
Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the AWEA BL-2024S cost?
Price estimate
We do not have a price for the AWEA BL-2024S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AWEA BL-2024S is a quill-type horizontal boring mill whose vertical travel is longer than its bed: Y measures 2,400 mm (94.5 in) and X measures 2,000 mm (78.7 in). Z is 1,300 mm (51.2 in). The boring spindle is a Ø120 mm quill with 600 mm (23.6 in) of W travel.
That proportion suits parts that stand upright. Think of a tall housing or column clamped on the 1,600 x 1,800 mm (63.0 x 70.9 in) rotary table and bored on each face in turn. The B-axis uses a closed loop rotary encoder with 0.001˚ indexing resolution, so opposite bores can be reached by turning the part instead of re-clamping it. AWEA describes the table as an oil floating design with high damping and low friction.
Cutting data is that of every S model. Top speed is 2,400 rpm, and torque is 1,308 Nm (965 lb-ft) from a 22 / 26 kW (30 / 35 HP) motor through two gear steps. The taper is BT50.
Size-dependent figures: 31,500 kg (69,444 lb) of machine weight, 5,115 mm (201.4 in) of height, a 400 liter coolant tank. P= 0.016 mm and Ps= 0.012 mm are the VDI accuracy rows.
The same quill head on the lower column is the BL-2018S, with 1,800 mm (70.9 in) of Y and a lower weight of 30,000 kg (66,138 lb). On the table rating, AWEA's two pages differ: 15,000 kg (33,069 lb) in the specification table, 12,000 kg standard with 15,000 kg optional in the feature text.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 2,400 mm (94.5 in) |
| Z Axis Travel | 1,300 mm (51.2 in) |
| W Axis Travel | 600 mm (23.6 in) |
| Table Size | 1,600 x 1,800 mm (63.0 x 70.9 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Distance Spindle Nose to Table | 885 mm (34.8 in) |
| Boring Spindle Size | Quill with Ø120 mm |
| Spindle Motor Power | 22 / 26 kW (30 / 35 HP) |
| Max Spindle Speed | 2,400 rpm |
| Spindle Torque | 1,308 Nm (965 lb-ft) |
| Spindle Taper | BT50 |
| Rapid Traverse Xyz | 12,000 mm/min (472 ipm) |
| Rapid Traverse W | 5,000 mm/min (197 ipm) |
| Cutting Feed Rate | 1 ~ 5,000 mm/min (0.04 ~ 197 ipm) |
| Tool Capacity | 40T |
| Max Tool Diameter (full magazine) | Ø125 / Ø250 mm (Ø4.9 / Ø9.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Positioning Accuracy Jis B 6338 | ± 0.01 mm / Full Travel |
| Positioning Accuracy VDI 3441 | P= 0.016 mm / Full Travel |
| Repeatability Jis B 6338 | ± 0.003 mm |
| Repeatability VDI 3441 | Ps= 0.012 mm |
| Power Requirement | 70 kVA, 220±10%, 3 phase, 50 / 60 Hz |
| Air Pressure Requirement | 5 ~ 8 (5) kg/cm² |
| Lubrication Tank Capacity | 4.6 liter |
| Coolant Tank Capacity | 400 liter |
| Machine Weight | 31,500 kg (69,444 lb) |
| Machine Height | 5,115 mm (201.4 in) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,400 mm (94.5 in) of Y for upright parts on a short bed
- B-axis with closed loop rotary encoder and 0.001˚ indexing resolution
- Oil floating rotary table of 1,600 x 1,800 mm (63.0 x 70.9 in)
- 1,308 Nm (965 lb-ft) gear spindle with a Ø120 mm quill
- Tightest VDI rows of the tall-column models: P= 0.016 mm, Ps= 0.012 mm
Limitations
- 2,000 mm (78.7 in) of X limits part length
- Top speed of 2,400 rpm, so small tools run below their best cutting speed
- 5,115 mm (201.4 in) high, against 4,515 mm (177.8 in) for the BL-2018S
- Feature page and spec table disagree on whether the 15,000 kg (33,069 lb) table load is standard
Best For
Frequently Asked Questions
01
A rotary table of 1,600 x 1,800 mm (63.0 x 70.9 in). AWEA describes a high damping, low friction oil floating design on a fully supporting base. The B-axis has closed loop feedback from a rotary encoder with an indexing resolution of 0.001˚.
02
The specification table says 15,000 kg (33,069 lb). The feature page says the maximum is 12,000 kg, with 15,000 kg as an option. Because the two differ, confirm the rating of the quoted machine with AWEA before planning heavy parts.
03
Decide by part height. The BL-2024S has 2,400 mm (94.5 in) of Y and is 5,115 mm (201.4 in) high. The BL-2018S has 1,800 mm (70.9 in) of Y, is 4,515 mm (177.8 in) high and weighs 30,000 kg (66,138 lb) against 31,500 kg (69,444 lb). Everything else in the two tables matches.
04
BT50, at up to 2,400 rpm. The spindle is a quill type with a 2-step gear box, and its torque is 1,308 Nm (965 lb-ft) from a 22 / 26 kW (30 / 35 HP) motor.
