Komo Xtreme 5-Axis

Specs verified 2026-10-05 · komo.com Updated 2026-10-05

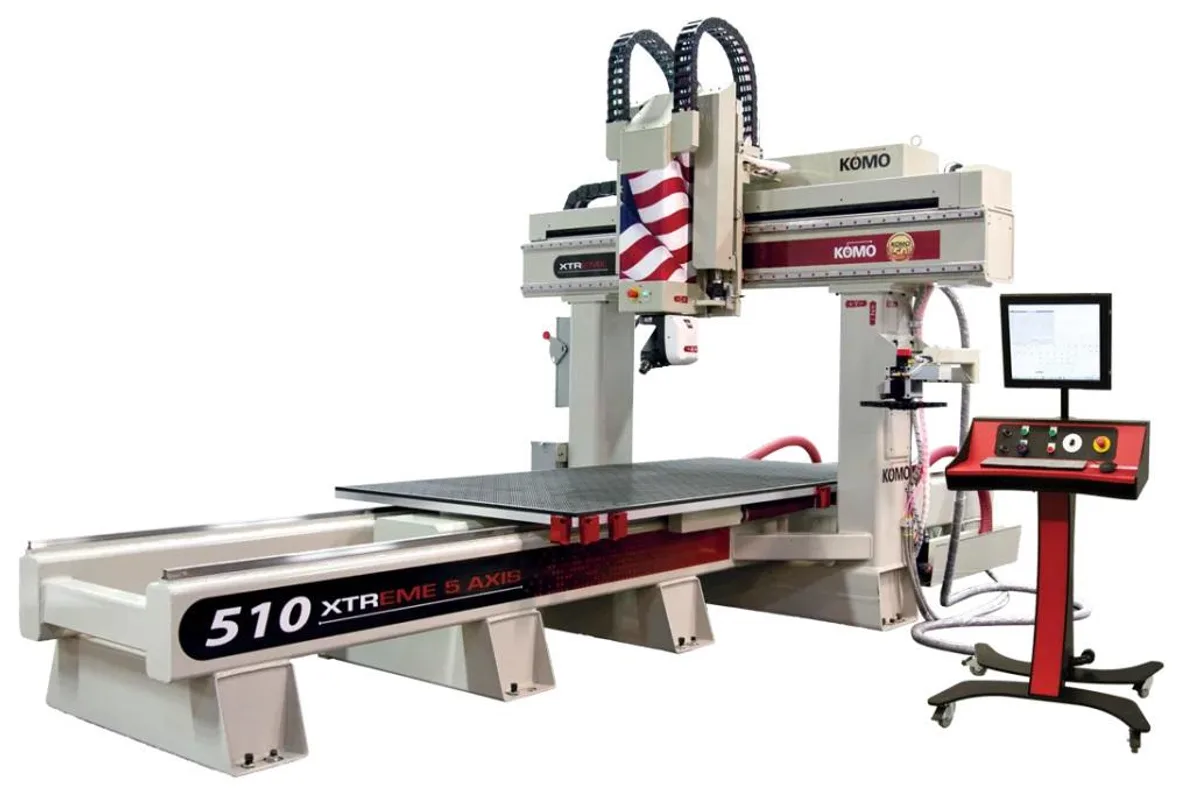

Image: komo.com, Komo

Key Specifications

Max Spindle

Up to 24,000 rpm, fully programmable

Spindle Taper

HSK 63F

Tool Capacity

12 tools standard. Max 24 tools with a second optional 12 station tool changer

Table Size

508: 60 in x 96 in (1,524 mm x 2,438 mm); 510: 60 in x 120 in (1,524 mm x 3,048 mm); 512: 60 in x 144 in (1,524 mm x 3,658 mm)

Spindle Power

13.4 hp (10 kW), four-pole, liquid cooled

spindle quantity

One (1) Hiteco or HSD spindle

How much does the Komo Xtreme 5-Axis cost?

Price estimate

Uncertain

We do not have a price for the Komo Xtreme 5-Axis that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Komo Xtreme 5-Axis puts a tilting, rotating head on the Xtreme moving table frame and raises Z travel from the 10 in (254 mm) of the Xtreme XL to 24 in (610 mm). It is Komo's lightest five-axis router, recommended for wood, plastics and composites.

A five-axis head on a router is mostly a trimming and profiling tool, and the spindle is sized accordingly: 13.4 hp (10 kW), four-pole and liquid cooled, with an HSK 63F taper and up to 24,000 rpm. The A and C axes move at 74.4°/sec. For parts that need the head to keep turning in one direction, such as a continuous trim around a formed shell, Komo lists a C distributor, a rotary distributor that lets the C axis rotate without unwinding.

Table sizes are the familiar 508, 510 and 512: 60 in x 96 in (1,524 mm x 2,438 mm), 60 in x 120 in (1,524 mm x 3,048 mm) and 60 in x 144 in (1,524 mm x 3,658 mm). X travel is 110 in (2,794 mm), 134 in (3,404 mm) or 158 in (4,013 mm), slightly less than the three-axis machine on the same tables, and Y is 84 in (2,134 mm). On the 510 and 512 Komo notes 36 in (914 mm) of Z as an option.

Linear traverse is 3,150 ipm (80 m/min) in X, 2,300 ipm (58.5 m/min) in Y and 1,200 ipm (30.5 m/min) in Z, with 130 in/sec² acceleration. The changer holds 12 tools, or 24 with a second optional 12 station unit, and tools may be up to 5 in (127 mm) long. That length limit deserves a look, because five-axis trimming often calls for long-reach cutters.

Full Specifications

Parameter	Value
Spindle Motor Power	13.4 hp (10 kW), four-pole, liquid cooled
Max Spindle Speed	Up to 24,000 rpm, fully programmable
Spindle Taper	HSK 63F
Spindle Quantity	One (1) Hiteco or HSD spindle
Table Size	508: 60 in x 96 in (1,524 mm x 2,438 mm); 510: 60 in x 120 in (1,524 mm x 3,048 mm); 512: 60 in x 144 in (1,524 mm x 3,658 mm)
Tool Capacity	12 tools standard. Max 24 tools with a second optional 12 station tool changer
Max Tool Diameter (full magazine)	3.25 in (82 mm) positions full; 6.5 in (165 mm) adjacent positions empty
Max Tool Weight	12 lbs each / 80 lbs total (5.4 kg / 36.4 kg)
Max Tool Length	5 in (127 mm)
Feed Rate Traverse X	3,150 ipm (80 m/min)
Feed Rate Traverse Y	2,300 ipm (58.5 m/min)
Feed Rate Traverse Z	1,200 ipm (30.5 m/min)
Acceleration Deceleration	130 in/sec²
Feed Rate A C Axes	74.4°/sec
Axis Travels	508: 110 in (2,794 mm) x 84 in (2,134 mm) x 24 in (610 mm); 510: 134 in (3,404 mm) x 84 in (2,134 mm) x 24 in (610 mm). Note: 36 in (914 mm) Optional; 512: 158 in (4,013 mm) x 84 in (2,134 mm) x 24 in (610 mm) Note: 36 in (914 mm) Optional
CNC Control	FANUC Controls with integrated PC and 19 in touch screen display

Specifications sourced from komo.com — verified 2026-10-05

Strengths & Limitations

Strengths

24 in (610 mm) of Z travel, with 36 in (914 mm) optional on the 510 and 512
Liquid-cooled 13.4 hp (10 kW) HSK 63F spindle running up to 24,000 rpm
A and C axes at 74.4°/sec, with an optional C distributor for continuous rotation
Linear traverse of 3,150 ipm (80 m/min) in X and 130 in/sec² acceleration
12 tools as standard and 24 with a second optional 12 station tool changer

Limitations

At 13.4 hp (10 kW) the spindle is the smaller choice next to the 20 hp (15 kW) of the Fusion 5-Axis
Maximum tool length in the changer is 5 in (127 mm)
Komo's table gives no A or C axis rotation range for this model
The 36 in (914 mm) Z option is noted for the 510 and 512 only, not the 508
Recommended by Komo for wood, plastics and composites; aluminum is not on the list

Best For

Trimming thermoformed plastic and composite parts Five-axis profiling of wood components Three-dimensional parts up to the 24 in (610 mm) Z travel Shops adding five-axis capacity on a 60 in (1,524 mm) wide table

Frequently Asked Questions

01 How much Z travel does the Xtreme 5-Axis have?

24 in (610 mm) on all three sizes. For the 510 and the 512 Komo's table adds a note that 36 in (914 mm) is optional. By comparison the three-axis Xtreme XL on the same tables has 10 in (254 mm), so most of the extra height is there to give the tilted head room over a formed part.

02 What spindle and head speeds does it have?

One Hiteco or HSD spindle rated 13.4 hp (10 kW), four-pole and liquid cooled, with an HSK 63F taper and up to 24,000 rpm, fully programmable. The A and C axes are listed at 74.4°/sec. Linear axes traverse at 3,150 ipm (80 m/min) in X, 2,300 ipm (58.5 m/min) in Y and 1,200 ipm (30.5 m/min) in Z.

03 What is the C distributor option?

Komo describes it as a rotary distributor that allows the C axis to rotate continuously without unwinding. Without it the head has to turn back after a set amount of rotation, which interrupts a cut that runs all the way around a part.

04 How does the Xtreme 5-Axis compare with the Fusion XL 5-Axis?

Komo places the Fusion XL 5-Axis between this machine and the Fusion 5-Axis. The Fusion XL 5-Axis has an 18.10 hp (13.5 kW) spindle, a 15-tool changer and an 11 in (280 mm) tool length limit, and Komo adds aluminum to its recommended materials. The Xtreme 5-Axis has a 13.4 hp (10 kW) spindle, 12 tools and a 5 in (127 mm) tool length limit.
