Juaristi ML

Specs verified 2026-10-05 · juaristi.com Updated 2026-10-05

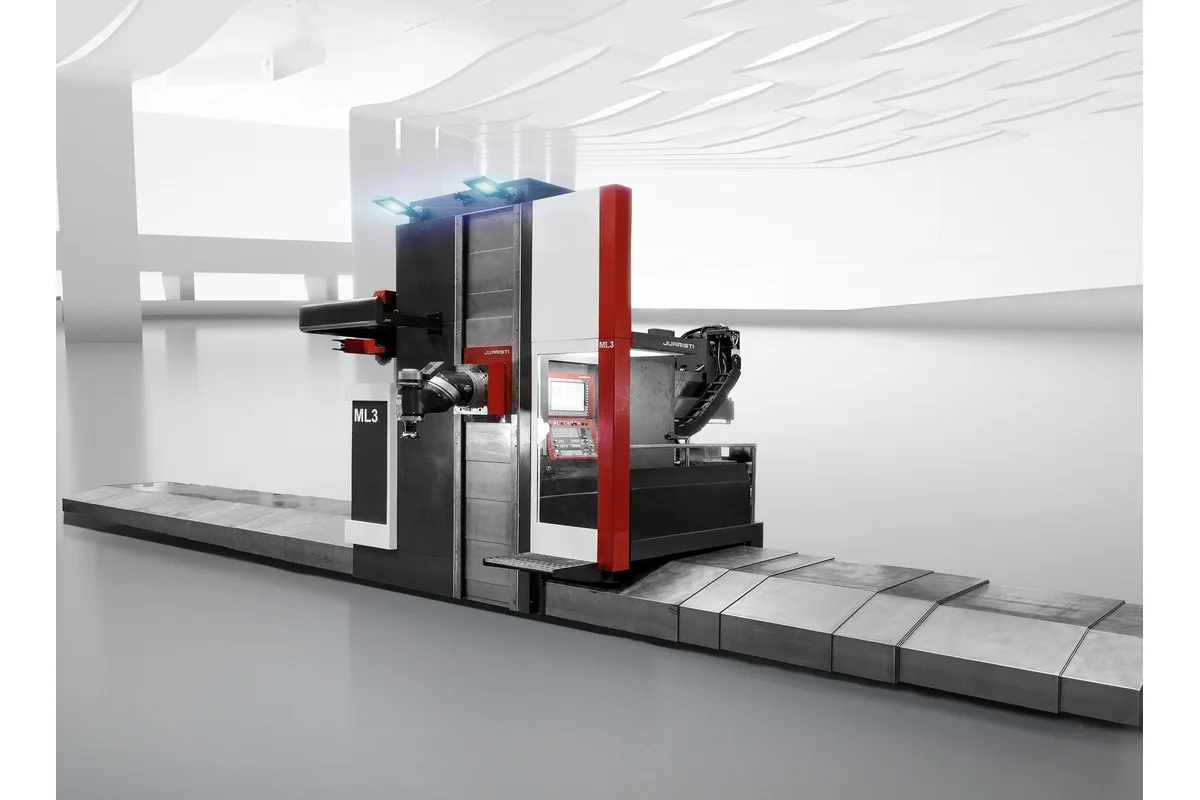

Image: juaristi.com, Juaristi

Key Specifications

Max Spindle

6,000 min-1

Spindle Power

40 kW (53.6 hp)

x axis travel

4,000 + N x 1,000 mm

y axis travel

1,500 + N x 500 …. 3,000 mm

z axis travel

1,300 mm (51.2 in)

ram section

460 x 520 mm (18.1 x 20.5 in)

How much does the Juaristi ML cost?

Price estimate

Uncertain

We do not have a price for the Juaristi ML that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Juaristi ML is a floor type universal milling machine with a travelling column, the compact member of Juaristi's floor type range: vertical travel from 1,500 mm to 3,000 mm in 500 mm steps, a RAM stroke of 1,300 mm (51.2 in) and a single 40 kW (53.6 hp) head rating.

Unlike the larger floor type columns, every spindle row here is one number. Power is 40 kW, speed 6,000 min-1, torque 1,400 Nm (1,033 lb-ft). There is no heavier head to option up to in the table, which makes the ML easy to compare and easy to outgrow. Shops that expect regular heavy roughing in steel should read those three figures as the ceiling.

Where it scores is movement. Quick feeds are 40 m/min on X, Y and Z, and the bed grows in 1,000 mm sections from a 4,000 mm base, finer than the 2,000 mm sections of the MX5. The RAM has a 460 x 520 mm section, and Juaristi describes its guiding as dual, linear and hydrostatic.

Configuration is broad for a machine of this size. The maker lists a 200 x 550 horizontal head and universal heads indexing down to 0.001º, rotary tables from 8 to 100 tonnes for milling and turning, an automatic head calibration cycle, and a tool changer for 30-120 tools. Two columns can also work in a mirrored position on one job. A row labelled "Number of series" carries the value 2; the page does not explain it.

Full Specifications

Parameter	Value
X Axis Travel	4,000 + N x 1,000 mm
Y Axis Travel	1,500 + N x 500 …. 3,000 mm
Z Axis Travel	1,300 mm (51.2 in)
Ram Section	460 x 520 mm (18.1 x 20.5 in)
Fixed Horizontal Head	D 200 x L 550 mm
Universal Head 45 Indexing	1ºx1º – 0.001ºx0.001º
Spindle Motor Power	40 kW (53.6 hp)
Max Spindle Speed	6,000 min-1
Spindle Torque	1,400 Nm (1,033 lb-ft)
Number of Series	2
Rapid Traverse Xyz	40 m/min

Specifications sourced from juaristi.com — verified 2026-10-05

Strengths & Limitations

Strengths

Quick feeds of 40 m/min on X, Y and Z
Bed length in 1,000 mm steps from 4,000 mm
Single, unambiguous spindle rating: 40 kW, 1,400 Nm, 6,000 min-1
Dual RAM guiding, linear and hydrostatic, on a 460 x 520 mm RAM
Automatic Head Calibration and a 30-120 tool changer are in the maker's feature list

Limitations

Vertical travel ends at 3,000 mm
RAM stroke of 1,300 mm limits reach into deep parts
Only one power level, 40 kW, with no stronger head in the table
The row labelled "Number of series" is not explained on the page

Best For

General milling of parts up to 3 metres high Shops moving up from bed mills to a floor type column Paired columns working in mirrored position Combined milling and turning on a lathe table

Frequently Asked Questions

01 What size is the Juaristi ML?

X is 4,000 mm plus N x 1,000 mm, Y runs from 1,500 mm in 500 mm steps to 3,000 mm, and Z, the cross RAM stroke, is 1,300 mm (51.2 in). The RAM section is 460 x 520 mm.

02 What spindle does the ML have?

The table lists head power of 40 kW (53.6 hp), a rotation speed of 6,000 min-1 and torque of 1,400 Nm. A fixed horizontal head of D 200 x L 550 mm and a 45º universal automatic head with 1º or 0.001º indexing are both listed.

03 Can the ML do turning?

Juaristi says it can be configured with milling and lathe tables, that the table has a double rotation system for turning and milling, and that milling and turning can be done with a single universal or orthogonal head. No turning speed or table diameter is given, so those need to be specified.

04 How does the ML differ from the MX5?

The ML is the smaller and simpler machine. Its Y travel ends at 3,000 mm and its RAM stroke is 1,300 mm, where the MX5 reaches 4,000 mm and 1,500 mm. The ML lists one head rating of 40 kW, the MX5 lists 40/46 kW. In feed the ML is quicker, at 40 m/min.
