Nicolas Correa NORMA MG

Specs verified 2026-10-05 · nicolascorrea.com Updated 2026-10-05

Image: nicolascorrea.com, Nicolas Correa

Key Specifications

Max Spindle

4,000 / 6,000 / 10,000 rpm

Spindle Taper

ISO-50 Big Plus / HSK-100

Table Size

1,250 x 1,250 / 1,600 x 1,250 / 1,600 x 1,600 / 2,000 x 1,600 / 2,000 x 2,000 mm

Spindle Power

24 - 33 - 30 kW

max table load

5 - 10 Tm

x axis travel

2,500 / 3,500 / 4,500 mm

How much does the Nicolas Correa NORMA MG cost?

Price estimate

Uncertain

We do not have a price for the Nicolas Correa NORMA MG that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

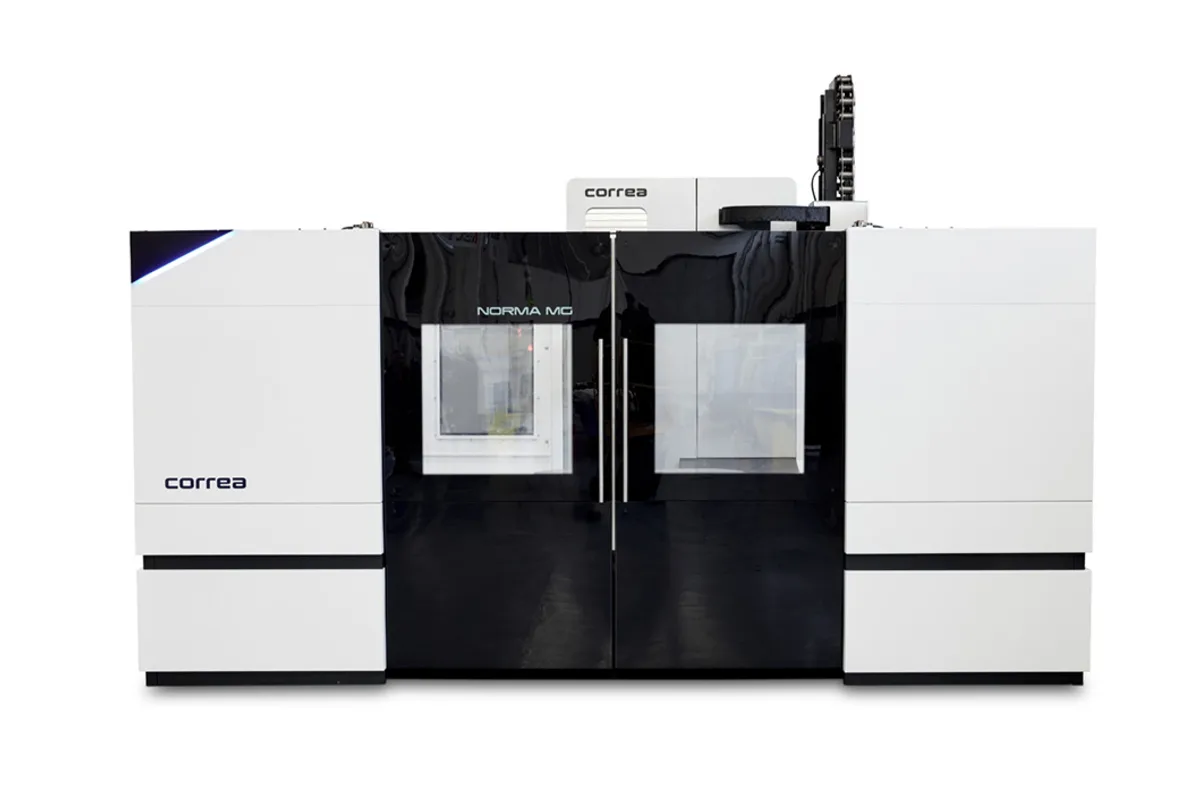

A rotary table built into the bed is what separates the Nicolas Correa NORMA MG from the other NORMA machines. It is a bed-type mill with a lateral ram, X travel of 2,500 / 3,500 / 4,500 mm, Y of 1,250 / 1,500 mm and Z of 1,500 / 2,000 mm, and the integrated rotary table is standard equipment, not an add-on bolted to a plain table.

Nicolas Correa describes the result as a machine with 4+2 axes: the linear axes and the table rotation, plus the two indexing axes of the automatic universal head. The table is integrated in the machine's kinematics, so a prismatic part can be turned to present each side to the spindle without re-clamping. Table sizes run from 1,250 x 1,250 mm to 2,000 x 2,000 mm, and the load is listed as 5 - 10 Tm.

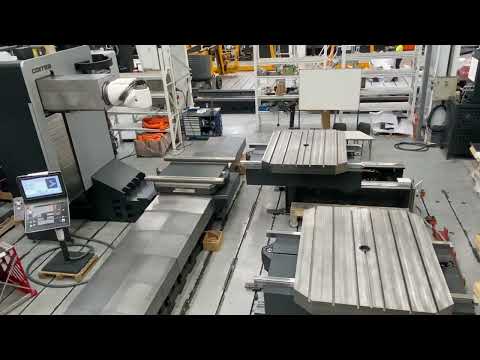

Turning is the second string. The maker states a maximum turning diameter of 2500 mm for circular milling on the rotary table, and offers a turning table for a diameter up to 2000 mm. An integrated turning plate and an automatic pallet changer are on the options list too, which moves the machine toward unattended work on families of medium-sized parts.

Spindle figures follow the NORMA pattern: 4,000 / 6,000 / 10,000 rpm, 24 - 33 - 30 kW and 840 - 990 - 620 Nm, with an ISO-50 Big Plus or HSK-100 taper and a gearbox as standard. Axis feed is 30 m/min throughout. Tool changers for 30, 40 and 60 tools are optional.

Full Specifications

Parameter	Value
Table Size	1,250 x 1,250 / 1,600 x 1,250 / 1,600 x 1,600 / 2,000 x 1,600 / 2,000 x 2,000 mm
Max Table Load	5 - 10 Tm
X Axis Travel	2,500 / 3,500 / 4,500 mm
Y Axis Travel	1,250 / 1,500 mm
Z Axis Travel	1,500 / 2,000 mm
Max Feed X	30 m/min
Max Feed Y	30 m/min
Max Feed Z	30 m/min
Spindle Taper	ISO-50 Big Plus / HSK-100
Max Spindle Speed	4,000 / 6,000 / 10,000 rpm
Spindle Motor Power	24 - 33 - 30 kW
Spindle Torque	840 - 990 - 620 Nm

Specifications sourced from nicolascorrea.com — verified 2026-10-05

Strengths & Limitations

Strengths

Integrated rotary table is standard equipment and part of the machine's kinematics
4+2 axes with the automatic universal head, for multi-face work in one clamping
Table sizes from 1,250 x 1,250 mm to 2,000 x 2,000 mm with a load of 5 - 10 Tm
Optional turning table for a diameter up to 2000 mm, and an optional automatic pallet changer
30 m/min feed in X, Y and Z

Limitations

X travel stops at 4,500 mm; longer parts belong on the travelling column NORMA L
Maximum power of 33 kW and torque of 990 Nm are modest for heavy roughing in steel
Turning table, turning plate and pallet changer are options
The tool changer (30, 40 and 60 tools) is not part of the standard machine

Best For

Prismatic parts machined on several faces in one clamping Housings and gearbox cases on tables up to 2,000 x 2,000 mm Circular milling on the integrated rotary table Combined milling and turning with the optional turning table

Frequently Asked Questions

01 What does 4+2 axes mean on the NORMA MG?

Nicolas Correa uses the term for the three linear axes and the integrated rotary table, plus the two axes of its indexed milling head. The rotary table is integrated in the machine's kinematics, and the head is the maker's patented indexing type.

02 What table sizes are available on the NORMA MG?

Five are listed: 1,250 x 1,250, 1,600 x 1,250, 1,600 x 1,600, 2,000 x 1,600 and 2,000 x 2,000 mm. Maximum load on the table is given as 5 - 10 Tm, depending on the table chosen. X travel is 2,500 / 3,500 / 4,500 mm.

03 Can the NORMA MG turn as well as mill?

With options, yes. The standard rotary table is for milling, including circular milling, with a stated maximum turning diameter of 2500 mm. A turning table for a diameter up to 2000 mm and an integrated turning plate are listed as optional equipment.

04 Which spindle does the NORMA MG use?

The table lists programmable speeds of 4,000 / 6,000 / 10,000 rpm, maximum power of 24 - 33 - 30 kW and maximum torque of 840 - 990 - 620 Nm. The taper is ISO-50 Big Plus or HSK-100, and a gearbox is included in the standard equipment.
