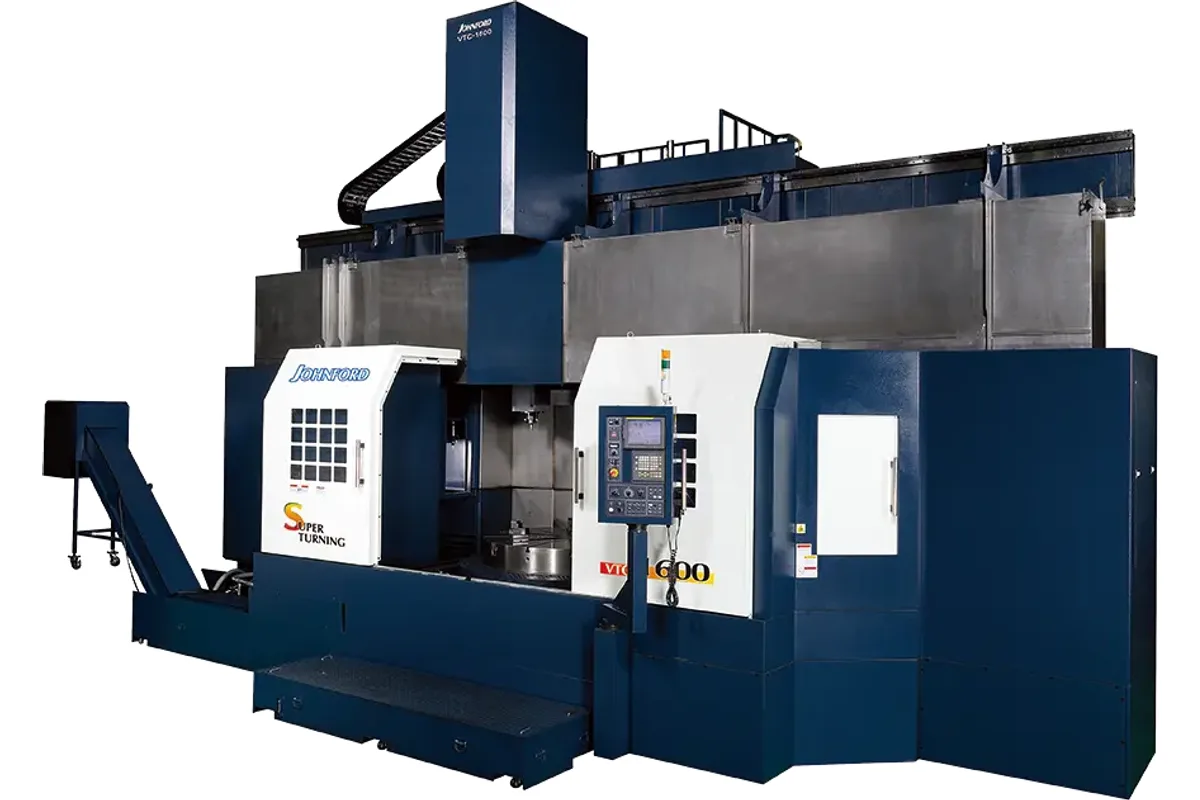

Johnford VTC-1600ATC
Image: johnford.com.tw, Johnford
Key Specifications
Tool Capacity
Spindle Power
max swing diameter
max turning diameter
max turning height
table diameter
How much does the Johnford VTC-1600ATC cost?
Price estimate
We do not have a price for the Johnford VTC-1600ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two metres of turning diameter is the headline of the Johnford VTC-1600ATC: Ø2,000 mm (Ø78.7 in) of swing over a Ø1,600 mm (Ø63 in) table that carries 8,000 kg (17,600 lb). It is the largest model of the lighter VTC group, the last one before machine weight more than doubles.
That grouping is visible in the maker's table. The VTC-1600ATC weighs 33,000 kg (72,600 lb) and uses a 250 x 250 mm (9.8 x 9.8 in) ram, like the three smaller table-type models. The VTC-2000ATC, one step up, weighs 72,000 kg (158,400 lb). So this is as much diameter as Johnford offers on the lighter structure, and the installation stays manageable: 6,410 x 6,140 x 5,880 mm (252.4 x 241.7 x 231.5 in).
Drive and height come from the VTC-1200ATC. The motor is 37 / 45 kW (49.6 / 60.3 hp), with 45 / 55 kW (60.3 / 73.8 hp) optional, and turning height is 1,250 mm (49.2 in). Torque is higher, 16,204 Nm (11,952 lb-ft), and table speed lower, 2-250 rpm, as a larger diameter requires.
Cross travel is 1,370 mm (53.9 in), which takes the ram from the table centre out past the largest radius. Z is 900 mm (35.4 in) and the cross rail moves 800 mm (31.5 in).
For a shop, the question is usually part weight. Eight tonnes covers most rings, flanges and gear blanks of two metres. A solid forging or a thick-walled casing of that diameter can weigh more, and then the 10,000 kg (22,000 lb) table of the VTC-2000ATC is the safer choice.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø2,000 mm (Ø78.7 in) |
| Max Turning Diameter | Ø2,000 mm (Ø78.7 in) |
| Max Turning Height | 1,250 mm (49.2 in) |
| Table Diameter | Ø1,600 mm (Ø63 in) |
| Max Table Load | 8,000 kg (17,600 lb) |
| X Axis Travel | 1,370 mm (53.9 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| W Axis Travel | 800 mm (31.5 in) |
| Table Speed | 2-250 rpm |
| Spindle Speed Steps | Auto Hi-Lo |
| Spindle Torque | 16,204 Nm (11,952 lb-ft) |
| Power Spindle Speed Optional | 2-2,400 rpm |
| Rapid Traverse Xz | 12 / 10 m/min (472 / 394 ipm) |
| Tool Capacity | ATC type: 12 (Std.); 16, 24, 40, 60 (Opt.) |
| Tool Shank | 7 / 24 taper BT-50 |
| Max Tool Size ATC | 300W x 155T x 500L (mm) |
| Max Tool Weight | 50 kg (110 lb) |
| Max ATC Load | 350 kg (770 lb) |
| Tool Change Time | 30 sec |
| Square Tool Holder Size | □32 x □32 (Ø60) (mm) |
| Ram Cross Section | 250 x 250 mm (9.8 x 9.8 in) |
| Spindle Motor Power | 37 / 45 kW (49.6 / 60.3 hp) Std. (45 / 55 kW (60.3 / 73.8 hp) Opt.) |
| Power Spindle Motor Optional | 11 / 15 kW (14.8 / 20.1 hp) (Std.); 15 / 18.5 kW (20.1 / 24.8 hp) (Opt.) |
| Axis Servo Motors Xz | 7 / 7 kW |
| Cf Axis Motor Optional | 3 kW |
| Coolant Pump Motor | 0.98 kW |
| Cross Rail Motor | 7.5 kW |
| Hydraulic Motor | 3.8 kW |
| Machine Weight | 33,000 kg (72,600 lb) |
| Machine Dimensions | 6,410 x 6,140 x 5,880 mm (252.4 x 241.7 x 231.5 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Turns Ø2,000 mm (Ø78.7 in) on a machine of 33,000 kg (72,600 lb)
- 8,000 kg (17,600 lb) table load on a Ø1,600 mm (Ø63 in) table
- 16,204 Nm (11,952 lb-ft) of maximum spindle torque
- 1,250 mm (49.2 in) turning height with 800 mm (31.5 in) of cross rail travel
- Optional 45 / 55 kW (60.3 / 73.8 hp) table motor
Limitations
- Table speed of 2-250 rpm limits surface speed on small diameters
- 250 x 250 mm (9.8 x 9.8 in) ram, where the VTC-2000ATC has 300 x 300 mm (12 x 12 in)
- Heavy solid parts of this diameter can exceed 8,000 kg (17,600 lb)
- Each tool change through the ATC takes 30 sec
Best For
Frequently Asked Questions
01
Ø2,000 mm (Ø78.7 in), both as maximum swing and as maximum turning diameter. The work table itself measures Ø1,600 mm (Ø63 in) and the X axis travels 1,370 mm (53.9 in).
02
The maximum table load is 8,000 kg (17,600 lb). The VTC-1200ATC is rated 5,000 kg (11,000 lb) and the VTC-2000ATC 10,000 kg (22,000 lb).
03
A 37 / 45 kW (49.6 / 60.3 hp) motor as standard, or 45 / 55 kW (60.3 / 73.8 hp) as an option, with automatic Hi-Lo speed steps. Table speed is 2-250 rpm and maximum torque is 16,204 Nm (11,952 lb-ft).
04
The accessory list for the VTC series includes Johnford-made manual steady rests, hydraulic steady rests, and an independent boring bar system on the lower guideways as options. Which of them suit this model should be confirmed with the maker.
More from Johnford
Other CNC Lathes / Turning Centers

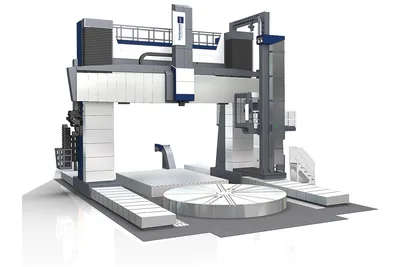

TOS Kuřim SKDY-D
