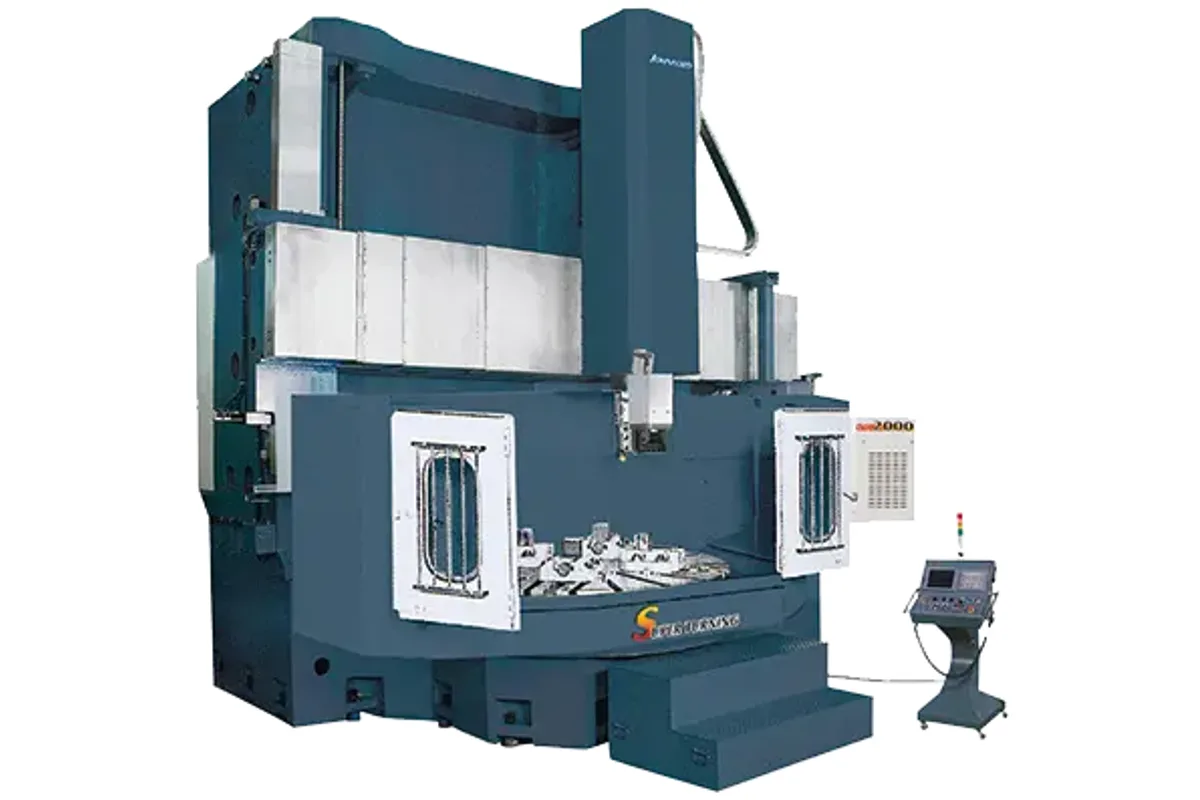

Johnford VTC-2000ATC
Image: johnford.com.tw, Johnford
Key Specifications
Tool Capacity
Spindle Power
max swing diameter
max turning diameter
max turning height
table diameter
How much does the Johnford VTC-2000ATC cost?
Price estimate
We do not have a price for the Johnford VTC-2000ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With the VTC-2000ATC, Johnford's vertical turning centers change weight class. The machine weighs 72,000 kg (158,400 lb), the ram grows to 300 x 300 mm (12 x 12 in), and maximum spindle torque reaches 44,556 Nm (32,865 lb-ft). It turns Ø2,500 mm (Ø98.4 in) on a Ø2,000 mm (Ø78.7 in) table.
Compare the torque with the model below. The VTC-1600ATC delivers 16,204 Nm (11,952 lb-ft). Nearly three times that figure at the table means the 2000 can take a deep roughing cut at a radius of more than a metre, where cutting force is multiplied by a long lever arm. The motor is 45 / 55 kW (60.3 / 73.8 hp), and 60 / 75 kW (80.5 / 100.6 hp) can be ordered.
The working envelope grows in every direction. Turning height is 1,600 mm (63 in). The ram travels 1,000 mm (39.3 in), the cross rail 1,000 mm (39.4 in) and the X axis 1,685 mm (66.3 in). The table takes 10,000 kg (22,000 lb) and runs at 2-160 rpm.
A heavier ram also changes what the optional live spindle can do. The power spindle is rated 2-2,400 rpm, and on this size the optional CF axis motor is 4 kW, so drilling and milling on large flanges are done against a stiffer structure than on the smaller models.
Plan the site early. The machine occupies 8,500 x 7,570 x 6,860 mm (334.6 x 298 x 270.1 in). The foundation has to be designed for the weight before the machine arrives.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø2,500 mm (Ø98.4 in) |
| Max Turning Diameter | Ø2,500 mm (Ø98.4 in) |
| Max Turning Height | 1,600 mm (63 in) |
| Table Diameter | Ø2,000 mm (Ø78.7 in) |
| Max Table Load | 10,000 kg (22,000 lb) |
| X Axis Travel | 1,685 mm (66.3 in) |
| Z Axis Travel | 1,000 mm (39.3 in) |
| W Axis Travel | 1,000 mm (39.4 in) |
| Table Speed | 2-160 rpm |
| Spindle Speed Steps | Auto Hi-Lo |
| Spindle Torque | 44,556 Nm (32,865 lb-ft) |
| Power Spindle Speed Optional | 2-2,400 rpm |
| Rapid Traverse Xz | 12 / 10 m/min (472 / 394 ipm) |
| Tool Capacity | ATC type: 12 (Std.); 16, 24, 40, 60 (Opt.) |
| Tool Shank | 7 / 24 taper BT-50 |
| Max Tool Size ATC | 300W x 155T x 500L (mm) |
| Max Tool Weight | 50 kg (110 lb) |
| Max ATC Load | 350 kg (770 lb) |
| Tool Change Time | 30 sec |
| Square Tool Holder Size | □32 x □32 (Ø60) (mm) |
| Ram Cross Section | 300 x 300 mm (12 x 12 in) |
| Spindle Motor Power | 45 / 55 kW (60.3 / 73.8 hp) Std. (60 / 75 kW (80.5 / 100.6 hp) Opt.) |
| Power Spindle Motor Optional | 11 / 15 kW (14.8 / 20.1 hp) (Std.); 15 / 18.5 kW (20.1 / 24.8 hp) (Opt.) |
| Axis Servo Motors Xz | 7 / 7 kW |
| Cf Axis Motor Optional | 4 kW |
| Coolant Pump Motor | 0.98 kW |
| Cross Rail Motor | 7.5 kW |
| Hydraulic Motor | 3.8 kW |
| Machine Weight | 72,000 kg (158,400 lb) |
| Machine Dimensions | 8,500 x 7,570 x 6,860 mm (334.6 x 298 x 270.1 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 44,556 Nm (32,865 lb-ft) of maximum spindle torque
- 300 x 300 mm (12 x 12 in) ram in a 72,000 kg (158,400 lb) machine
- Turns Ø2,500 mm (Ø98.4 in) and 1,600 mm (63 in) high
- 10,000 kg (22,000 lb) table load
- 60 / 75 kW (80.5 / 100.6 hp) table motor available as an option
Limitations
- Table speed of 2-160 rpm, too slow for finishing small diameters at full surface speed
- 8,500 x 7,570 mm (334.6 x 298 in) footprint and 6,860 mm (270.1 in) height
- 10,000 kg (22,000 lb) is only a quarter more than the load of the VTC-1600ATC
- 12 tools as standard; larger magazines are options
Best For
Frequently Asked Questions
01
The table shows a larger structure throughout: 72,000 kg (158,400 lb) against the 33,000 kg (72,600 lb) of the VTC-1600ATC, a ram section of 300 x 300 mm (12 x 12 in) and a torque of 44,556 Nm (32,865 lb-ft). The maker's page gives the figures without further explanation.
02
Maximum swing and turning diameter Ø2,500 mm (Ø98.4 in), maximum turning height 1,600 mm (63 in), table Ø2,000 mm (Ø78.7 in), maximum table load 10,000 kg (22,000 lb).
03
The table motor is 45 / 55 kW (60.3 / 73.8 hp) as standard and 60 / 75 kW (80.5 / 100.6 hp) as an option. The optional power spindle for milling has an 11 / 15 kW (14.8 / 20.1 hp) motor, or 15 / 18.5 kW (20.1 / 24.8 hp).
04
30 sec. The ATC holds 12 BT-50 tools as standard, with 16, 24, 40 or 60 as options, and handles tools up to 300W x 155T x 500L (mm) and 50 kg (110 lb).
