Johnford VTC-1000ATC
Key Specifications
Tool Capacity
Spindle Power
max swing diameter
max turning diameter
max turning height
table diameter
How much does the Johnford VTC-1000ATC cost?
Price estimate
We do not have a price for the Johnford VTC-1000ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Torque is where the Johnford VTC-1000ATC separates itself from the model below it. Maximum spindle torque is 10,049 Nm (7,412 lb-ft), close to three times the 3,455 Nm (2,548 lb-ft) of the VTC-800ATC, although the two machines share one outline of 5,590 x 5,555 x 5,525 mm (220 x 218.7 x 217.5 in).
The turning figures are a size larger as well. The table is Ø1,000 mm (Ø39.4 in), maximum turning diameter Ø1,200 mm (Ø47.2 in), and the table load doubles to 4,000 kg (8,800 lb). Table speed is 2-650 rpm. A 30 / 37 kW (40.2 / 49.6 hp) motor is standard and 37 / 45 kW (49.6 / 60.3 hp) is optional.
What this adds up to is a vertical lathe for heavy interrupted cuts on medium-diameter parts. Cast pump housings, forged rings with scale, valve bodies in stainless or duplex steel: the cut is slow and the insert is large, and the machine needs torque at low table speed more than it needs rpm. The 250 x 250 mm (9.8 x 9.8 in) ram and the box ways on all axes are there to carry that load.
Ram travel is 900 mm (35.4 in), cross travel 970 mm (38.2 in), and the cross rail adjusts by 400 mm (15.7 in). Turning height is 800 mm (31.5 in), the same as on the smaller model, so tall parts push a buyer toward the VTC-1200ATC with its 1,250 mm (49.2 in). Tools come from a 12-tool ATC and may weigh 50 kg (110 lb). The machine weighs 25,000 kg (55,000 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø1,200 mm (Ø47.2 in) |
| Max Turning Diameter | Ø1,200 mm (Ø47.2 in) |
| Max Turning Height | 800 mm (31.5 in) |
| Table Diameter | Ø1,000 mm (Ø39.4 in) |
| Max Table Load | 4,000 kg (8,800 lb) |
| X Axis Travel | 970 mm (38.2 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| W Axis Travel | 400 mm (15.7 in) |
| Table Speed | 2-650 rpm |
| Spindle Speed Steps | Auto Hi-Lo |
| Spindle Torque | 10,049 Nm (7,412 lb-ft) |
| Power Spindle Speed Optional | 2-2,400 rpm |
| Rapid Traverse Xz | 12 / 10 m/min (472 / 394 ipm) |
| Tool Capacity | ATC type: 12 (Std.); 16, 24, 40, 60 (Opt.) |
| Tool Shank | 7 / 24 taper BT-50 |
| Max Tool Size ATC | 300W x 155T x 500L (mm) |
| Max Tool Weight | 50 kg (110 lb) |
| Max ATC Load | 350 kg (770 lb) |
| Tool Change Time | 30 sec |
| Square Tool Holder Size | □32 x □32 (Ø60) (mm) |
| Ram Cross Section | 250 x 250 mm (9.8 x 9.8 in) |
| Spindle Motor Power | 30 / 37 kW (40.2 / 49.6 hp) Std. (37 / 45 kW (49.6 / 60.3 hp) Opt.) |
| Power Spindle Motor Optional | 11 / 15 kW (14.8 / 20.1 hp) (Std.); 15 / 18.5 kW (20.1 / 24.8 hp) (Opt.) |
| Axis Servo Motors Xz | 7 / 7 kW |
| Cf Axis Motor Optional | 3 kW |
| Coolant Pump Motor | 0.98 kW |
| Cross Rail Motor | 7.5 kW |
| Hydraulic Motor | 3.8 kW |
| Machine Weight | 25,000 kg (55,000 lb) |
| Machine Dimensions | 5,590 x 5,555 x 5,525 mm (220 x 218.7 x 217.5 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,049 Nm (7,412 lb-ft) of maximum spindle torque
- 4,000 kg (8,800 lb) table load on a Ø1,000 mm (Ø39.4 in) table
- 30 / 37 kW (40.2 / 49.6 hp) standard, 37 / 45 kW (49.6 / 60.3 hp) optional
- Same footprint as the VTC-800ATC
- Automatic 2-speed gearbox and heavy box ways on all axes
Limitations
- Turning height of 800 mm (31.5 in), no more than the VTC-800ATC
- Table speed limited to 650 rpm
- Cross rail travel of 400 mm (15.7 in)
- Live tooling and C-axis are extra-cost options
Best For
Frequently Asked Questions
01
Ø1,200 mm (Ø47.2 in), which is also the maximum swing. The work table is Ø1,000 mm (Ø39.4 in) and the maximum turning height is 800 mm (31.5 in).
02
Maximum spindle torque is 10,049 Nm (7,412 lb-ft). The table motor is 30 / 37 kW (40.2 / 49.6 hp) as standard and 37 / 45 kW (49.6 / 60.3 hp) as an option, driving through an automatic Hi-Lo gearbox at 2-650 rpm.
03
BT-50 shank tools (7 / 24 taper) from a 12-tool ATC, with 16, 24, 40 or 60 tools optional. Square tool holders are □32 x □32 (Ø60) (mm), and the largest tool for automatic changing is 300W x 155T x 500L (mm) at up to 50 kg (110 lb).
04
A Fanuc 0i-TF PLUS controller with a 10.4 in LCD and Manual Guide i is standard. Siemens SINUMERIK 828D, Fanuc 31i-MB PLUS and Siemens SINUMERIK ONE controllers are listed as options.
More from Johnford
Other CNC Lathes / Turning Centers
TOS Kuřim SKD-E
Accuway UT-300LXY
DN Solutions PUMA GT 3100 LM

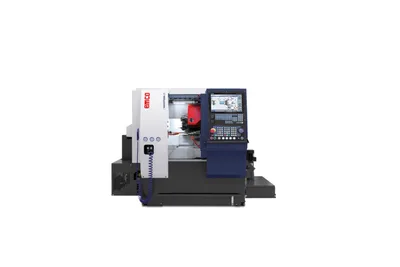

Emco Maxxturn 25
