Johnford VTC-800ATC
Key Specifications
Tool Capacity
Spindle Power
max swing diameter
max turning diameter
max turning height
table diameter
How much does the Johnford VTC-800ATC cost?
Price estimate
We do not have a price for the Johnford VTC-800ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Smallest of the table-type vertical turning centers from Johnford, the VTC-800ATC has a Ø810 mm (Ø31.9 in) work table and turns up to Ø1,000 mm (Ø39.4 in). It is also the fastest of them: the table runs 10-800 rpm, where the next size, the VTC-1000ATC, tops out at 650 rpm.
The design is the classic single-ram vertical lathe. A ram of 250 x 250 mm (9.8 x 9.8 in) travels 900 mm (35.4 in) in Z and 870 mm (34.3 in) in X on a cross rail, and the rail itself moves 400 mm (15.7 in) in W to suit the part height. Instead of a turret, the ram takes one tool at a time from a 12-tool ATC with BT-50 shanks. Turning tools sit in holders up to 300W x 155T x 500L (mm) and weigh up to 50 kg (110 lb).
Why a tool changer on a lathe? A ram with one rigid tool has more clearance inside a deep bore than a turret has, and the magazine can grow: 16, 24, 40 and 60 tools are options. Add the optional power spindle, 2-2,400 rpm with 11 / 15 kW (14.8 / 20.1 hp), and the optional C-axis, and the machine drills and mills bolt circles in the same clamping.
The table carries 2,000 kg (4,400 lb) and the part can stand 800 mm (31.5 in) high. Table drive is 18.5 / 22 kW (24.8 / 29.5 hp), the smallest motor in the series, with 3,455 Nm (2,548 lb-ft) of torque through the automatic 2-speed gearbox. At 22,000 kg (48,400 lb), it is a substantial machine for its turning diameter.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø1,000 mm (Ø39.4 in) |
| Max Turning Diameter | Ø1,000 mm (Ø39.4 in) |
| Max Turning Height | 800 mm (31.5 in) |
| Table Diameter | Ø810 mm (Ø31.9 in) |
| Max Table Load | 2,000 kg (4,400 lb) |
| X Axis Travel | 870 mm (34.3 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| W Axis Travel | 400 mm (15.7 in) |
| Table Speed | 10-800 rpm |
| Spindle Speed Steps | Auto Hi-Lo |
| Spindle Torque | 3,455 Nm (2,548 lb-ft) |
| Power Spindle Speed Optional | 2-2,400 rpm |
| Rapid Traverse Xz | 12 / 10 m/min (472 / 394 ipm) |
| Tool Capacity | ATC type: 12 (Std.); 16, 24, 40, 60 (Opt.) |
| Tool Shank | 7 / 24 taper BT-50 |
| Max Tool Size ATC | 300W x 155T x 500L (mm) |
| Max Tool Weight | 50 kg (110 lb) |
| Max ATC Load | 350 kg (770 lb) |
| Tool Change Time | 30 sec |
| Square Tool Holder Size | □32 x □32 (Ø60) (mm) |
| Ram Cross Section | 250 x 250 mm (9.8 x 9.8 in) |
| Spindle Motor Power | 18.5 / 22 kW (24.8 / 29.5 hp) Std. (22 / 26 kW (29.5 / 34.9 hp) Opt.) |
| Power Spindle Motor Optional | 11 / 15 kW (14.8 / 20.1 hp) (Std.); 15 / 18.5 kW (20.1 / 24.8 hp) (Opt.) |
| Axis Servo Motors Xz | 7 / 7 kW |
| Cf Axis Motor Optional | 3 kW |
| Coolant Pump Motor | 0.98 kW |
| Cross Rail Motor | 7.5 kW |
| Hydraulic Motor | 3.8 kW |
| Machine Weight | 22,000 kg (48,400 lb) |
| Machine Dimensions | 5,590 x 5,555 x 5,525 mm (220 x 218.7 x 217.5 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Table speed of 10-800 rpm, the highest of the table-type VTC models
- 12-tool ATC with BT-50 shanks, expandable to 16, 24, 40 or 60 tools
- Cross rail adjustable over 400 mm (15.7 in)
- 22,000 kg (48,400 lb) machine with heavy box ways on all axes
- Optional power spindle at 2-2,400 rpm and optional C-axis
Limitations
- Table load of 2,000 kg (4,400 lb)
- 18.5 / 22 kW (24.8 / 29.5 hp) and 3,455 Nm (2,548 lb-ft), the lowest figures among the table-type models
- Each automatic tool change takes 30 sec
- Z rapid of 10 m/min (394 ipm)
Best For
Frequently Asked Questions
01
Maximum swing and turning diameter are both Ø1,000 mm (Ø39.4 in), maximum turning height is 800 mm (31.5 in) and the work table is Ø810 mm (Ø31.9 in) with a load limit of 2,000 kg (4,400 lb).
02
An automatic tool changer holds 12 tools as standard (16, 24, 40 or 60 optional) with 7 / 24 taper BT-50 shanks. Tool change time is 30 sec, maximum tool weight 50 kg (110 lb) and maximum load of the ATC 350 kg (770 lb).
03
No. The power spindle, 2-2,400 rpm with an 11 / 15 kW (14.8 / 20.1 hp) motor or 15 / 18.5 kW (20.1 / 24.8 hp) as a further option, is listed as optional, as are the C-axis and its 3 kW CF axis motor.
04
The VTC-1000ATC turns Ø1,200 mm (Ø47.2 in) on a Ø1,000 mm (Ø39.4 in) table that carries 4,000 kg (8,800 lb), with 10,049 Nm (7,412 lb-ft) of torque and a 30 / 37 kW (40.2 / 49.6 hp) motor. Both have the same 5,590 x 5,555 x 5,525 mm (220 x 218.7 x 217.5 in) outline.
More from Johnford
Other CNC Lathes / Turning Centers
Okuma LAW-2S
YCM TC-46M/3200

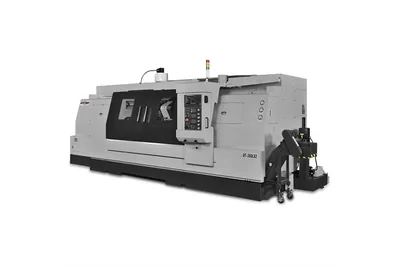

Accuway UT-360LX2
DMG Mori CTX 450

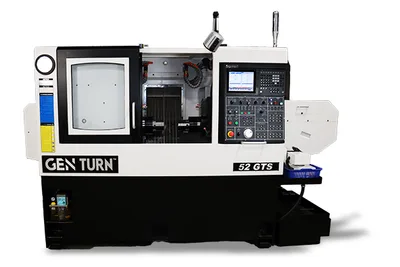

Ganesh GEN TURN 52-GTS
