Johnford VMC-1600S
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Johnford VMC-1600S cost?
Price estimate
We do not have a price for the Johnford VMC-1600S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford VMC-1600S is the wide-table version of the VMC-1600. The S models in the Large VMC series have 1,100 mm (43.3 in) of Y travel and a 1,000 mm deep table, and this one pairs that with 1,600 mm (63 in) of X on a table of 1,800 x 1,000 mm (70.9 x 39.4 in).
A C-frame vertical with 1,100 mm of Y is uncommon, because the spindle has to overhang the column by the full depth of the work. Here the spindle center sits 1,150 mm (45.3 in) from the column. Johnford answers the longer saddle travel with a Φ63 ball screw on Y, where X and Z keep Φ50, and the machine weighs 18,600 kg (40,920 lb). For wider work than this Johnford's double column machines take over; the DMC-1600, for example, has 1,300 mm (51.2 in) of Y travel.
For the user the benefit is a single setup on wide plates and mold bases that would otherwise need turning around. The table takes 4,600 kg (10,120 lb). Z travel is 800 mm (31.5 in) with 150~950 mm (5.9~37.4 in) under the spindle nose.
The spindle is the series' 40-taper unit: BT-40 / CAT-40, 80-8,000 rpm with an automatic Hi-Lo gearbox and a 7.5 / 11 kW (10.1 / 14.8 hp) motor. With that much overhang and that motor, the VMC-1600S is better suited to finishing and moderate cuts across a wide part than to heavy roughing at the front edge of the table. The machine is 4,580 mm (180.3 in) wide front to back and 3,695 mm (145.5 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,800 x 1,000 mm (70.9 x 39.4 in) |
| X Axis Travel | 1,600 mm (63 in) |
| Y Axis Travel | 1,100 mm (43.3 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Distance Spindle Nose to Table | 150~950 mm (5.9~37.4 in) |
| Distance Spindle Center to Column | 1,150 mm (45.3 in) |
| Spindle Taper | BT-40 / CAT-40 |
| Spindle Diameter | 70 mm (2.8 in) |
| Spindle Speed | Auto Hi-Lo Gear; 80-8,000 rpm |
| Spindle Motor Power | 7.5 / 11 kW (10.1 / 14.8 hp) |
| Rapid Traverse Xyz | 18 / 18 / 12 m/min (709 / 709 / 472 ipm) |
| Cutting Feed Rate | 1~12,000 mm/min (0.04~472 ipm) |
| Tool Capacity | Armless 24; Arm type 24/32 (Opt.) |
| Max Tool Diameter Adjacent Pockets | 75 mm (3 in) |
| Max Tool Diameter (full magazine) | 100 mm (3.9 in) |
| Max Tool Length | 320 mm (12.6 in) |
| Max Tool Weight | 10 kg (22 lb) |
| Max Table Load | 4,600 kg (10,120 lb) |
| Machine Weight | 18,600 kg (40,920 lb) |
| Machine Dimensions | 4,500 x 4,580 x 3,695 mm (177.2 x 180.3 x 145.5 in) |
| Ball Screw Diameter Xyz | Φ50,Φ63,Φ50 |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,100 mm (43.3 in) of Y travel on a C-frame vertical
- 1,800 x 1,000 mm (70.9 x 39.4 in) table rated 4,600 kg (10,120 lb)
- Φ63 ball screw on the Y axis
- 800 mm (31.5 in) Z travel
- 8,000 rpm geared 40-taper spindle for finishing wide parts in one setup
Limitations
- Spindle center is 1,150 mm (45.3 in) from the column, a long overhang for heavy cuts
- 7.5 / 11 kW (10.1 / 14.8 hp) spindle motor
- Needs 4,500 x 4,580 mm (177.2 x 180.3 in) of floor space
- Z rapid of 12 m/min (472 ipm)
Best For
Frequently Asked Questions
01
Johnford does not spell it out, but in the table the S models share a 1,000 mm deep table, 1,100 mm (43.3 in) of Y travel and 1,150 mm (45.3 in) from spindle center to column. The VMC-1600 without the S has 850 mm (33.5 in) of Y.
02
1,800 x 1,000 mm (70.9 x 39.4 in), with a load capacity of 4,600 kg (10,120 lb). Travels are 1,600 x 1,100 x 800 mm (63 x 43.3 x 31.5 in).
03
The table lists X-Y-Z ball screw diameters of Φ50, Φ63 and Φ50. The larger Y screw is specific to the S models; the VMC-1600 has Φ50 on all three axes.
04
Yes. The VMC-1600SHD has a BT-50 / CAT-50 spindle at 10-4,500 rpm with a 15 / 18.5 kW (20.1 / 24.8 hp) motor on the same table and travels.
More from Johnford
Other Vertical Machining Centers (VMC)

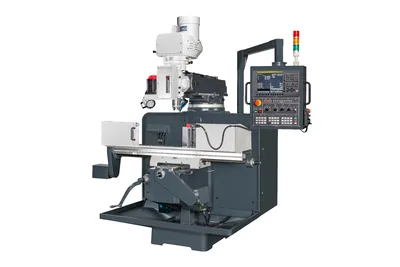

Colchester CV 400
Kitamura Mycenter-3020G

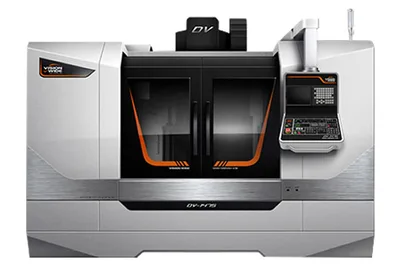

Vision Wide DV-1475
Vision Wide XMF-47

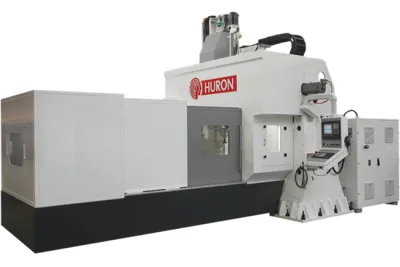

Huron NX 70
