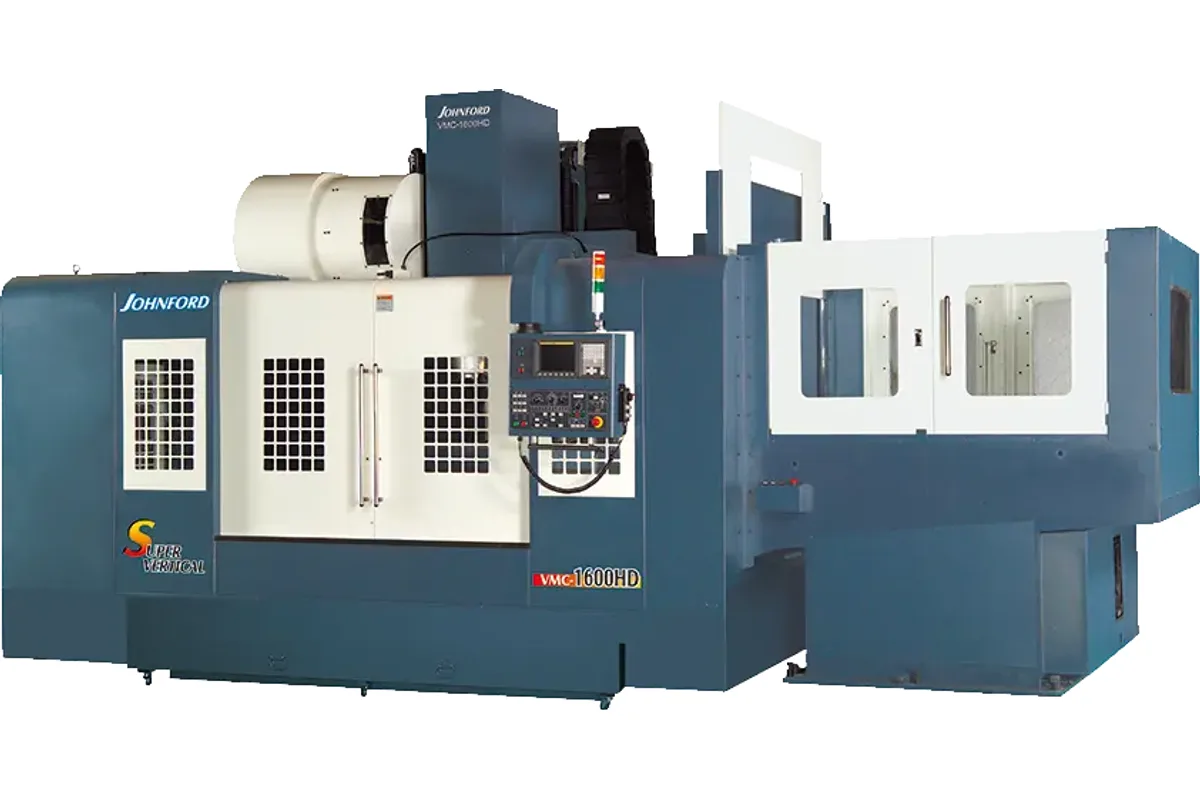

Johnford VMC-1600HD
Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Johnford VMC-1600HD cost?
Price estimate
We do not have a price for the Johnford VMC-1600HD that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Heavy parts and heavy cuts meet in the Johnford VMC-1600HD. It combines a 4,600 kg (10,120 lb) table load with a BT-50 / CAT-50 spindle driven by a 15 / 18.5 kW (20.1 / 24.8 hp) motor through an automatic Hi-Lo gearbox, at 10-4,500 rpm. X travel is 1,600 mm (63 in), Y is 850 mm (33.5 in) and Z is 710 mm (28 in).
Of the two HD machines with 850 mm of Y, this is the one with the mass to match the spindle. It weighs 17,500 kg (38,500 lb), against 13,500 kg (29,700 lb) for the VMC-1300HD, and its 1,800 x 750 mm (70.9 x 29.5 in) table leaves room to clamp a long casting with the cutter still able to run off both ends.
A buyer comparing it with the 40-taper VMC-1600 is trading reach and speed for force. Z drops from the VMC-1600's 800 mm (31.5 in) to 710 mm (28 in), the nose-to-table range becomes 160~870 mm (6.3~34.3 in), and top speed falls from 8,000 to 4,500 rpm. In return the spindle diameter grows to 100 mm (3.9 in) and tools of 15 kg (33 lb) and 250 mm (9.8 in) diameter can be changed automatically.
The standard changer is a 20-tool armless unit. Johnford's option list for the Large VMC series runs to 24, 32, 40 and 60-tool arm type magazines, high pressure coolant through the spindle at 20 bar, and an automatic pallet changer with pallets up to 1,800 x 1,000 mm. Rapids are 18 / 18 / 12 m/min (709 / 709 / 472 ipm).
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,800 x 750 mm (70.9 x 29.5 in) |
| X Axis Travel | 1,600 mm (63 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 710 mm (28 in) |
| Distance Spindle Nose to Table | 160~870 mm (6.3~34.3 in) |
| Distance Spindle Center to Column | 885 mm (34.8 in) |
| Spindle Taper | BT-50 / CAT-50 |
| Spindle Diameter | 100 mm (3.9 in) |
| Spindle Speed | Auto Hi-Lo Gear; 10-4,500 rpm |
| Spindle Motor Power | 15 / 18.5 kW (20.1 / 24.8 hp) |
| Rapid Traverse Xyz | 18 / 18 / 12 m/min (709 / 709 / 472 ipm) |
| Cutting Feed Rate | 1~12,000 mm/min (0.04~472 ipm) |
| Tool Capacity | Armless 20; Arm type 24/32 (Opt.) |
| Max Tool Diameter Adjacent Pockets | 125 mm (5 in) |
| Max Tool Diameter (full magazine) | 250 mm (9.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Max Table Load | 4,600 kg (10,120 lb) |
| Machine Weight | 17,500 kg (38,500 lb) |
| Machine Dimensions | 4,500 x 3,940 x 3,535 mm (177.2 x 155 x 139.2 in) |
| Ball Screw Diameter Xyz | Φ50,Φ50,Φ50 |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 50-taper geared spindle with 15 / 18.5 kW (20.1 / 24.8 hp) over a 4,600 kg (10,120 lb) capacity table
- 17,500 kg (38,500 lb) machine weight
- 1,600 mm (63 in) of X travel on a 1,800 x 750 mm (70.9 x 29.5 in) table
- Tools up to 400 mm (15.7 in) long and 15 kg (33 lb)
Limitations
- Top spindle speed of 4,500 rpm
- Z travel is 710 mm (28 in), with a minimum of 160 mm (6.3 in) between spindle nose and table
- Table is 750 mm (29.5 in) deep; the wider S models have 1,000 mm
- 20 tools in the standard armless changer
Best For
Frequently Asked Questions
01
Heavy cutting on large parts. The spindle is BT-50 / CAT-50 at 10-4,500 rpm with a 15 / 18.5 kW (20.1 / 24.8 hp) motor and an Auto Hi-Lo Gear, and the table carries 4,600 kg (10,120 lb).
02
710 mm (28 in), with a spindle nose to table distance of 160~870 mm (6.3~34.3 in). The 40-taper VMC-1600 has 800 mm (31.5 in) of Z travel.
03
Yes. The VMC-1600SHD has 1,100 mm (43.3 in) of Y travel on a 1,800 x 1,000 mm (70.9 x 39.4 in) table, with the same 50-taper spindle. The VMC-1600SHD weighs 18,600 kg (40,920 lb).
04
4,500 x 3,940 x 3,535 mm (177.2 x 155 x 139.2 in), length by width by height. Machine weight is 17,500 kg (38,500 lb).
