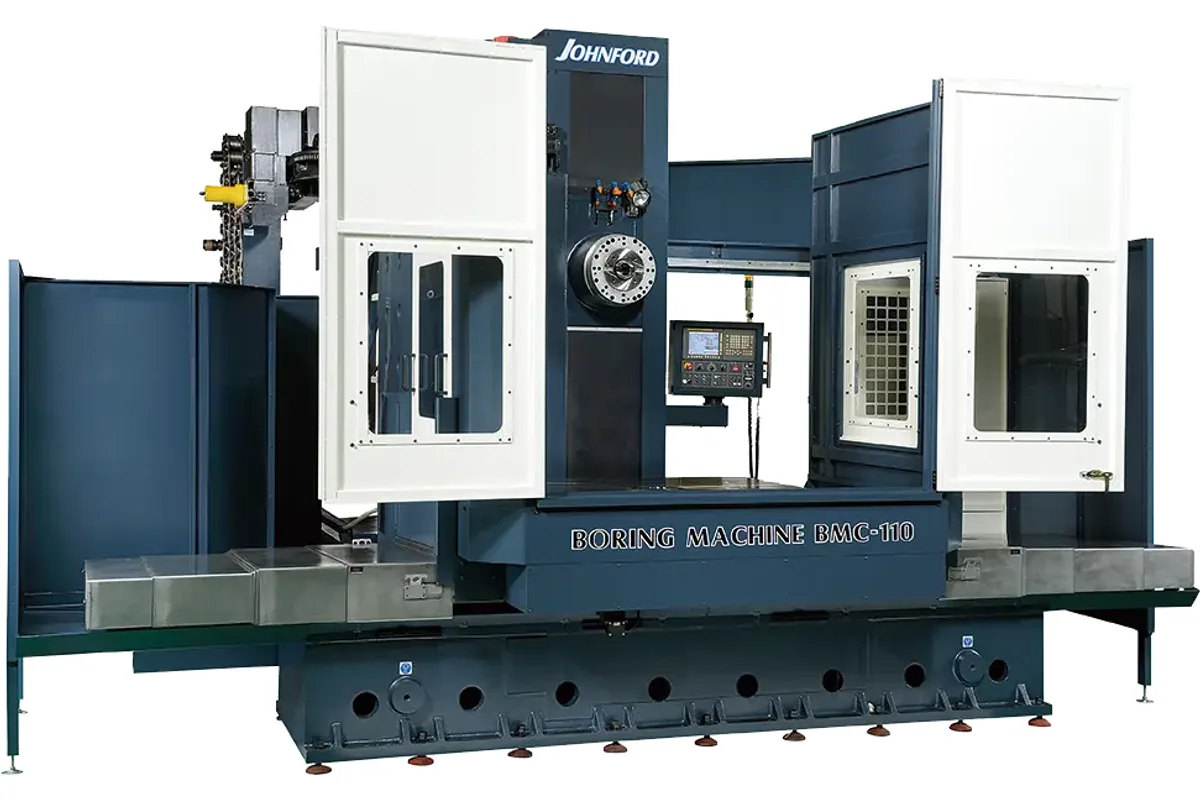

Johnford BMC-110
Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Johnford BMC-110 cost?
Price estimate
We do not have a price for the Johnford BMC-110 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford BMC-110 is a table-type horizontal boring machining center with a Ø110 mm (Ø4.3 in) boring spindle. The column carries the headstock through 1,800 mm (70.8 in) of Y, the table moves 2,000 mm (78.7 in) in X and 1,600 mm (63 in) in Z, and the spindle itself extends 550 mm (21.7 in) as the W axis.
That quill is the defining feature of the type. It lets a boring bar reach into a housing without a long, flexible tool: the spindle nose can be anywhere from 550 to 2,150 mm (21.7-84.7 in) from the table centre. Together with a B-axis rotary table indexing in 0.001° steps, which Johnford includes as standard with precision locating holes at every 90°, a gearbox or pump casing can be bored from four sides with the bores held in line.
The table is 1,400 x 1,600 mm (55 x 63 in) and carries 12,000 kg (26,400 lb). Spindle speed is 5-3,000 rpm in 2 steps, with a No. 50 taper and a 22 / 26 kW (29.5 / 34.9 hp) motor rated continuous and 30 minutes. The gearbox has its own automatic lubrication and an oil cooler, and the headstock is hydraulically counterbalanced.
Among the three BMC sizes this is the only one with a 2-step drive as its sole option and the smallest motor; the BMC-130 moves to 30 / 37 kW (40.2 / 49.6 hp). It is also the most compact at 7,100 x 6,200 mm (279.5 x 244.1 in) of floor and 27,000 kg (59,400 lb). A 60-tool ATC is standard.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,400 x 1,600 mm (55 x 63 in) |
| Max Table Load | 12,000 kg (26,400 lb) |
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 1,800 mm (70.8 in) |
| Z Axis Travel | 1,600 mm (63 in) |
| W Axis Travel | 550 mm (21.7 in) |
| Distance Spindle Nose to Table Center | 550-2,150 mm (21.7-84.7 in) |
| Distance Spindle Center to Table Top | 0-1,800 mm (0-70.9 in) |
| Boring Spindle Diameter | Ø110 mm (Ø4.3 in) |
| Spindle Taper | No. 50 |
| Spindle Speed | 5-3,000 rpm |
| Spindle Speed Steps | 2 |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) (cont./30 min) |
| Rapid Traverse Xyzw | 12 / 12 / 12 / 6 m/min (472 / 472 / 472 / 236 ipm) |
| Cutting Feed Rate | 1~6,000 mm/min (0.04~236 ipm) |
| Table Speed B Axis | 4 rpm |
| Tool Capacity | 60 |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Tool Selection | Bi-direction Random Type Shortest Path |
| Machine Length | 7,100 mm (279.5 in) |
| Machine Width | 6,200 mm (244.1 in) |
| Machine Height | 3,850 mm (151.6 in) |
| Machine Weight | 27,000 kg (59,400 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø110 mm (Ø4.3 in) boring spindle with 550 mm (21.7 in) of W-axis travel
- 0.001° B-axis rotary table with absolute encoder as standard
- 12,000 kg (26,400 lb) table load on a 1,400 x 1,600 mm (55 x 63 in) table
- 60-tool ATC, tools up to 400 mm (15.7 in) long and 25 kg (55 lb)
- Hydraulic counterbalance for the headstock and oil cooler for spindle and gearbox
Limitations
- 22 / 26 kW (29.5 / 34.9 hp), the smallest motor of the BMC series
- Spindle speed tops out at 3,000 rpm
- W-axis rapid of 6 m/min (236 ipm) and cutting feed limited to 6,000 mm/min (236 ipm)
- Linear scales on X, Y and Z are an option
Best For
Frequently Asked Questions
01
X 2,000 mm (78.7 in), Y 1,800 mm (70.8 in), Z 1,600 mm (63 in) and W, the boring spindle travel, 550 mm (21.7 in). The spindle centre can be 0-1,800 mm (0-70.9 in) above the table top.
02
Yes. A 0.001° B-axis rotary table with precision locating holes at every 90° and an absolute encoder is a standard accessory. The table revolves at 4 rpm.
03
The BMC-130 has a Ø130 mm (Ø5.1 in) spindle, 3,000 mm (118 in) of X, 2,300 mm (90.5 in) of Y, a 15,000 kg (33,000 lb) table and a 30 / 37 kW (40.2 / 49.6 hp) motor. The BMC-110 has a Ø110 mm (Ø4.3 in) spindle, 2,000 mm (78.7 in) of X and a top speed of 3,000 rpm, where the BMC-130 stops at 2,500 rpm.
04
Optional accessories include a 90° milling head, a universal milling head, a U-axis facing head, a spindle extension sleeve and angle plates. Coolant through the spindle at 20 bar or 70 bar with cartridge filtration is also an option.
