Jingdiao JDHGT600T(H)
Image: en.jingdiao.com, Jingdiao
Key Specifications
Max Spindle
Spindle Taper
Table Size
Accuracy
Repeatability
x axis travel
How much does the Jingdiao JDHGT600T(H) cost?
Price estimate
We do not have a price for the Jingdiao JDHGT600T(H) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

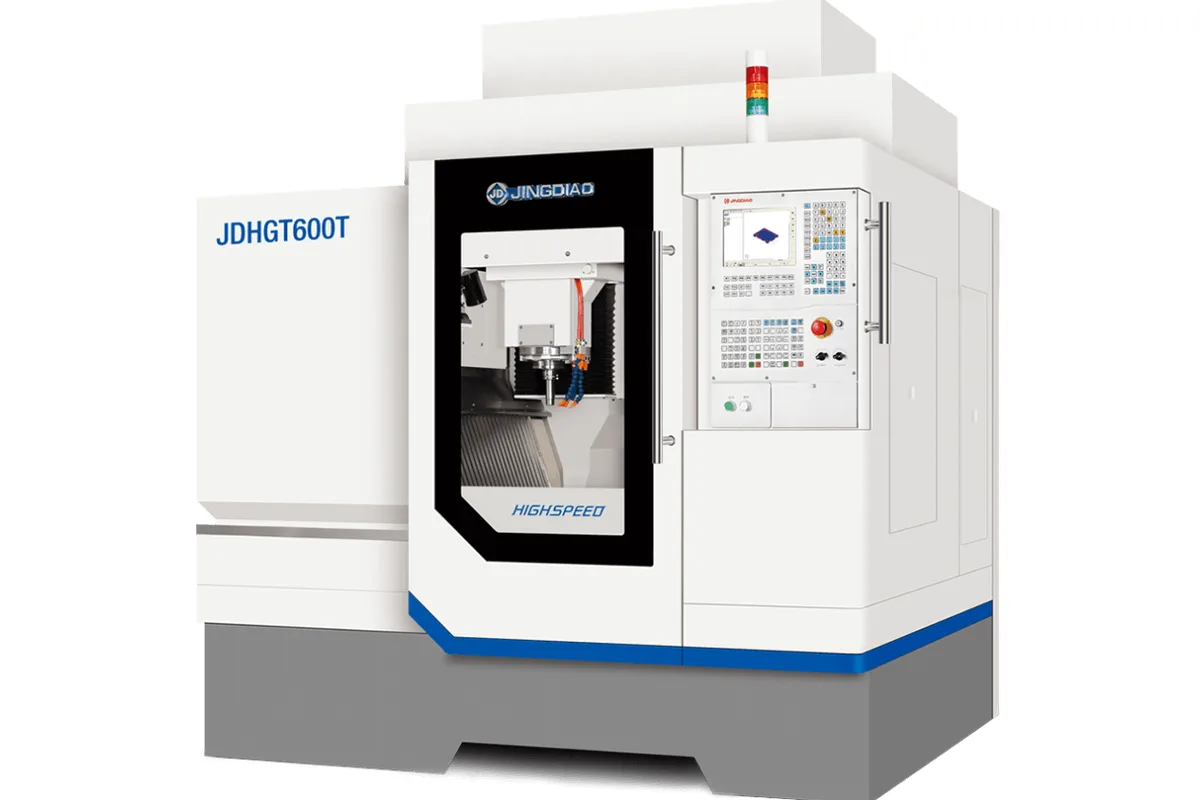

The Jingdiao JDHGT600T(H) is a 3-axis high-speed machining center sold in two heights. Both share 600 mm (23.6 in) of X travel, 500 mm (19.7 in) of Y and a 650 × 650 mm (25.6 × 25.6 in) table. The JDHGT600T has 200 mm (7.9 in) of Z and the JDHGT600TH has 300 mm (11.8 in). Jingdiao sells the pair for micron-scale electrodes, precision mold parts and precision hole grinding, quoting 2 ~ 5 μm machining accuracy with a reasonable software and hardware configuration.
The two heights are really two different machines at the spindle. The short-Z JDHGT600T is offered with one spindle, a 32,000 rpm unit on HSK-E32 that the maker calls a spindle for precision machining. The taller JDHGT600TH swaps it for general high-speed spindles: 24,000 rpm on BT30, or 20,000 rpm on HSK-A50, the latter also available with coolant through the spindle. So the choice of Z height is also a choice between fine finishing with small tools and heavier, more general mold work.
Magazines follow the same split. An umbrella magazine with 24 tools or a chain magazine with 37 tools goes on the JDHGT600T. The JDHGT600TH takes an umbrella magazine with 18 tools or 20 tools, or the same chain magazine.
The linked data sheet lists 0.002 / 0.002 / 0.002 mm (X/Y/Z) positioning accuracy, 0.0018 / 0.0018 / 0.0018 mm repeatability, rapids of 18 m/min (709 ipm) and a maximum feed of 15 m/min (591 ipm). Full closed-loop control with grating scales and a spindle and ball screw refrigerator are standard. Table load is 300 kg (661 lb) and the listed machine weight is 5,100 kg (11,243 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 200 mm (7.9 in) on the JDHGT600T; 300 mm (11.8 in) on the JDHGT600TH |
| Table Size | 650 × 650 mm (25.6 × 25.6 in) |
| Max Table Load | 300 kg (661 lb) |
| Spindle Type | JDHGT600T: JD135E-32-HE32/F. JDHGT600TH: JD130S-24-BT30/E, JD150S-20-HA50/C or JD150SC-20-HA50/A (coolant through spindle) |
| Max Spindle Speed | 32,000 rpm (JDHGT600T); 24,000 rpm or 20,000 rpm (JDHGT600TH) |
| Spindle Taper | HSK-E32 (JDHGT600T); BT30 or HSK-A50 (JDHGT600TH) |
| Tool Magazine | JDHGT600T: Umbrella Type (24 Tools) or Chain Type (37 Tools). JDHGT600TH: Umbrella Type (18 Tools or 20 Tools) or Chain Type (37 Tools) |
| Positioning Accuracy | 0.002 / 0.002 / 0.002 mm (X/Y/Z) |
| Repeatability | 0.0018 / 0.0018 / 0.0018 mm (X/Y/Z) |
| Rapid Traverse Xyz | 18 m/min (709 ipm) |
| Cutting Feed Rate | 15 m/min (591 ipm) |
| Drive System | AC Servo |
| CNC Control | JD50 Control System |
| Power Requirement | 3-Phase, 380V/50Hz, or Customized |
| Air Pressure | ≥0.52 MPa |
| Machine Weight | 5,100 kg (11,243 lb) |
Specifications sourced from en.jingdiao.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Two Z heights on one frame: 200 mm (7.9 in) on the JDHGT600T or 300 mm (11.8 in) on the JDHGT600TH
- Spindle range from 32,000 rpm on HSK-E32 to 20,000 rpm on HSK-A50, with a coolant-through version of the latter
- Rapids of 18 m/min (709 ipm) and a 15 m/min (591 ipm) top feed, quicker than the 15 m/min (591 ipm) rapids of the JDHGT400T
- Positioning accuracy of 0.002 / 0.002 / 0.002 mm (X/Y/Z) with grating-scale feedback as standard
- Chain magazine with 37 tools available on both heights
Limitations
- The 32,000 rpm precision spindle is listed only for the 200 mm (7.9 in) Z version
- Table load is 300 kg (661 lb), no more than the smaller JDHGT400T carries
- Even the tall version stops at 300 mm (11.8 in) of Z; the JDHGT800T(H) offers 350 mm (13.8 in) or 450 mm (17.7 in)
- Weight and feed rates are listed for one configuration only, so they should be confirmed for the version ordered
Best For
Frequently Asked Questions
01
Z travel and spindle. The JDHGT600T has 200 mm (7.9 in) of Z and a 32,000 rpm HSK-E32 spindle for precision machining. The JDHGT600TH has 300 mm (11.8 in) of Z and is listed with a 24,000 rpm BT30 spindle or a 20,000 rpm HSK-A50 spindle. X and Y travel, the table and the 300 kg (661 lb) load are the same on both.
02
The worktable is 650 × 650 mm (25.6 × 25.6 in) with a maximum load of 300 kg (661 lb). Travels are 600 mm (23.6 in) in X and 500 mm (19.7 in) in Y, so the table is larger than the area the spindle can reach, which leaves clamping room around the part.
03
On the JDHGT600T: an umbrella type magazine with 24 tools or a chain type magazine with 37 tools. On the JDHGT600TH: umbrella type magazines with 18 tools or 20 tools, depending on the spindle, or the chain type with 37 tools. The data sheet lists a chain type tool magazine with manipulator as standard equipment.
04
Positioning accuracy is 0.002 / 0.002 / 0.002 mm (X/Y/Z) and repeatability 0.0018 / 0.0018 / 0.0018 mm, calibrated with reference to ISO230-2. The product page states that 2 ~ 5 μm machining accuracy can be realized stably with a reasonable software and hardware configuration.
05
Jingdiao says the machine can be equipped with various models of its precision rotary tables to expand it to multi-axis processing. On the short-Z version check the remaining clearance first: 200 mm (7.9 in) of Z has to cover the rotary table, the fixture, the part and the tool.
