Ibarmia ZLV5

Q: How much does the Ibarmia ZLV5 cost?

The price estimate for the Ibarmia ZLV5 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ibarmia-zlv5#price; the request is passed to Ibarmia or an authorised dealer.

Specs verified 2026-10-05 · ibarmia.com Updated 2026-10-05

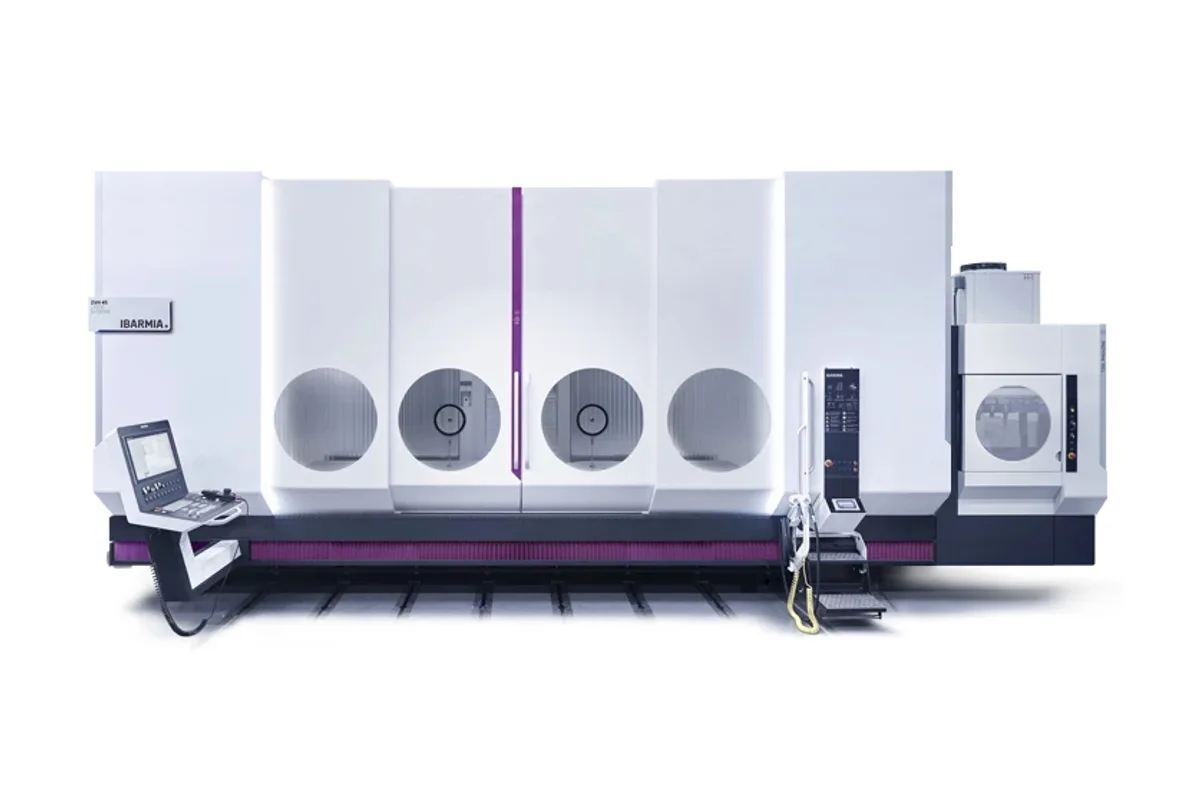

Ibarmia Z series moving-column machining centre, picture shown for the ZLV5 on the Z Extreme 3 axis page

Image: ibarmia.com, Ibarmia

Key Specifications

Max Spindle

12,000 rpm

Spindle Taper

SK-50 • BT-50 • HSK A-100 • CAPTO 8

Spindle Power

84 kW (112.6 hp)

x axis travel

Up to 12,000 mm (472.4 in)

y axis travel

800 / 1,000 / 1,100 mm (31.5 / 39.4 / 43.3 in)

z axis travel

950 mm (37.4 in); option 1,150 mm (45.3 in)

How much does the Ibarmia ZLV5 cost?

Price estimate

Uncertain

We do not have a price for the Ibarmia ZLV5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Ibarmia ZLV5 is the largest of the three 3 axis Z-series models, and the only one on the large column. It lists 84 kW (112.6 hp) and 12,000 rpm through a vertical ZV head, with SK-50, BT-50, HSK A-100 or CAPTO 8 holders.

84 kW is the figure that sets it apart. The medium-size ZMV5 uses the same holders and lists 43 kW (57.7 hp) at 8,000 rpm, so stepping up changes both the metal removal available and the speed range. One spindle can then run a large face mill in steel and a small finishing tool in aluminium. Ibarmia prints no torque figure for either model.

The large column also widens the envelope. Y is offered as 800, 1,000 or 1,100 mm (31.5, 39.4 or 43.3 in). Z is 950 mm (37.4 in), or 1,150 mm (45.3 in) as an option. One detail to notice: the tilting-head ZLS5, on the same construction size, lists 1,100 mm (43.3 in) of Z, more than the standard figure here. X is up to 12,000 mm (472.4 in), as on the ZMV4 and ZMV5.

It remains a 3 axis machine with a fixed table. Angled work calls for a horizontal rotary table or one of Ibarmia's custom trunnion fixtures, and two trunnions can be joined into one long one when a part demands it. Power draw, floor loading and chip volume at 84 kW are worth raising early, because the page says nothing about installation.

Full Specifications

Parameter	Value
Spindle Taper	SK-50 • BT-50 • HSK A-100 • CAPTO 8
X Axis Travel	Up to 12,000 mm (472.4 in)
Y Axis Travel	800 / 1,000 / 1,100 mm (31.5 / 39.4 / 43.3 in)
Z Axis Travel	950 mm (37.4 in); option 1,150 mm (45.3 in)
Spindle Motor Power	84 kW (112.6 hp)
Max Spindle Speed	12,000 rpm
Spindle Head	ZV spindle head, High Dynamics spindle (3 axis movement)
Construction Size	Large size
Structure	Moving column

Specifications sourced from ibarmia.com — verified 2026-10-05

Strengths & Limitations

Strengths

84 kW (112.6 hp) spindle, the highest power listed among the 3 axis Z-series models
12,000 rpm together with SK-50, BT-50, HSK A-100 or CAPTO 8 holders
Y available at 800, 1,000 or 1,100 mm (31.5, 39.4 or 43.3 in)
Z of 950 mm (37.4 in), with 1,150 mm (45.3 in) as an option
X travel up to 12,000 mm (472.4 in) on a moving-column structure

Limitations

Standard Z of 950 mm (37.4 in) is shorter than the 1,100 mm (43.3 in) listed for the ZLS5 on the same construction size
No tilting head; multi-face work depends on rotary tables or trunnion fixtures
No SK-40 class holder option for shops with an existing stock of smaller tooling
Torque, feed rates, table load and installation data are not on the product page

Best For

High-volume metal removal on long steel parts with an 84 kW (112.6 hp) spindle Mixed roughing and finishing with SK-50 class tools at up to 12,000 rpm Parts that need 1,100 mm (43.3 in) of Y travel Large moulds, bases and structural parts machined from above

Frequently Asked Questions

01 How powerful is the Ibarmia ZLV5 spindle?

Ibarmia lists 84 kW (112.6 hp) and 12,000 rpm. That is the highest power among the 3 axis models of the Z series: the ZMV4 lists 46 kW (61.7 hp) and the ZMV5 lists 43 kW (57.7 hp). Torque is not published on the page, so request the power and torque curves if low-speed roughing is the main job.

02 What Z travel does the ZLV5 offer?

950 mm (37.4 in) as listed, with 1,150 mm (45.3 in) as an option. Both figures are larger than the 800 or 900 mm (31.5 or 35.4 in) of the medium-size ZMV5. Remember that long SK-50 class tools and the fixture take their share of that height before the part does.

03 Why choose the ZLV5 over the ZMV5?

For power, speed and Y travel. The two share their tool-holder options, but the ZLV5 lists 84 kW (112.6 hp) at 12,000 rpm where the ZMV5 lists 43 kW (57.7 hp) at 8,000 rpm. The ZLV5 can also be ordered with 1,100 mm (43.3 in) of Y, which the medium column does not offer.

04 Can the ZLV5 machine angled features?

Not with the head alone. The ZV head gives 3 axis movement. Ibarmia offers horizontal rotary tables and custom trunnion fixtures to turn the part instead, including double trunnion fixtures that become one large trunnion system when required. If the head itself needs to tilt, the ZLS5 has the ZS head with a B axis of +/- 120º.
