Kitamura Machinery Vertical Machining Centers

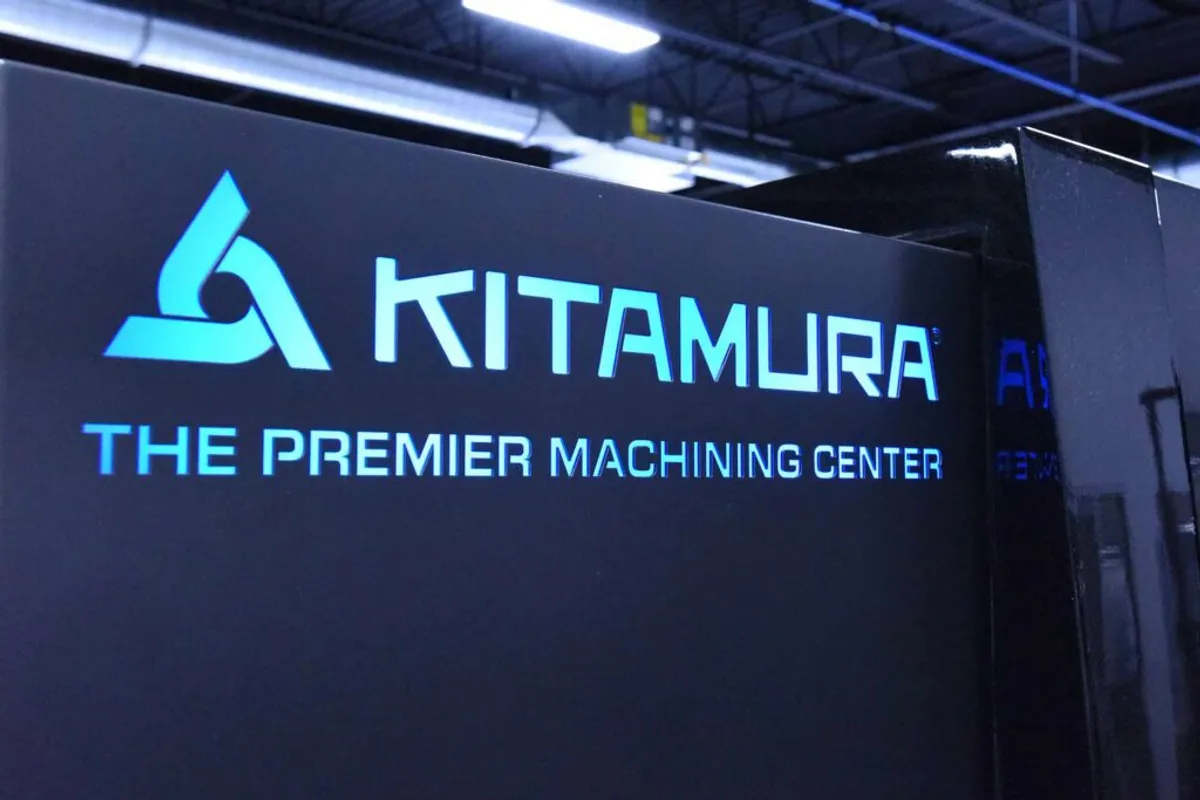

Kitamura Kitamura Mycenter-3XV

$90,000 - $125,000 Updated 2026-03-19

Key Specifications

X Travel

760mm (29.9″)

Y Travel

510mm (20.1″)

Z Travel

510mm (20.1″)

Max Spindle

15,000 min⁻¹

Spindle Taper

NST No. 40

Tool Capacity

30 Pcs.

Overview

The Kitamura Mycenter-3XV is a mid-size 40-taper vertical machining center that represents the latest evolution of Kitamura's popular 3X platform, upgraded with V-series enhancements including faster rapids, higher spindle power, and the Arumatik-Mi Pro control. With 760 x 510 x 510 mm (29.9 x 20.1 x 20.1 in) X/Y/Z travel, the 3XV occupies the same competitive space as the Haas VF-2 and Okuma GENOS M560-V but brings Kitamura's hand-scraped precision to the segment.

The 15,000 RPM dual-contact spindle pushes 30.6 kW (41 hp) through a direct-drive system — a significant power upgrade over the previous-generation 3XiG's 13.4 kW geared head. This makes the 3XV substantially more capable in aggressive roughing and high-speed aluminum work. Rapid traverse rates of 52 m/min (2,047 ipm) on X/Y and 42 m/min (1,890 ipm) on Z are fast by any standard, dramatically reducing non-cutting time compared to the older 3XiG's 5 m/min rapids.

The 30-tool side-mount ATC delivers 2.2-second tool-to-tool and 4.2-second chip-to-chip changes. The table measures 500 x 860 mm (19.7 x 33.9 in), providing good clamping area for multi-part fixturing. Positioning accuracy of plus/minus 0.002 mm over full stroke with plus/minus 0.001 mm repeatability is standard Kitamura precision-grade territory, achieved through hand-scraped mating surfaces and thermal compensation.

New Mycenter-3XV machines typically price between $90,000 and $125,000, positioning them as a precision alternative to the Haas VF-2 at roughly double the price. The value proposition is clear for shops where accuracy, surface finish quality, and long-term precision retention justify the premium over commodity VMCs.

Full Specifications

Parameter	Value
X-Axis Travel	760mm (29.9″)
Y-Axis Travel	510mm (20.1″)
Z-Axis Travel	510mm (20.1″)
Max Spindle Speed	15,000 min⁻¹
Spindle Taper	NST No. 40
Spindle Motor Power	41HP
Spindle Drive	Direct Drive
Tool Capacity	30 Pcs.
Tool To Tool	2.2 Sec.
Chip To Chip	4.2 sec
Table Size	500 x 860mm (19.7″ x 33.9″)
Rapid Traverse Xy	52 m/min (2,047 ipm)
Rapid Traverse Z	42 m/min (1,890 ipm)
Positioning Accuracy	±0.002mm (±0.000079″)/Full Stroke
Repeatability	±0.001mm (±0.000039″)
Power Requirement	30 KVA, 200V AC, 3 Phase
CNC Control	Kitamura Arumatik-Mi Pro
Rapid Traverse X	52m/min (2,047ipm)
Rapid Traverse Y	42m/min (1,890ipm)
Cnc Control	Arumatik-Mi Pro
Electrical	30KVA, 200v AC, 3 Phase

Specifications sourced from kitamura-machinery.com — verified 2026-03-28

Strengths & Limitations

Strengths

41 hp direct-drive spindle is a major power upgrade over the previous 3XiG, enabling aggressive roughing in steel and high-speed aluminum work
52 m/min rapids on X/Y are over 10x faster than the 3XiG, dramatically reducing non-cutting time in multi-feature programs
Hand-scraped mating surfaces deliver ±0.002 mm positioning accuracy that Kitamura machines maintain for 15-20 years
Dual-contact Big Plus spindle interface improves rigidity and reduces runout versus standard CAT 40 tooling
Arumatik-Mi Pro control adds enhanced processing speed and look-ahead over the standard Arumatik-Mi
760 mm X-travel with 30-tool ATC is well-suited to a wide range of mid-size parts

Limitations

Arumatik-Mi Pro control is Mitsubishi-based — less common than Fanuc in most North American shops
30-tool ATC may limit complex multi-tool programs; competitors offer 40+ tools at this price point
Price premium of $40-60K over a comparably sized Haas VF-2 requires workload that values precision over cost
Kitamura dealer and service network in North America is smaller than Haas, Mazak, or Okuma

Best For

Precision job shops producing tight-tolerance parts in aerospace, medical, and defense applications Mold and die shops requiring excellent surface finish and geometric accuracy on cavity work Shops upgrading from older Kitamura 3XiG or 3XiF models wanting the V-series performance improvements Mixed-material production where the 41 hp spindle handles aluminum high-speed machining and steel roughing equally well Manufacturers producing parts with tolerances under ±0.005 mm that demand repeatable long-term precision

Frequently Asked Questions

01 What does a new Kitamura Mycenter-3XV cost?

New machines typically price between $90,000 and $125,000 depending on options. This represents a premium over the Haas VF-2 ($55-65K) but delivers significantly better precision, spindle performance, and long-term accuracy retention.

02 How does the 3XV differ from the older 3XiG?

The 3XV brings major upgrades: 41 hp direct-drive spindle (vs 18 hp geared head), 52 m/min rapids (vs 5 m/min), and the Arumatik-Mi Pro control. The V-series is substantially faster and more powerful while maintaining the hand-scraped precision that defines the Kitamura lineup.

03 Why does Kitamura hand-scrape their machines?

Hand-scraping creates precision mating surfaces between the ways and saddle that grinding alone cannot achieve. The resulting oil retention pattern and surface contact quality contribute to exceptional geometric accuracy and long-term precision retention that Kitamura machines are known for.

04 What CAM software works with the Mycenter-3XV?

The Arumatik-Mi Pro accepts standard G-code, so any major CAM package works: Mastercam, Fusion 360, NX, CATIA, SolidCAM, and others. Post processors for Kitamura controls are available from most CAM vendors and from Kitamura directly.
