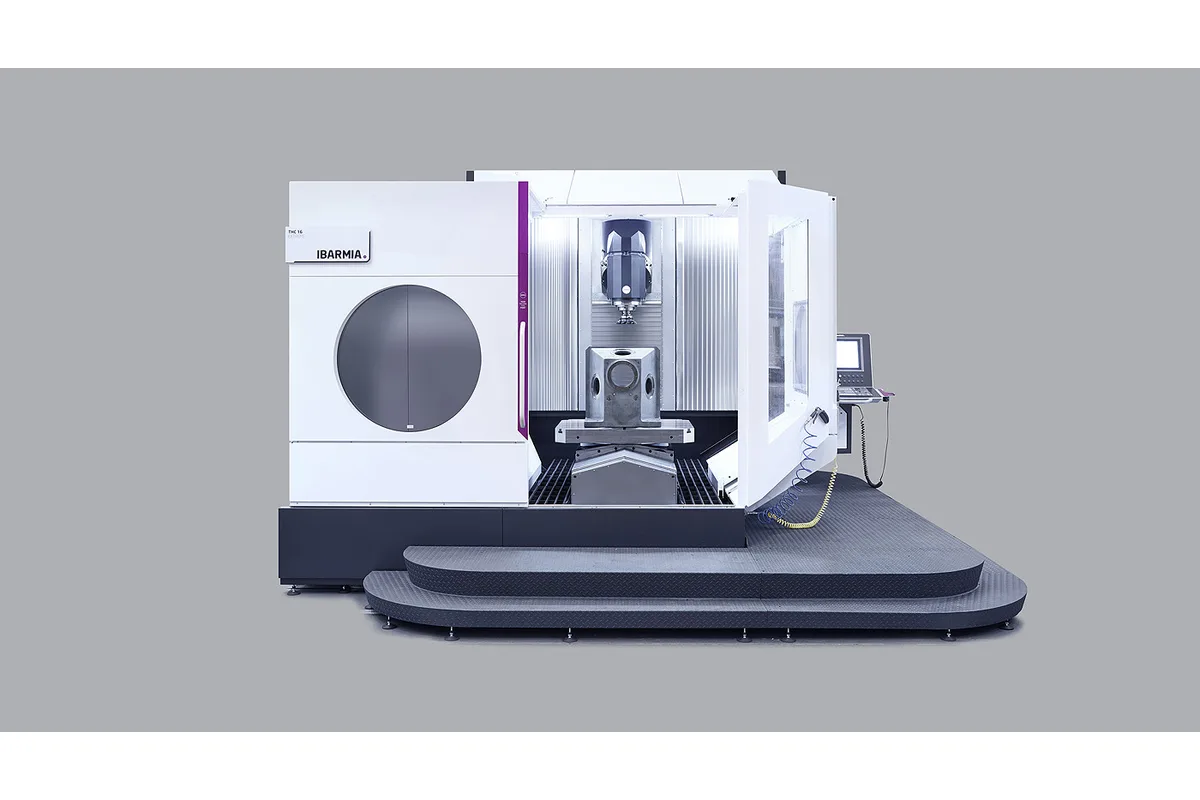

Ibarmia T16
Image: ibarmia.com, Ibarmia
Key Specifications
Tool Capacity
Spindle Power
max swing diameter
max part height
max turning load multiprocess
b axis range
How much does the Ibarmia T16 cost?
Price estimate
We do not have a price for the Ibarmia T16 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ibarmia T16 is a 5-axis machining center for parts up to 1,600 mm (63.0 in) in swing diameter and 1,700 mm (66.9 in) high. In its T Multiprocess form, which turns as well as mills, the maximum turning load is 3,000 kg (6,614 lb). The T Extreme version is the milling-only 5-axis machine.
That load figure is the one to plan around. It applies to turning on the Multiprocess, and the fixture or chuck jaws should be counted against it along with the workpiece. A part can sit inside the 1,600 mm swing and still be too heavy to turn, so weigh the job before sizing the machine by diameter alone. No load is stated for milling on the T Extreme.
Within the range the T16 falls between the T12, at 1,250 mm (49.2 in) of swing and 1,600 mm (63.0 in) of height, and the T22, at 2,200 mm (86.6 in) and 1,750 mm (68.9 in). Spindle power is listed up to 84 kW (112.6 hp) and magazines up to 360 positions. Two heads appear in the table: THC with a -15º/+195º B axis, THR with a -45º/+135º A axis.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | 1,600 mm (63.0 in) |
| Max Part Height | 1,700 mm (66.9 in) |
| Max Turning Load Multiprocess | 3,000 kg (6,614 lb) |
| Spindle Motor Power | Up to 84 kW (112.6 hp) |
| B Axis Range | -15º/+195º (THC head) |
| A Axis Range | -45º/+135º (THR head) |
| Tool Capacity | Tool magazines up to 360 positions |
| Versions | T Extreme (5-axis milling) / T Multiprocess (5-axis turning and milling) |
Specifications sourced from ibarmia.com — verified 2026-10-03
Strengths & Limitations
Strengths
- States a turning load: 3,000 kg (6,614 lb) on the T Multiprocess version
- Envelope of 1,600 mm (63.0 in) swing diameter by 1,700 mm (66.9 in) part height
- Spindle power of up to 84 kW (112.6 hp) with tool magazines of up to 360 positions
Limitations
- The 3,000 kg (6,614 lb) limit is given for turning on the Multiprocess only; the Extreme version has no load figure in the table
- Parts over 1,600 mm (63.0 in) in swing need the T22, which takes 2,200 mm (86.6 in)
- Table dimensions are not listed for this size
Best For
Frequently Asked Questions
01
The T Multiprocess version lists a maximum turning load of 3,000 kg (6,614 lb). Treat workholding as part of that load. The figure is specific to turning on the Multiprocess; for milling on the T Extreme the table gives no weight limit, so ask Ibarmia for it.
02
Maximum swing diameter is 1,600 mm (63.0 in) and maximum part height is 1,700 mm (66.9 in). The two are close, so the envelope is roughly as tall as it is wide. The T12 below it is narrower at 1,250 mm (49.2 in) of swing; the T22 above it reaches 2,200 mm (86.6 in).
03
The T Multiprocess, which Ibarmia lists for 5-axis turning and milling and which carries the 3,000 kg (6,614 lb) turning load. The T Extreme is a 5-axis milling machine. Both share the listed spindle ceiling of 84 kW (112.6 hp) and magazines of up to 360 positions.
