Onsrud F98HM

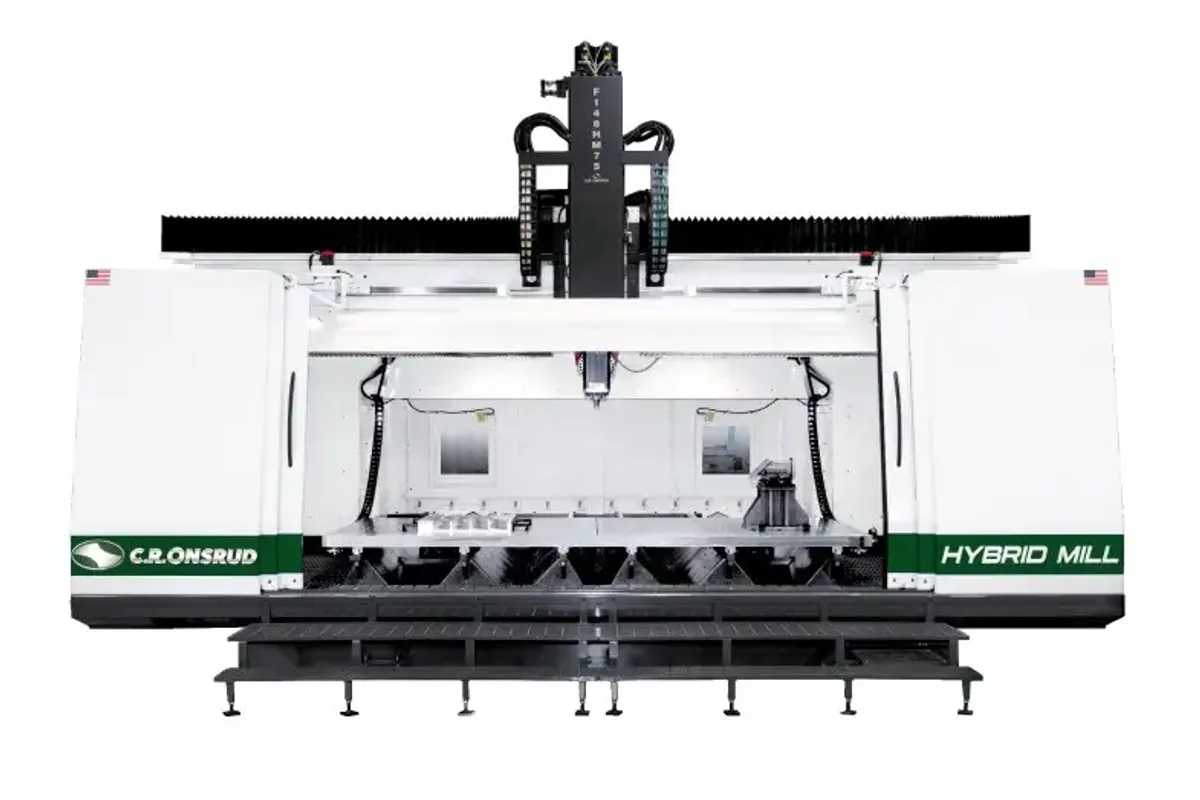

Image: cronsrud.com, Onsrud
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
x table size x
x table size y
u table size x
How much does the Onsrud F98HM cost?
Price estimate
We do not have a price for the Onsrud F98HM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Onsrud F98HM is the smaller of two HM-Series hybrid mills: a fully enclosed machine with twin tables of 60 in (1,524 mm) by 48 in (1,220 mm) each, a 40 in (1,016 mm) Z-stroke and a 33 hp (24.6 kW), 24,000 rpm spindle. Onsrud lists it with its 5-axis mills.
Hybrid is the maker's word for a machine that has the torque for metal without giving up the speed needed for aluminum and composites. That is why the series offers two spindles of very different character: the standard 33 hp unit at 24,000 rpm and a 75 hp (55.9 kW) unit at 18,000 rpm.
It is equipped like a machining center. Twenty-four tools are standard. Flood coolant, MQL, through-spindle coolant or cold air blast can be fitted, and chips go to an under-floor management system inside the enclosure. Part holding can be a vacuum table, T-slots, custom bolt patterns or steel slab tables.
The twin tables run pendulum fashion or, with the optional second spindle, both at once. The machine is 204 in (5,182 mm) long, 301 in (7,646 mm) wide and 187 in (4,750 mm) high. Onsrud's table gives no vacuum zone count for this series, which fits a machine where much of the work is bolted down.
Full Specifications
| Parameter | Value |
|---|---|
| X Table Size X | 60 in (1,524 mm) |
| X Table Size Y | 48 in (1,220 mm) |
| U Table Size X | 60 in (1,524 mm) |
| U Table Size Y | 48 in (1,220 mm) |
| Machine Length | 204 in (5,182 mm) |
| Machine Width | 301 in (7,646 mm) |
| Machine Height | 187 in (4,750 mm) |
| Spindle Motor Power | 33 hp (24.6 kW) |
| Max Spindle Speed | 24,000 rpm |
| Tool Capacity | 24 (larger capacity tool changers optional) |
| Z Stroke | 40 in (1,016 mm) |
| Spindle Power Optional | 75 hp (55.9 kW) |
| Spindle Speed Optional | 18,000 rpm |
| Spindles Optional | 2 |
| Second Tool Changer | Optional |
Specifications sourced from cronsrud.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Fully enclosed, with wet or dry machining options including through-spindle coolant
- 24 tools as standard, with larger changers optional
- 33 hp (24.6 kW) at 24,000 rpm, or 75 hp (55.9 kW) at 18,000 rpm
- Twin tables with a 40 in (1,016 mm) Z-stroke
Limitations
- Each table is 60 in (1,524 mm) by 48 in (1,220 mm)
- 301 in (7,646 mm) wide and 187 in (4,750 mm) high
- No vacuum zone count is published for the series
Best For
Frequently Asked Questions
01
Two tables, which Onsrud names X and U, each 60 in (1,524 mm) by 48 in (1,220 mm). The Z-stroke is 40 in (1,016 mm).
02
Onsrud states that the HM-Series can be equipped with flood coolant, MQL, through-spindle coolant or cold air blast, to match wet and dry machining requirements.
03
Table depth and width of machine. The F148HM has 60 in (1,524 mm) by 72 in (1,829 mm) tables and is 333 in (8,459 mm) wide; the F98HM is 301 in (7,646 mm) wide. Both are 204 in (5,182 mm) long.
04
A vacuum table, T-slot, custom bolt patterns and steel slab tables are named by Onsrud, the last for large and heavy material loads. The machine is engineered to order.
