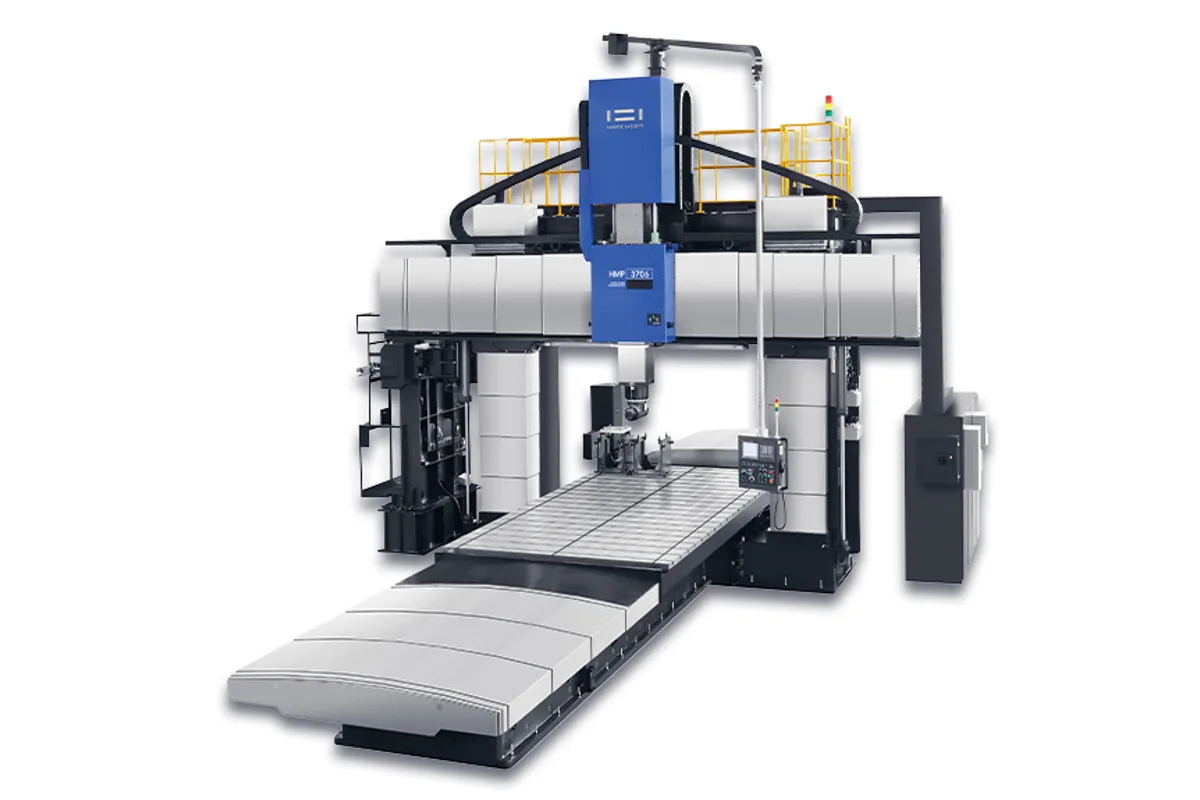

Hwacheon MP+3710
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon MP+3710 cost?
Price estimate
We do not have a price for the Hwacheon MP+3710 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon MP+3710 is the long-bed version of Hwacheon's MP+ double-column machines, with a 10,000 x 3,100 mm (393.7 x 122.05 in) table rated 40 t (88,184 lb) and 10,650 mm (419.29 in) of X travel. Y travel is 4,500 mm (177.17 in), Z is 1,000 mm (39.37 in) and a W axis adds 1,100 mm (43.31 in) of vertical stroke.
A 10 m table opens two ways of working. One is the single long part: rails, beds, shipbuilding and energy-sector frames that need one setup along their full length. The other is a row of mid-size castings clamped along the table and machined in one run, which cuts the number of times the operator has to stop the machine to reload. Either way the floor plan has to allow for it, because the machine occupies 26,300 x 10,800 mm (1,035.43 x 425.2 in) and weighs 130,000 kg (286,601 lb). Its height is 7,780 mm (306.3 in).
Set against the MP+3706, which has a 6,000 x 3,100 mm (236.22 x 122.05 in) table rated 30 t (66,138 lb) and weighs 100,000 kg (220,462 lb), the MP+3710 adds length and load at the same width. Seventeen 28H7 T-slots at 200 mm pitch run its length, and the columns are 3,700 mm (145.67 in) apart.
Spindle and axes are unchanged across that step. The BT-50 spindle turns to 4,000 rpm at 37 / 30 kW (49.92 / 40.23 hp) on a 400 mm (15.75 in) ram, and the spindle centre ranges -270 to 1,830 mm (-10.63 to 72.05 in) from the table. Rapids are 16 / 16 / 12 / 3 m/min (630 / 630 / 472 / 118 ipm) on X, Y, Z and W, and cutting feed reaches 10 m/min (394 ipm) on X, Y and Z. At 16 m/min a full X traverse takes a noticeable part of a minute, which matters on drilling patterns spread along the whole table.
The magazine starts at 40 tools and can be extended to 60, 90 or 120, for tools up to 400 mm (15.75 in) long and 25 kg (55 lb). The machine needs 130 kVA at 380V, 60Hz, air at 5 to 7 kg/cm² x 690 Nℓ/min, and holds 800 L (211 US gal) of coolant. Control is FANUC 31i-B.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 10,650 mm (419.29 in) |
| Y Axis Travel | 4,500 mm (177.17 in) |
| Z Axis Travel | 1,000 mm (39.37 in) |
| W Axis Travel | 1,100 mm (43.31 in) |
| Width Between Columns | 3,700 mm (145.67 in) |
| Distance Spindle Center to Table | -270 ~ 1,830 mm (-10.63 ~ 72.05 in) |
| Distance Column to Spindle Center | 625 mm (24.61 in) |
| Table Size | 10,000 x 3,100 mm (393.7 x 122.05 in) |
| Max Table Load | 40 t (88,184 lb) |
| T-Slots | 28H7 x 200 mm, 17 slots (width x pitch) |
| Max Spindle Speed | 4,000 rpm |
| Spindle Motor Power | 37 / 30 kW (49.92 / 40.23 hp) |
| Ram Size | 400 mm (15.75 in) |
| Spindle Taper | 7 / 24 Taper BT-50 |
| Rapid Traverse Xyzw | 16 / 16 / 12 / 3 m/min (630 / 630 / 472 / 118 ipm) |
| Cutting Feed Rate Xyzw | 10 / 10 / 10 / 3 m/min (394 / 394 / 394 / 118 ipm) |
| Tool Capacity | 40 (60, 90, 120 opt.) |
| Max Tool Diameter (full magazine) | Ø130 / Ø250 mm (Ø5.12 / Ø9.84 in), with / without adjacent tools |
| Max Tool Length | 400 mm (15.75 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Coolant Pump Motor | 2.5 kW (3.35 hp), ram |
| Coolant Tank | 800 L (211 US gal) |
| Power Requirement | 130 kVA |
| Power Supply | 380V, 60Hz |
| Air Supply | 5~7 kg/cm² x 690 Nℓ/min |
| Machine Height | 7,780 mm (306.3 in) |
| Machine Dimensions | 26,300 x 10,800 mm (1,035.43 x 425.2 in) (length x width) |
| Machine Weight | 130,000 kg (286,601 lb) |
| CNC Control | FANUC 31i-B |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 10,000 x 3,100 mm (393.7 x 122.05 in) table rated 40 t (88,184 lb), the longest of the three MP+ models
- 10,650 mm (419.29 in) of X travel for one-setup machining of long parts
- BT-50 spindle rated 37 / 30 kW (49.92 / 40.23 hp) at up to 4,000 rpm
- Magazine of 40 tools, extendable to 60, 90 or 120
- 1,100 mm (43.31 in) W axis on top of 1,000 mm (39.37 in) of Z
Limitations
- Floor area of 26,300 x 10,800 mm (1,035.43 x 425.2 in) and a 130,000 kg (286,601 lb) machine weight
- X rapid of 16 m/min (630 ipm) over a 10,650 mm (419.29 in) stroke
- 4,000 rpm maximum spindle speed rules out small-tool high-speed work
- Table width of 3,100 mm (122.05 in) is narrower than the 3,400 mm (133.86 in) of the MP+3708G
Best For
Frequently Asked Questions
01
The table is 10,000 x 3,100 mm (393.7 x 122.05 in) and X travel is 10,650 mm (419.29 in), so a part close to the full table length can be machined in one setup. The table is rated 40 t (88,184 lb).
02
Table length, load and weight. The MP+3706 has a 6,000 x 3,100 mm (236.22 x 122.05 in) table rated 30 t (66,138 lb) and weighs 100,000 kg (220,462 lb). The MP+3710 has a 10,000 x 3,100 mm (393.7 x 122.05 in) table rated 40 t (88,184 lb) and weighs 130,000 kg (286,601 lb). Spindle and magazine are the same.
03
The MP+3708G has a shorter but wider 8,000 x 3,400 mm (314.96 x 133.86 in) table, also rated 40 t (88,184 lb), with a 35 / 22 kW (46.91 / 29.49 hp) spindle and 32 tools. The MP+3710 is the choice for length, with its 10,000 mm (393.7 in) table, 37 / 30 kW (49.92 / 40.23 hp) and 40 tools.
04
A 7 / 24 taper BT-50 spindle to 4,000 rpm rated 37 / 30 kW (49.92 / 40.23 hp), carried on a 400 mm (15.75 in) ram. Tools may be up to Ø250 mm (Ø9.84 in) with the adjacent pockets empty, 400 mm (15.75 in) long and 25 kg (55 lb).
05
A floor area of 26,300 x 10,800 mm (1,035.43 x 425.2 in), 7,780 mm (306.3 in) of height and a foundation for 130,000 kg (286,601 lb). Power is 130 kVA at 380V, 60Hz, and air is 5 to 7 kg/cm² at 690 Nℓ/min.
