Hwacheon MEGAII-100

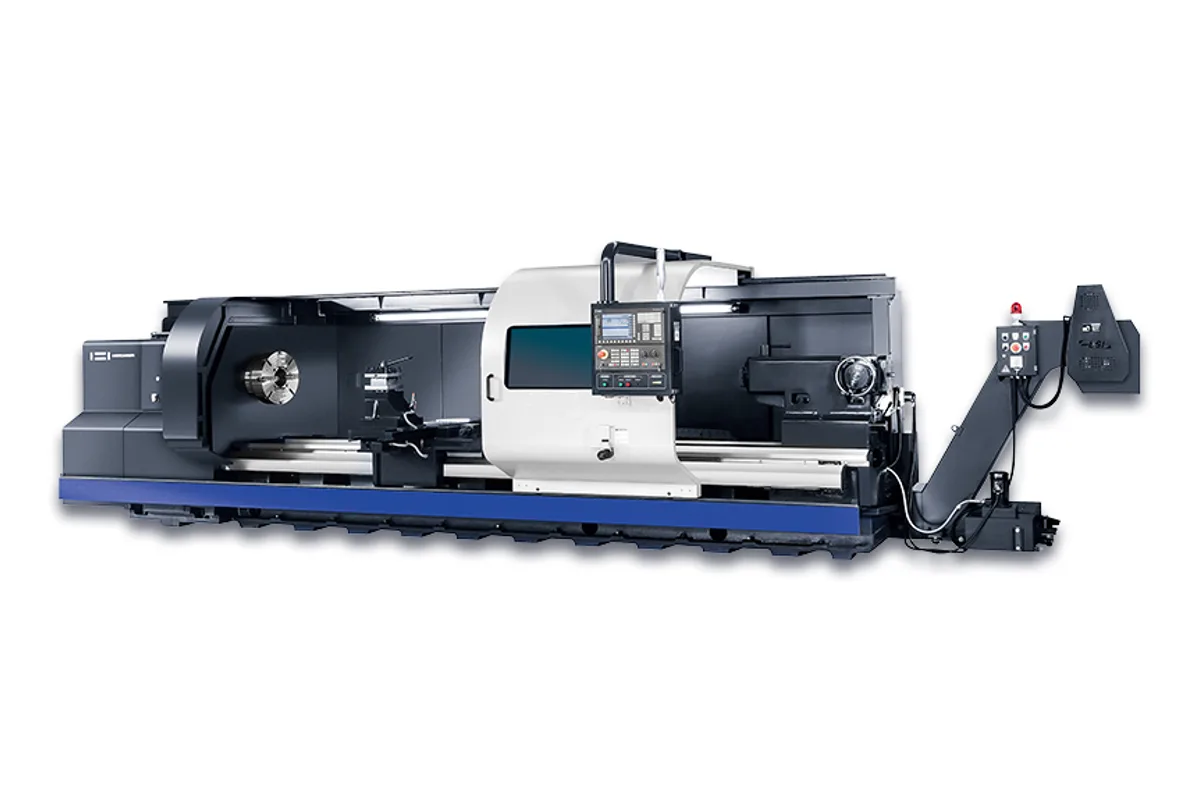

Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Power
swing over bed
swing over cross slide
max turning diameter
distance between centers
How much does the Hwacheon MEGAII-100 cost?
Price estimate
We do not have a price for the Hwacheon MEGAII-100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon MEGAII-100 is the smallest of three MEGAII heavy lathes, with a Ø1,000 mm (Ø39.37 in) swing over the bed, 400 mm (15.75 in) of X travel and centre distances from 3,000 to 10,000 mm (118.11 to 393.7 in). Its bigger brothers, the MEGAII-120 and MEGAII-140, share the bed, headstock and tailstock and differ mainly in swing and X stroke.
Against the MEGA+100, the MEGAII-100 is a step up in how hard it can be worked. The MEGA+100 has an 18 in chuck and 22 / 18.5 kW (29.5 / 24.8 hp) with FANUC on a manual tool post. The MEGAII-100 brings a 24 in chuck, 45 / 37 kW (60.3 / 49.6 hp), a hydraulic 4-way square tool post of □200 mm taking □40 mm shanks, and a rated workpiece weight of 8 t (17,637 lb). The bed is 1,000 mm (39.37 in) wide with three ways.
Over the cross slide the table lists the swing as a range, Ø200 ~ Ø700 mm (Ø7.87 ~ Ø27.56 in), without saying what sets the two ends, so confirm the usable diameter over the carriage against your largest part before ordering. Spindle choices are Ø155, Ø255 or Ø320 mm bores, the first two on A2-15 noses and the last on A2-20, with top speeds of 750, 650 and 400 rpm and torque of 941, 1,168 and 1,756 kgf·m (9,228 / 11,454 / 17,220 Nm).
Rapids are 6 m/min (236.22 ipm) in X and in Z up to the 5000 bed, with Z at 5 m/min (196.85 ipm) on longer beds. The control is a FANUC 0i-TF Plus on 220 V, 60 Hz, at 76 to 90 kVA depending on bed length. The machine stands 2,310 mm (90.94 in) high, the lowest of the three sizes, and the table gives no weight.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø1,000 mm (Ø39.37 in) |
| Swing Over Cross Slide | Ø200 ~ Ø700 mm (Ø7.87 ~ Ø27.56 in) |
| Max Turning Diameter | Ø1,000 mm (Ø39.37 in) over bed |
| Distance Between Centers | 3,000 / 4,000 / 5,000 / 6,000 / 7,000 / 8,000 / 10,000 mm (118.11 / 157.48 / 196.85 / 236.22 / 275.59 / 314.96 / 393.7 in) |
| Max Workpiece Weight | 8 t (17,637 lb) |
| X Axis Travel | 400 mm (15.75 in) |
| Z Axis Travel | 3,000 / 4,000 / 5,000 / 6,000 / 7,000 / 8,000 / 10,000 mm (118.11 / 157.48 / 196.85 / 236.22 / 275.59 / 314.96 / 393.7 in) |
| Chuck Size | 24 in |
| Spindle Nose | A2-15 (Ø155, Ø255 bore) / A2-20 (Ø320 bore) |
| Spindle Bore | Ø155 / Ø255 / Ø320 mm (Ø6.1 / Ø10.0 / Ø12.6 in) |
| Spindle Torque | 941 kgf·m (Ø155 bore) / 1,168 kgf·m (Ø255) / 1,756 kgf·m (Ø320) (9,228 / 11,454 / 17,220 Nm) |
| Spindle Speed Ranges | Auto 3-steps |
| Max Spindle Speed | 5 ~ 750 rpm (Ø155 bore) / 5 ~ 650 rpm (Ø255) / 5 ~ 400 rpm (Ø320) |
| Spindle Motor Power | 45 / 37 kW (60.3 / 49.6 hp) |
| Rapid Traverse X | 6 m/min (236.22 ipm) |
| Rapid Traverse Z | 6 m/min (236.22 ipm) on the 3000-5000 beds; 5 m/min (196.85 ipm) on the 6000-10000 beds |
| Tool Post | Hydraulic 4-way (square) tool post, □200 mm |
| Turret Stations | 4 tools |
| Tool Shank Size | □40 mm |
| Tailstock | Built-in type |
| Tailstock Quill Diameter | Ø200 mm (Ø7.87 in); Ø250 mm (Ø9.84 in) on the 10000 bed |
| Tailstock Center | MT No.6 |
| Tailstock Quill Travel | 260 mm (10.24 in) |
| Bed Width | 1,000 mm (39.37 in) |
| Bed Length | 5,492 to 12,492 mm (216.22 to 491.81 in) depending on centre distance |
| Bed Type | 3-Way (1-Bed) |
| Cross Slide | Short Carriage / Square |
| Coolant Tank | 220 to 570 L (58 to 151 gal) depending on bed length |
| Power Requirement | 76 kVA on 3000-5000 beds; 84 kVA on 6000; 90 kVA on 7000-10000; 220 V, 60 Hz |
| Machine Dimensions | 7,992 to 14,992 x 3,400 x 2,310 mm (314.65 to 590.24 x 133.86 x 90.94 in) (L x W x H) |
| CNC Control | FANUC 0i-TF Plus |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Hydraulic 4-way tool post of □200 mm with □40 mm shanks
- Rated for workpieces of 8 t (17,637 lb)
- Up to 1,756 kgf·m (17,220 Nm) with the Ø320 mm bore
- Seven centre distances from 3,000 to 10,000 mm (118.11 to 393.7 in)
- 24 in chuck and 45 / 37 kW (60.3 / 49.6 hp), against 18 in and 22 / 18.5 kW (29.5 / 24.8 hp) on the MEGA+100
Limitations
- Only 400 mm (15.75 in) of X travel, the shortest of the MEGAII sizes
- Four tool positions; no turret
- Speed falls to 400 rpm with the Ø320 mm bore
- The table gives no machine weight
Best For
Frequently Asked Questions
01
Swing and X travel. The MEGAII-100 swings Ø1,000 mm (Ø39.37 in) with 400 mm (15.75 in) of X. The MEGAII-120 swings Ø1,200 mm with 500 mm of X, and the MEGAII-140 Ø1,400 mm with 600 mm of X. Spindle, chuck, tool post, bed and tailstock are the same on all three.
02
A 24 in chuck instead of 18 in, 45 / 37 kW (60.3 / 49.6 hp) instead of 22 / 18.5 kW (29.5 / 24.8 hp) with FANUC on the MEGA+100, and a hydraulic □200 mm tool post for □40 mm shanks. It also carries a stated workpiece rating of 8 t (17,637 lb).
03
A 4-way square tool post of □200 mm that indexes hydraulically, holding four □40 mm shank tools. Four positions cover a roughing, finishing, grooving and threading set on a shaft, but a part needing more tools needs a manual change.
04
Three bores. Ø155 mm (Ø6.1 in): A2-15, 750 rpm, 941 kgf·m (9,228 Nm). Ø255 mm (Ø10.0 in): A2-15, 650 rpm, 1,168 kgf·m (11,454 Nm). Ø320 mm (Ø12.6 in): A2-20, 400 rpm, 1,756 kgf·m (17,220 Nm). All use a three-step automatic gearbox and 45 / 37 kW (60.3 / 49.6 hp).
