Hwacheon VT-4500

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

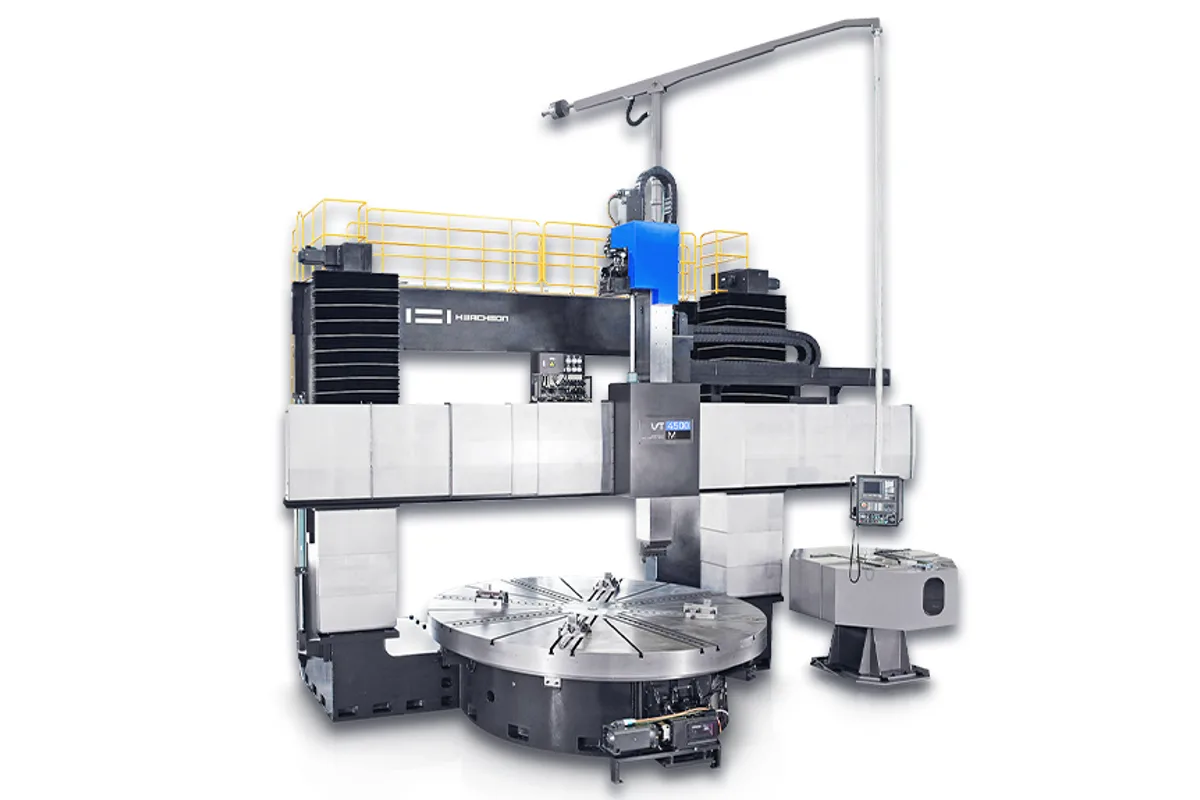

Image: hwacheon.com, Hwacheon

Key Specifications

Tool Capacity

Table Size

Ø4,500 mm (Ø177.2 in)

Rapid Traverse

6 / 6 / 0.5 m/min (236 / 236 / 20 ipm) (X / Z / W)

variants

VT-4500 (Milling)

swing over bed

Ø5,000 mm (Ø196.9 in)

max turning diameter

Ø5,000 mm (Ø196.9 in)

How much does the Hwacheon VT-4500 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon VT-4500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon VT-4500 is a very large ram-type vertical lathe: a Ø4,500 mm (Ø177.2 in) table, Ø5,000 mm (Ø196.9 in) maximum turning diameter, 2,500 mm (98.4 in) maximum turning height and a 40,000 kgf (88,184 lb) table load. Like the VT-3000 it is listed only in milling form, the VT-4500 (Milling), with a SIEMENS 840D sl control.

What separates it from the VT-3000 is the table drive. The VT-4500 table runs at 1 ~ 50 rpm in 2 steps, half the top speed of the smaller machine, and in exchange the 129 / 105 kW (173.0 / 140.8 hp) motor and double-pinion drive deliver 162,268 Nm (119,689 lb-ft). On a Ø5,000 mm part, 50 rpm is still a fast surface speed at the rim; the figure that limits the work is torque, and this machine has more of it for heavy cuts at large radius. The VT-3000, for comparison, gives 100,299 Nm (73,981 lb-ft) and carries 30,000 kgf (66,138 lb).

To reach the larger diameter the ram stroke on X is -250 ~ 4,100 mm (-9.8 ~ 161.4 in). Z is 1,500 mm (59.1 in) on a □350 mm (□13.8 in) ram, and the cross rail travels 2,000 mm (78.7 in) on W. Rapids are 6 / 6 / 0.5 m/min (236 / 236 / 20 ipm) on X, Z and W. Milling uses a 38 / 30 kW (51.0 / 40.2 hp) BT-50 spindle to 1,500 rpm, and the C axis indexes in 0.001° steps at up to 0.5 rpm with 0 ~ 180 deg/min of cutting feed.

The 12-tool magazine takes □50 mm turning tools and milling tools up to 415 mm (16.3 in) long and 100 kgf (220 lb), Ø180 mm (Ø7.1 in) with adjacent pockets full or Ø350 mm (Ø13.8 in) with them empty. Planning starts with the building: 140,000 kg (308,644 lb) of machine, 9,800 mm (385.8 in) of height and 11,500 x 7,500 mm (452.8 x 295.3 in) of floor, fed by 200 kVA at 380 V, 60 Hz and 5 ~ 7 bar air.

Full Specifications

Parameter	Value
Variants	VT-4500 (Milling)
Swing Over Bed	Ø5,000 mm (Ø196.9 in)
Max Turning Diameter	Ø5,000 mm (Ø196.9 in)
Max Turning Height	2,500 mm (98.4 in)
Table Size	Ø4,500 mm (Ø177.2 in)
Table Speed Max	1 ~ 50 rpm, 2 steps
Table Motor	129 / 105 kW (173.0 / 140.8 hp)
Max Table Torque	162,268 Nm (119,689 lb-ft)
Max Table Load	40,000 kgf (88,184 lb)
C Axis Drive	Double pinion
C Axis	0.001° indexing, 0.5 rpm max, 0 ~ 180 deg/min cutting feed
X Axis Travel	-250 ~ 4,100 mm (-9.8 ~ 161.4 in) (ram)
Z Axis Travel	1,500 mm (59.1 in) (ram)
W Axis Travel	2,000 mm (78.7 in) (cross rail)
Rapid Traverse Rate	6 / 6 / 0.5 m/min (236 / 236 / 20 ipm) (X / Z / W)
Ram Size	□350 mm (□13.8 in)
Milling Spindle Taper	BT-50
Milling Spindle Motor	38 / 30 kW (51.0 / 40.2 hp)
Milling Spindle Speed Max	1,500 rpm
Tool Capacity	12
Turning Tool Size	□50 mm (mm type)
Max Tool Diameter (full magazine)	Ø180 / Ø350 mm (Ø7.1 / Ø13.8 in) (adjacent pockets full / empty)
Max Tool Length	415 mm (16.3 in)
Max Tool Weight	100 kgf (220 lb)
Power Requirement	200 kVA, 380 V, 60 Hz
Air Supply	5 ~ 7 bar
Machine Height	9,800 mm (385.8 in)
Machine Dimensions	11,500 x 7,500 mm (452.8 x 295.3 in) (L x W)
Machine Weight	140,000 kg (308,644 lb)
CNC Control	SIEMENS 840D sl

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

Turns parts up to Ø5,000 mm (Ø196.9 in) on a Ø4,500 mm (Ø177.2 in) table
Table load of 40,000 kgf (88,184 lb)
162,268 Nm (119,689 lb-ft) of table torque from a 129 / 105 kW (173.0 / 140.8 hp) motor
X stroke of -250 ~ 4,100 mm (-9.8 ~ 161.4 in) on a □350 mm (□13.8 in) ram
BT-50 milling spindle and 0.001° C axis on every machine

Limitations

Table speed is limited to 1 ~ 50 rpm
Rapids are 6 m/min (236 ipm) on X and Z and 0.5 m/min (20 ipm) on the cross rail
The magazine holds 12 tools
Weighs 140,000 kg (308,644 lb) and stands 9,800 mm (385.8 in) tall, so the building must be checked before ordering

Best For

Very large rings and discs up to Ø5,000 mm (Ø196.9 in) Workpieces up to 40,000 kgf (88,184 lb) Heavy cuts at large radius that need high table torque Turning and milling of large parts in a single setup

Frequently Asked Questions

01 How does the VT-4500 differ from the VT-3000?

The VT-4500 has a Ø4,500 mm (Ø177.2 in) table and turns Ø5,000 mm (Ø196.9 in), against Ø3,000 mm (Ø118.1 in) and Ø4,000 mm (Ø157.5 in) on the VT-3000. Against the VT-3000 it carries 40,000 kgf instead of 30,000 kgf, gives 162,268 Nm of torque instead of 100,299 Nm, and tops out at 50 rpm instead of 100 rpm.

02 What table speed and torque does the VT-4500 have?

1 ~ 50 rpm in 2 steps, from a 129 / 105 kW (173.0 / 140.8 hp) motor through a double-pinion drive, with 162,268 Nm (119,689 lb-ft) of torque. On the largest diameters even 50 rpm gives a high surface speed, so torque rather than speed sets the limit.

03 What milling capability does the VT-4500 have?

A 38 / 30 kW (51.0 / 40.2 hp) milling spindle with a BT-50 taper, running to 1,500 rpm. The C axis indexes in 0.001° steps, turns at up to 0.5 rpm and feeds at 0 ~ 180 deg/min. Milling tools can weigh up to 100 kgf (220 lb).

04 What does a VT-4500 installation require?

A foundation for 140,000 kg (308,644 lb), 9,800 mm (385.8 in) of height and 11,500 x 7,500 mm (452.8 x 295.3 in) of floor. Power is 200 kVA at 380 V, 60 Hz, and the air supply 5 ~ 7 bar.
