Hwacheon MEGA+100
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Power
swing over bed
swing over cross slide
max turning diameter
distance between centers
How much does the Hwacheon MEGA+100 cost?
Price estimate
We do not have a price for the Hwacheon MEGA+100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

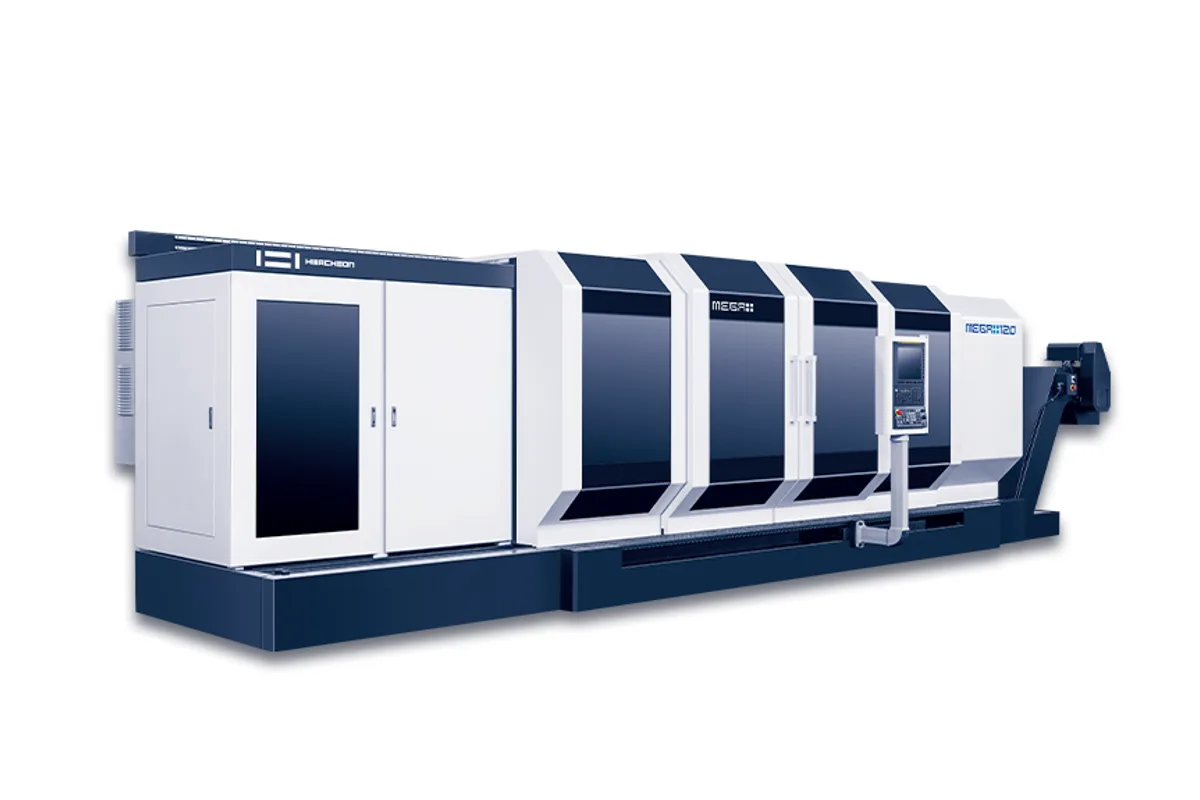

The Hwacheon MEGA+100 is the entry size of Hwacheon's MEGA+ family of 2-way flat-bed horizontal CNC lathes. Hwacheon positions it for precision shaft-type work such as main shafts and large pipes for the shipbuilding, wind power, aerospace and general industrial sectors. It swings Ø1,080 mm over the bed and Ø720 mm over the cross slide, turns up to Ø700 mm over the cross slide, and is offered with 3,000, 4,000, 5,000 or 6,000 mm between centres, with Z travel matching the centre distance and 565 mm of X travel.
The headstock carries an 18 in chuck and is available with three spindle bores, Ø155 and Ø255 mm on an A2-15 nose or Ø320 mm on an A2-20 nose. Top speed falls as the bore grows, from 5-750 rpm with the Ø155 bore to 5-400 rpm with the Ø320 bore, through an automatic 3-step gear range. The spindle motor is rated 22 / 18.5 kW on the FANUC build and 23 / 18.5 kW on the SIEMENS build.
Tooling is a manual 4-way square tool post for □32 mm shanks, and a built-in tailstock with a Ø200 mm MT No.6 quill and 260 mm of quill travel supports long work. Hwacheon describes a high-rigidity box-way feed system on a one-piece bed, built for stable heavy cutting and low thermal drift over long cycles. Rapids are 6 m/min on both axes. Control is FANUC 0i-TF Plus, with SIEMENS 828D listed as the alternative, and the machine weighs 12,400 to 16,900 kg depending on bed length.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø1,080 mm (Ø42.52 in) |
| Swing Over Cross Slide | Ø720 mm (Ø28.35 in) |
| Max Turning Diameter | Ø1,080 mm (Ø42.52 in) over bed; Ø700 mm (Ø27.56 in) over cross slide |
| Distance Between Centers | 3,000 / 4,000 / 5,000 / 6,000 mm (118.11 / 157.48 / 196.85 / 236.22 in) |
| Chuck Size | 18 in |
| X Axis Travel | 565 mm (22.24 in) |
| Z Axis Travel | 3,000 / 4,000 / 5,000 / 6,000 mm (118.11 / 157.48 / 196.85 / 236.22 in) |
| Spindle Nose | A2-15 (Ø155, Ø255 bore) / A2-20 (Ø320 bore) |
| Max Spindle Speed | 5 ~ 750 rpm (Ø155 bore) / 5 ~ 650 rpm (Ø255) / 5 ~ 400 rpm (Ø320) |
| Spindle Bore | Ø155 / Ø255 / Ø320 mm (Ø6.1 / Ø10.04 / Ø12.59 in) |
| Spindle Speed Ranges | Auto 3 steps |
| Spindle Motor Power | FANUC: 22 / 18.5 kW (29.5 / 24.8 hp); SIEMENS: 23 / 18.5 kW (30.8 / 24.8 hp) |
| Rapid Traverse Xz | 6 / 6 m/min (236.22 / 236.22 ipm) X / Z; 6 / 5 m/min (236.22 / 196.85 ipm) on the 6000 bed |
| Cutting Feed Rate | 3,000 / 3,000 mm/min (118.11 / 118.11 ipm) X / Z |
| Tool Post | Manual 4-way (square) tool post |
| Turret Stations | 4 tool faces |
| Tool Shank Size | □32 mm |
| Tailstock | Built-in type |
| Tailstock Quill Diameter | Ø200 mm (Ø7.87 in) |
| Tailstock Quill Taper | MT No.6 |
| Tailstock Quill Travel | 260 mm (10.24 in) |
| Bed Width | 700 mm (27.56 in) |
| Bed Length | 5,410 / 6,410 / 7,410 / 8,410 mm (212.99 / 252.36 / 291.73 / 331.1 in) |
| Bed Type | 1 Bed, 2 Ways |
| Coolant Tank | 220 / 270 / 320 / 370 L (58 / 71 / 85 / 98 gal) |
| Power Requirement | 45 kVA (TR 50 kVA); 53 kVA (TR 55 kVA) on the 6000 bed; FANUC: 220 V, 60 Hz / SIEMENS: 380 V, 60 Hz |
| Machine Dimensions | 6,640 / 7,640 / 8,640 / 9,640 x 3,050 x 2,490 mm (261.42 / 300.79 / 340.16 / 379.53 x 120.08 x 98.03 in) L x W x H |
| Machine Weight | 12,400 / 13,900 / 15,400 / 16,900 kg (27,337 / 30,644 / 33,951 / 37,258 lb) for the 3000 / 4000 / 5000 / 6000 beds |
| CNC Control | FANUC 0i-TF Plus / (SIEMENS 828D) |
