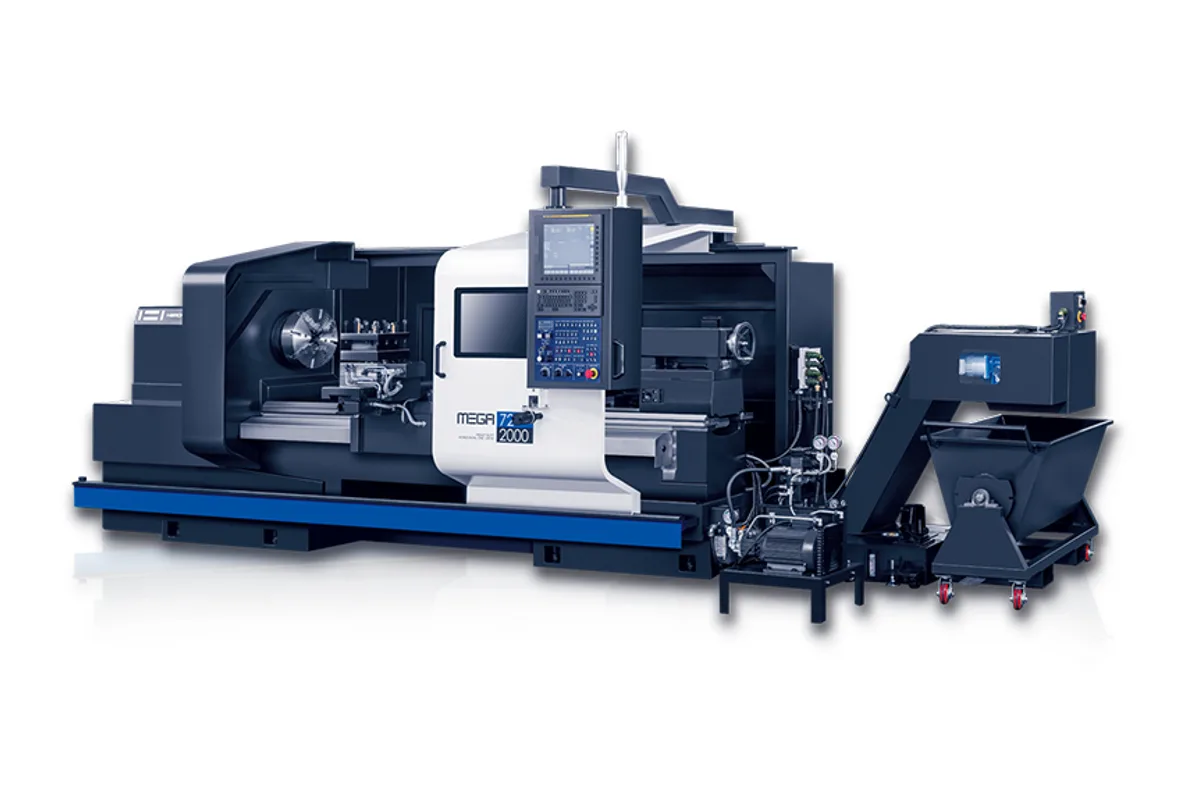

Hwacheon MEGA-72

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

5 ~ 1,500 rpm

Spindle Power

18.5 / 15 kW (24.8 / 20.1 hp)

swing over bed

Ø720 mm (Ø28.3 in)

swing over saddle

Ø480 mm (Ø18.9 in)

max turning diameter

Ø720 mm (Ø28.3 in) over bed; Ø470 mm (Ø18.5 in) over saddle

distance between centers

2,000 / 3,000 mm (78.7 / 118.1 in) (MEGA-72 2000 / 3000)

How much does the Hwacheon MEGA-72 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon MEGA-72 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon MEGA-72 is a compact flat-bed lathe from the MEGA family: a Ø720 mm (Ø28.3 in) swing, 2,000 or 3,000 mm (78.7 or 118.1 in) between centres, a 14 in chuck and an 18.5 / 15 kW (24.8 / 20.1 hp) spindle running from 5 to 1,500 rpm. Over the saddle the turning diameter is Ø470 mm (Ø18.5 in), so the full Ø720 mm (Ø28.3 in) is only for work that clears the carriage.

It is a CNC lathe in the manner of a manual engine lathe. Tools sit in a manual 4-way square tool post with four faces, taking □32 mm shanks, and the spindle has a manual two-step gear range. That suits one-off and repair work where an operator stays at the machine. It does not suit unattended production, because tool changes beyond four tools are done by hand.

The headstock has an A2-8 nose and a Ø90 mm (Ø3.5 in) bore. Load ratings depend on support: 1,100 kg (2,425 lb) between centres with the tailstock and 300 kg (661 lb) in the chuck alone, a gap worth keeping in mind for long, heavy shafts. The tailstock quill is Ø90 mm (Ø3.5 in) with an MT No.5 taper. X travel is 380 mm (15.0 in), Z travel 1,900 mm (74.8 in) on the 2000 bed and 2,900 mm (114.2 in) on the 3000, and both axes rapid at 6,000 mm/min (236 ipm) on a 510 mm (20.1 in) wide bed.

The standard control is a SIEMENS 828D, with a FANUC 0i-TF Plus as an option; the supply is 38 kVA at 380 V, 60 Hz, or 220 V, 60 Hz for the FANUC version. The machine weighs 4,810 kg (10,604 lb) on the 2000 bed and 5,500 kg (12,125 lb) on the 3000, with a floor area of 4,250 x 1,930 mm (167.3 x 76.0 in) or 5,250 x 1,930 mm (206.7 x 76.0 in) and a height of 1,970 mm (77.6 in).

Full Specifications

Parameter	Value
Swing Over Bed	Ø720 mm (Ø28.3 in)
Swing Over Saddle	Ø480 mm (Ø18.9 in)
Max Turning Diameter	Ø720 mm (Ø28.3 in) over bed; Ø470 mm (Ø18.5 in) over saddle
Distance Between Centers	2,000 / 3,000 mm (78.7 / 118.1 in) (MEGA-72 2000 / 3000)
Max Workpiece Weight	1,100 kg (2,425 lb) with tailstock support / 300 kg (661 lb) without
Chuck Size	14 in
Spindle Bore	Ø90 mm (Ø3.5 in)
Spindle Nose	A2-8
Max Spindle Speed	5 ~ 1,500 rpm
Spindle Speed Ranges	Manual 2 steps
Spindle Motor Power	18.5 / 15 kW (24.8 / 20.1 hp)
Tool Post	Manual 4-way (square) tool post
Turret Stations	4 tool faces
Tool Shank Size	□32 mm
Rapid Traverse Xz	6,000 / 6,000 mm/min (236 / 236 ipm)
X Axis Travel	380 mm (15.0 in)
Z Axis Travel	1,900 / 2,900 mm (74.8 / 114.2 in) (2000 / 3000 bed)
Tailstock Quill Diameter	Ø90 mm (Ø3.5 in)
Tailstock Quill Taper	MT No.5
Tailstock Travel	150 mm (5.9 in)
Bed Width	510 mm (20.1 in)
Bed Length	3,652 / 4,652 mm (143.8 / 183.1 in) (2000 / 3000 bed)
Bed Type	1 bed, 2 way
Coolant Tank	180 L (48 US gal)
Power Requirement	38 kVA; 380 V, 60 Hz (FANUC version: 220 V, 60 Hz)
Machine Dimensions	4,250 x 1,930 / 5,250 x 1,930 mm floor area (167.3 x 76.0 / 206.7 x 76.0 in); height 1,970 mm (77.6 in)
Machine Weight	4,810 / 5,500 kg (10,604 / 12,125 lb) (2000 / 3000 bed)
CNC Control	SIEMENS 828D / (Opt.: FANUC 0i-TF Plus)

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

Ø720 mm (Ø28.3 in) swing over the bed with 2,000 or 3,000 mm (78.7 or 118.1 in) between centres
Spindle range from 5 to 1,500 rpm with a manual two-step gearbox
Carries 1,100 kg (2,425 lb) between centres with tailstock support
Compact for its bed length: 4,810 kg (10,604 lb) and 1,970 mm (77.6 in) tall on the 2000 bed
SIEMENS 828D as standard, FANUC 0i-TF Plus as an option

Limitations

Manual 4-way tool post with four faces; no turret
Turning diameter over the saddle is only Ø470 mm (Ø18.5 in)
Ø90 mm (Ø3.5 in) spindle bore limits work through the spindle
Without tailstock support the load limit falls to 300 kg (661 lb)
Spindle gear range is changed by hand

Best For

Repair and one-off shaft work up to 2,900 mm (114.2 in) of Z travel Operator-attended turning with a manual tool post Workpieces up to 1,100 kg (2,425 lb) between centres Chucked parts up to Ø470 mm (Ø18.5 in) that must clear the saddle

Frequently Asked Questions

01 Does the MEGA-72 have a turret?

No. It uses a manual 4-way square tool post with four tool faces taking □32 mm shanks. That keeps the machine simple for one-off work, but a part needing more than four tools needs a tool change by hand during the cycle.

02 What bed lengths are available?

Two: the MEGA-72 2000 with 2,000 mm (78.7 in) between centres and 1,900 mm (74.8 in) of Z travel, and the MEGA-72 3000 with 3,000 mm (118.1 in) and 2,900 mm (114.2 in). Bed length is 3,652 mm (143.8 in) or 4,652 mm (183.1 in).

03 How heavy a part can it turn?

1,100 kg (2,425 lb) with the tailstock supporting the work, and 300 kg (661 lb) held in the 14 in chuck alone. Long or heavy parts therefore need a centre in the Ø90 mm (Ø3.5 in) MT No.5 quill.

04 How does the MEGA-72 compare with the MEGA+100?

The MEGA+100 is a size up: Ø1,080 mm (Ø42.52 in) over the bed against Ø720 mm (Ø28.3 in), an 18 in chuck against 14 in, and bore options of Ø155, Ø255 or Ø320 mm. The MEGA+100 tops out at 750 rpm, half the 1,500 rpm of the MEGA-72.

05 Which control and power supply does it use?

A SIEMENS 828D as standard, on 380 V, 60 Hz. With the optional FANUC 0i-TF Plus the supply is 220 V, 60 Hz. Either way the machine needs 38 kVA, and the coolant tank holds 180 L (48 US gal).
