Yamazaki Mazak CNC Lathes / Turning Centers

Mazak HQR-200MSY

Est. $280,000 - $450,000 Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

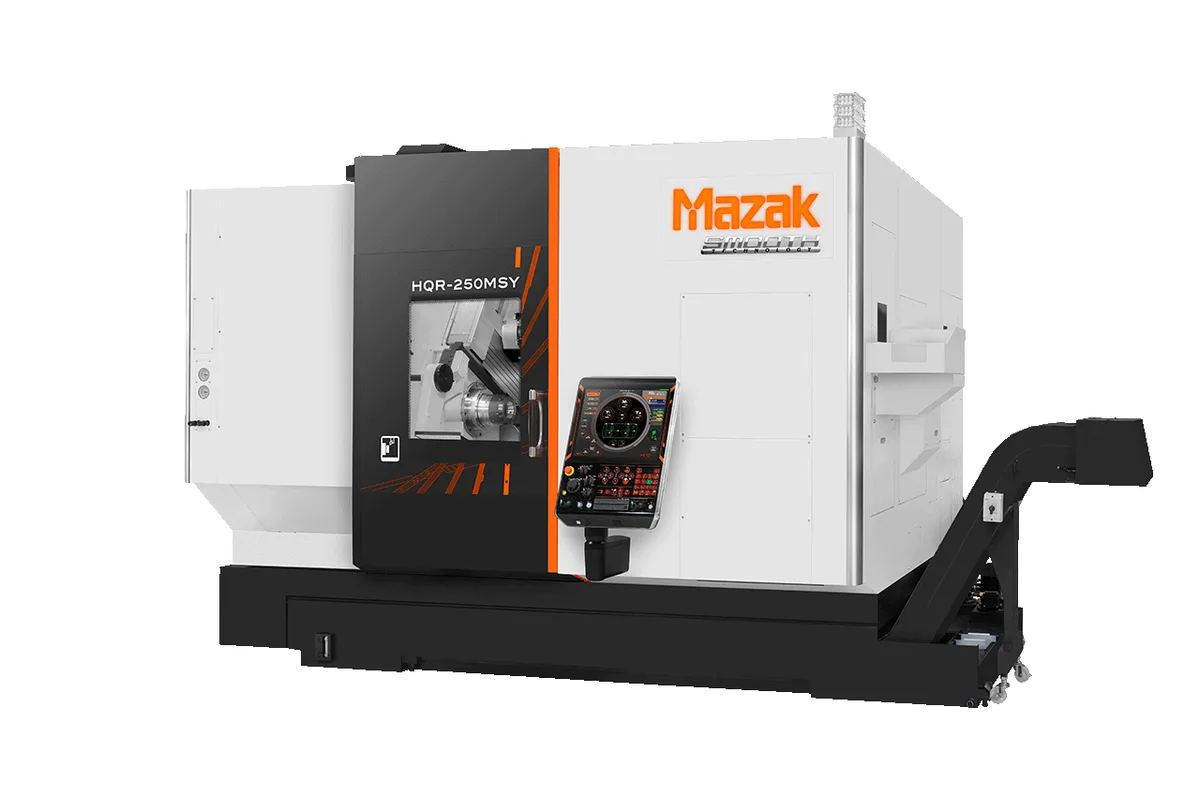

Image: mazak.com, Yamazaki Mazak

Key Specifications

Max Spindle

5,000 rpm

Spindle Power

15 kW (20 HP) continuous

bed length type

850U

chuck size

8 in

spindle max torque 25 pct ed

344 ft-lb (466 Nm) (25% ED)

spindle power intermittent

22 kW (30 HP) (30 min. rating)

How much does the Mazak HQR-200MSY cost?

Estimated price range

Est.$280,000 - $450,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak HQR-200MSY is the 8 in member of the HQR series: two matched spindles, each with an 8 in chuck, 5,000 rpm and 15 kW (20 HP) continuous, served by an upper and a lower turret of 12 tools each. Mazak lists it as Milling, Second Spindle, Y-axis. Because both spindles carry the same rating, either end of a part can take the heavy operation.

Main spindle torque peaks at 344 ft-lb (466 Nm) at 25% ED, and both spindles give 22 kW (30 HP) on the 30 min. rating. That is a clear step above the 6 in models: the HQR-150MSY, the stronger of those two, is rated 11 kW (15 HP) continuous and weighs 20,326 lb (9,220 kg), while the HQR-200MSY weighs 28,329 lb (12,850 kg). Above it sits the HQR-250MSY with a 10 in chuck, 4,000 rpm and 22 kW (30 HP) continuous.

The 850U bed class shows in the Z figures: 30 in (762 mm) for the upper turret and 32 in (813 mm) for the lower. X travel is 8 in (203 mm) above and 6 in (152 mm) below, and each turret has a 4 in (102 mm) Y-axis, ±2 in (51 mm). Boring bars go up to Ø2 in (51 mm) shank, with 1 in (25 mm) shank height for turning tools. Z rapids are 1,417 ipm (36 m/min) on both turrets.

Milling capability is light next to the turning spindles: 6,000 rpm, 2.2 kW (3 HP) continuous, 5.5 kW (7.5 HP) on the 10 min. rating and 26 ft-lb (35 Nm) on the 3 min. rating. On an 8 in machine that mismatch is worth knowing. The spindles can rough steel; the rotary tools are for drilling, tapping and finishing cuts.

Allow 138 in (3,505 mm) × 104 in (2,642 mm) of floor with the MAZATROL SmoothG control and 98 in (2,489 mm) of height.

Full Specifications

Parameter	Value
Bed Length Type	850U
Chuck Size	8 in
Max Spindle Speed	5,000 rpm
Spindle Max Torque 25 Pct Ed	344 ft-lb (466 Nm) (25% ED)
Spindle Power Intermittent	22 kW (30 HP) (30 min. rating)
Spindle Motor Power	15 kW (20 HP) continuous
Sub Spindle Chuck Size	8 in
Sub Spindle Speed	5,000 rpm
Sub Spindle Power Intermittent	22 kW (30 HP) (30 min. rating)
Sub Spindle Power	15 kW (20 HP) continuous
Turrets Tool Storage Capacity	12
Turrets Tool Shank Height	1 in (25 mm)
Turrets Boring Bar Shank Diameter	Ø2 in (51 mm)
Milling Spindle Speed	6,000 rpm
Rotary Tool Spindle Max Torque 3 Min Rating	26 ft-lb (35 Nm) (3 min. rating)
Rotary Tool Spindle Spindle Motor 10 Min Rating	5.5 kW (7.5 HP) (10 min. rating)
Milling Spindle Power	2.2 kW (3 HP) continuous
Travel X Axis Upper Turret Lower Turret	8 in (203 mm) / 6 in (152 mm)
Travel Y Axis Upper Turret Lower Turret	4 in (102 mm) (±2 in (51 mm)) / 4 in (102 mm) (±2 in (51 mm))
Travel Z Axis Upper Turret Lower Turret	30 in (762 mm) / 32 in (813 mm)
Rapid Traverse X Axis Upper Turret Lower Turret	1,181 ipm (30 m/min) / 945 ipm (24 m/min)
Rapid Traverse Y Axis Upper Turret Lower Turret	1,024 ipm (26 m/min) / 787 ipm (20 m/min)
Rapid Traverse Z Axis Upper Turret Lower Turret	1,417 ipm (36 m/min) / 1,417 ipm (36 m/min)
Floor Space Required	138 in (3,505 mm) × 104 in (2,642 mm) (W × L, MAZATROL SmoothG)
Machine Height	98 in (2,489 mm)
Machine Weight	28,329 lb (12,850 kg)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

Two matched spindles: 8 in chuck, 5,000 rpm and 15 kW (20 HP) continuous on each
Main spindle torque of 344 ft-lb (466 Nm) at 25% ED
Z travel of 30 in (762 mm) on the upper turret and 32 in (813 mm) on the lower
Turrets accept boring bars up to Ø2 in (51 mm) shank
Both turrets have a Y-axis of 4 in (102 mm), ±2 in (51 mm)

Limitations

Rotary tools are rated 2.2 kW (3 HP) continuous, small beside 15 kW (20 HP) continuous turning spindles
Lower turret X travel is 6 in (152 mm) against the upper turret's 8 in (203 mm)
At 28,329 lb (12,850 kg) it is far heavier than the HQR-150MSY at 20,326 lb (9,220 kg)
Bar feeders, work loaders and robots are options in the HQR series

Best For

Parts for an 8 in chuck that need equal cutting power on both ends Longer work that uses the 30 in (762 mm) and 32 in (813 mm) Z travels Balance cutting with both turrets on the main spindle, as Mazak describes for the series Two workpieces machined at once, one at each spindle

Frequently Asked Questions

01 How does the HQR-200MSY compare with the HQR-200 NEO?

Both have 8 in chucks, 5,000 rpm and 15 kW (20 HP) continuous. The clearest difference in the headline figures is mass: the HQR-200MSY weighs 28,329 lb (12,850 kg) and the HQR-200 NEO 34,832 lb (15,800 kg). The HQR-200MSY has an upper and a lower turret, each holding 12 tools.

02 What is the difference between the HQR-200MSY and the HQR-250MSY?

The HQR-250MSY has a 10 in chuck, a 4,000 rpm limit and 22 kW (30 HP) continuous, and weighs 29,211 lb (13,250 kg). The HQR-200MSY has an 8 in chuck and 15 kW (20 HP) continuous on both spindles, runs to 5,000 rpm and weighs 28,329 lb (12,850 kg). Choose on chuck size and on the speed the parts need.

03 How long a part can the HQR-200MSY machine?

Mazak's table for this model does not state a maximum turning length. The working figures are the Z travels, 30 in (762 mm) for the upper turret and 32 in (813 mm) for the lower, on the 850U bed class. Usable length between the two chucks depends on the workholding, so check it against the part drawing.

04 What power do the rotary tools have?

The rotary tool spindle runs to 6,000 rpm with a motor rated 2.2 kW (3 HP) continuous and 5.5 kW (7.5 HP) on the 10 min. rating. Maximum torque is 26 ft-lb (35 Nm) on the 3 min. rating. Plan milling work as drilling, tapping and light cuts.

05 How is the HQR-200MSY programmed?

Mazak describes conversational MAZATROL programming for the HQR series, in which the lower turret is called by adding a lower turret mark to the tool and balance cutting is selected on the turning program unit. Programs can also be written in EIA/ISO. The footprint row of the table names the MAZATROL SmoothG control.
