Hwacheon MEGA-T130

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

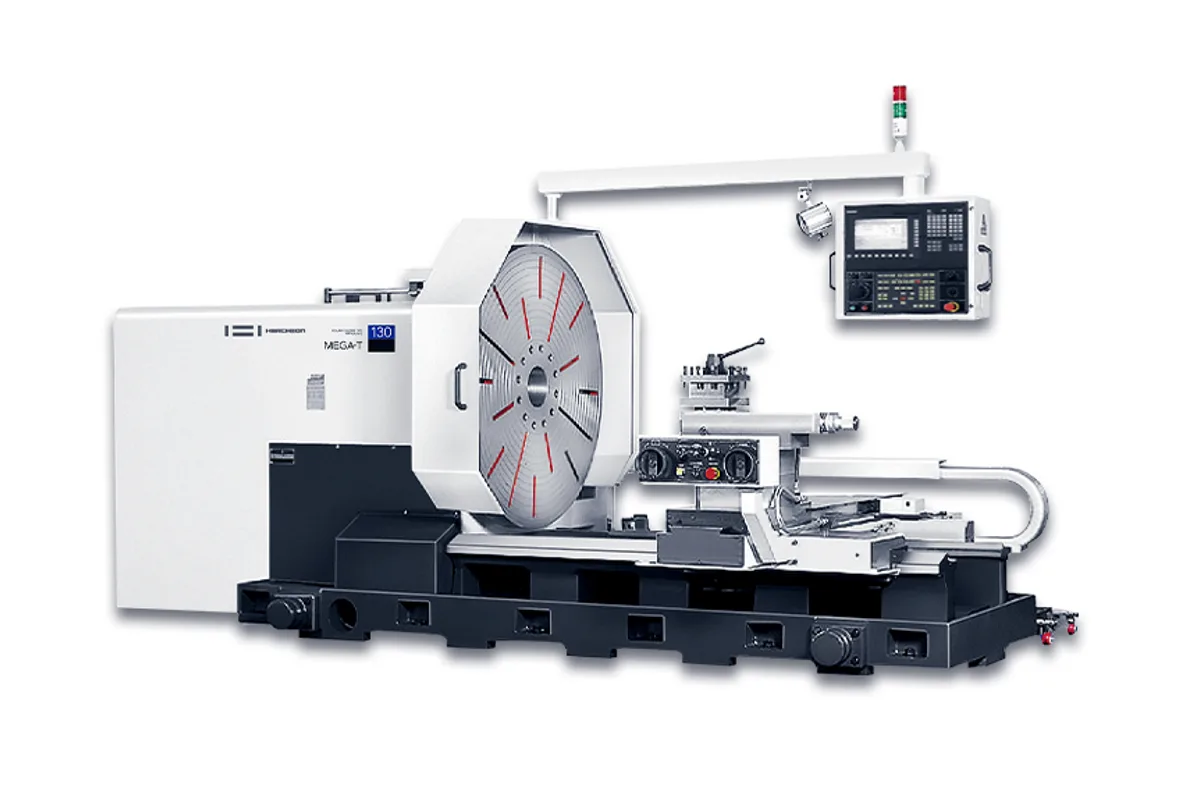

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

5 ~ 400 rpm (Ø155, Ø255, Ø320 bores)

Spindle Power

SIEMENS: 23 / 18.5 kW (30.8 / 24.8 hp); FANUC: 22 / 18.5 kW (29.5 / 24.8 hp)

swing over bed

Ø1,300 mm (Ø51.18 in)

swing over cross slide

Ø910 mm (Ø35.83 in)

max turning diameter

Ø1,300 mm (Ø51.18 in) over bed; Ø900 mm (Ø35.43 in) over cross slide

x axis travel

670 mm (26.38 in)

How much does the Hwacheon MEGA-T130 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon MEGA-T130 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon MEGA-T130 is a short-bed, large-swing lathe: Ø1,300 mm (Ø51.18 in) over the bed and Ø900 mm (Ø35.43 in) over the cross slide, but only 1,100 mm (43.31 in) of Z travel. Where the MEGA+ machines are built for long shafts, this one is proportioned for wide, short work such as flanges, wheels, rings and discs.

The bed is the giveaway. It is 900 mm (35.43 in) wide, wider than the 810 mm of the MEGA+140, yet only 3,720 mm (146.46 in) long, and X travel of 670 mm (26.38 in) reaches across the full face of a large part. The whole machine fits in 4,250 x 2,960 x 2,240 mm (167.32 x 116.54 x 88.19 in) and weighs 7,550 kg (16,645 lb).

The spindle is offered with the same three bores as the long-bed MEGA lathes, Ø155, Ø255 or Ø320 mm (Ø6.1 / Ø10.0 / Ø12.6 in), on A2-15 or (for the largest bore) A2-20 noses, but every version is limited to 5 to 400 rpm through a three-step automatic gearbox. Power is modest for the swing: 23 / 18.5 kW (30.8 / 24.8 hp) with the standard SIEMENS 828D, or 22 / 18.5 kW (29.5 / 24.8 hp) with the optional FANUC 0i-TF Plus. On a Ø1,300 mm (Ø51.18 in) part, 400 rpm is ample surface speed, so the power figure is the one that limits how hard the machine can rough.

Tools go in a manual 4-way square tool post with four faces for □32 mm shanks. Rapids are 4 m/min (157.48 ipm) on both axes and cutting feed reaches 3,000 mm/min (118.11 ipm). The table lists no chuck or tailstock, so both need to be specified with the order. The supply is 42 kVA (TR 45 kVA), at 380 V, 60 Hz for SIEMENS or 220 V, 60 Hz for FANUC, and the coolant tank is small at 93 L (25 gal).

Full Specifications

Parameter	Value
Swing Over Bed	Ø1,300 mm (Ø51.18 in)
Swing Over Cross Slide	Ø910 mm (Ø35.83 in)
Max Turning Diameter	Ø1,300 mm (Ø51.18 in) over bed; Ø900 mm (Ø35.43 in) over cross slide
X Axis Travel	670 mm (26.38 in)
Z Axis Travel	1,100 mm (43.31 in)
Spindle Nose	A2-15 (Ø155, Ø255 bore) / A2-20 (Ø320 bore)
Max Spindle Speed	5 ~ 400 rpm (Ø155, Ø255, Ø320 bores)
Spindle Bore	Ø155 / Ø255 / Ø320 mm (Ø6.1 / Ø10.0 / Ø12.6 in)
Spindle Speed Ranges	Auto 3 steps
Spindle Motor Power	SIEMENS: 23 / 18.5 kW (30.8 / 24.8 hp); FANUC: 22 / 18.5 kW (29.5 / 24.8 hp)
Rapid Traverse Xz	4 / 4 m/min (157.48 / 157.48 ipm)
Cutting Feed Rate	3,000 / 3,000 mm/min (118.11 / 118.11 ipm) X / Z
Tool Post	Manual 4-way (square) tool post
Turret Stations	4 tool faces
Tool Shank Size	□32 mm
Bed Width	900 mm (35.43 in)
Bed Length	3,720 mm (146.46 in)
Bed Type	1 Bed, 2 Ways
Coolant Tank	93 L (25 gal)
Power Requirement	42 kVA (TR 45 kVA); SIEMENS: 380 V, 60 Hz / FANUC: 220 V, 60 Hz
Machine Dimensions	4,250 x 2,960 x 2,240 mm (167.32 x 116.54 x 88.19 in) L x W x H
Machine Weight	7,550 kg (16,645 lb)
CNC Control	SIEMENS 828D / (FANUC 0i-TF Plus)

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

Ø1,300 mm (Ø51.18 in) swing over the bed and Ø900 mm (Ø35.43 in) over the cross slide
670 mm (26.38 in) of X travel for facing large diameters
900 mm (35.43 in) wide bed in a 4,250 mm (167.32 in) long machine
Spindle bores of Ø155, Ø255 or Ø320 mm (Ø6.1 / Ø10.0 / Ø12.6 in)
7,550 kg (16,645 lb) and 42 kVA, light on foundation and supply for the swing

Limitations

Only 1,100 mm (43.31 in) of Z travel
Spindle limited to 400 rpm on every bore option
23 / 18.5 kW (30.8 / 24.8 hp) at most, well below the 45 / 37 kW (60.3 / 49.6 hp) FANUC rating of the MEGA+140
Manual 4-way tool post with four faces, and 4 m/min (157.48 ipm) rapids
No chuck or tailstock is listed in the table

Best For

Flanges, rings and discs up to Ø900 mm (Ø35.43 in) over the cross slide Facing large diameters with 670 mm (26.38 in) of X travel Short heavy parts up to 1,100 mm (43.31 in) long Shops with limited floor space that need a Ø1,300 mm (Ø51.18 in) swing

Frequently Asked Questions

01 What kind of work is the MEGA-T130 made for?

Large-diameter, short parts. It swings Ø1,300 mm (Ø51.18 in) over the bed and Ø900 mm (Ø35.43 in) over the cross slide, but Z travel is only 1,100 mm (43.31 in). Flanges, wheels and discs fit it well; long shafts belong on the MEGA+ machines.

02 How does the MEGA-T130 compare with the MEGA+140?

The MEGA+140 swings more, Ø1,400 mm (Ø55.12 in), and offers 3,000 to 10,000 mm of centre distance, with up to 750 rpm and 45 / 37 kW (60.3 / 49.6 hp) under FANUC. The bed of the MEGA+140 is 810 mm (31.8 in) wide. The MEGA-T130 is far shorter and lighter, at 7,550 kg (16,645 lb) against 15,500 kg (34,171 lb) for the shortest MEGA+140.

03 Which control does it use?

The SIEMENS 828D is the standard control, with 23 / 18.5 kW (30.8 / 24.8 hp) and a 380 V, 60 Hz supply. A FANUC 0i-TF Plus can be fitted instead, with 22 / 18.5 kW (29.5 / 24.8 hp) and a 220 V, 60 Hz supply. Both need 42 kVA (TR 45 kVA).

04 How fast can the spindle run?

From 5 to 400 rpm, whichever bore is chosen (Ø155, Ø255 or Ø320 mm), through three automatic ranges. At large diameters that gives plenty of surface speed, but finishing small diameters at high surface speed is not what it is built for.
