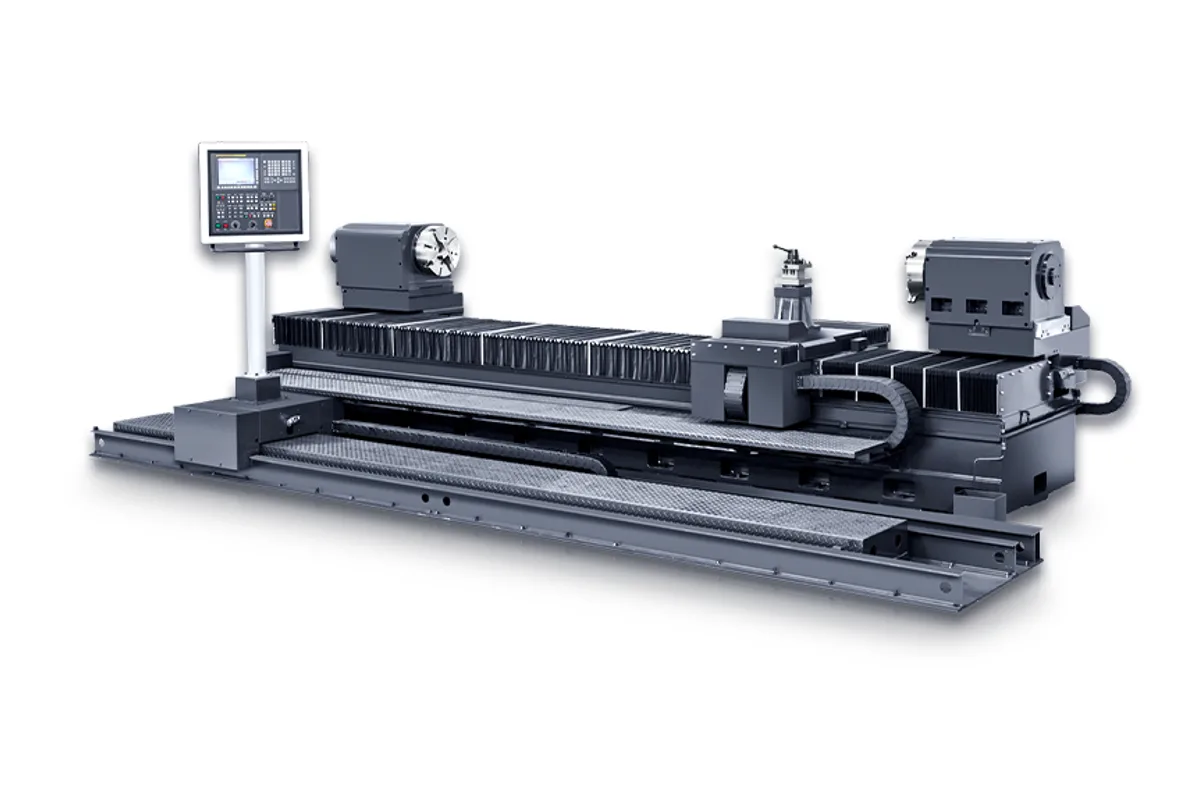

Hwacheon UPR-600B

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

1 ~ 300 rpm

Spindle Power

22 / 18.5 kW (29.5 / 24.8 hp)

max turning diameter

Ø600 mm (Ø23.6 in)

min turning diameter

Ø180 mm (Ø7.1 in)

distance between centers

3,000 mm (118.1 in)

max workpiece weight

1,500 kg (3,307 lb)

How much does the Hwacheon UPR-600B cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon UPR-600B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon UPR-600B is a long-bed, low-speed lathe that turns Ø600 mm (Ø23.6 in) work up to 3,000 mm (118.1 in) between centres, with a linear-motor feed drive. Its spec table is unusual for a lathe in this size class: a minimum turning diameter of Ø180 mm (Ø7.1 in), a spindle speed of 1 ~ 300 rpm in three automatic steps, and a manual V4 tool post with 4 tool faces instead of a turret. Taken together, these point at long cylindrical parts of fairly constant, larger diameter rather than general job-shop turning.

The spindle is a built-in motor rated 22 / 18.5 kW (29.5 / 24.8 hp) on an A2-8 nose with a 14 in chuck. Bearings are grease-lubricated and the spindle is jacket-cooled from an oil cooler, which helps keep the headstock stable over long cuts. Workpiece weight is 1,500 kg (3,307 lb).

X travel is 280 mm (11.0 in) and Z travel 3,000 mm (118.1 in), with rapids of 15 / 20 m/min (591 / 787 ipm). The tool post takes ☐20 mm shanks, or ☐30 mm as an option. With only 4 tool faces and a manual post, each setup should be planned around few tools.

The Hi-TECH 650 offers the same Ø600 mm (Ø23.6 in) turning diameter with a 12-station turret and up to 2,000 rpm, so it is the general-purpose alternative; the UPR-600B trades that flexibility for its linear-motor drive and low-speed spindle. The machine weighs 15,000 kg (33,069 lb), occupies 6,000 x 2,810 mm (236.2 x 110.6 in) of floor at a height of 2,370 mm (93.3 in), and uses a FANUC 31i-B control.

Full Specifications

Parameter	Value
Max Turning Diameter	Ø600 mm (Ø23.6 in)
Min Turning Diameter	Ø180 mm (Ø7.1 in)
Distance Between Centers	3,000 mm (118.1 in)
Max Workpiece Weight	1,500 kg (3,307 lb)
Chuck Size	14 in
Spindle Nose	A2-8
Max Spindle Speed	1 ~ 300 rpm
Spindle Speed Ranges	Auto 3 steps
Spindle Motor Type	Built-in type
Spindle Motor Power	22 / 18.5 kW (29.5 / 24.8 hp)
Spindle Bearing Lubrication	Grease
Spindle Cooling	Jacket cooling (oil cooler)
Tool Post	Manual V4
Turret Stations	4 tool faces
Tool Shank Size	☐20 mm (Opt.: ☐30 mm)
Rapid Traverse Xz	15 / 20 m/min (591 / 787 ipm)
X Axis Travel	280 mm (11.0 in)
Z Axis Travel	3,000 mm (118.1 in)
Feed Drive	Linear motor
Machine Dimensions	6,000 x 2,810 mm floor area (236.2 x 110.6 in); height 2,370 mm (93.3 in)
Machine Weight	15,000 kg (33,069 lb)
CNC Control	FANUC 31i-B

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

Linear motor feed drive, with rapids of 15 / 20 m/min (591 / 787 ipm)
3,000 mm (118.1 in) between centres for Ø600 mm (Ø23.6 in) work
Built-in spindle motor of 22 / 18.5 kW (29.5 / 24.8 hp) with jacket cooling from an oil cooler
Takes workpieces up to 1,500 kg (3,307 lb)
Grease-lubricated spindle bearings and a FANUC 31i-B control, with a 14 in chuck on an A2-8 nose

Limitations

Spindle speed is limited to 1 ~ 300 rpm, which rules out efficient work on small diameters
Minimum turning diameter is Ø180 mm (Ø7.1 in)
Manual V4 tool post with 4 tool faces, no turret
X travel of 280 mm (11.0 in) and ☐20 mm standard shanks limit heavy or deep facing work

Best For

Long cylindrical parts between Ø180 mm and Ø600 mm Workpieces up to 3,000 mm (118.1 in) long and 1,500 kg (3,307 lb) Long cuts with few tool changes Low-speed finishing of large diameters

Frequently Asked Questions

01 What diameter range does the UPR-600B cover?

From Ø180 mm (Ø7.1 in) up to Ø600 mm (Ø23.6 in). The minimum is part of the specification, so parts with sections smaller than Ø180 mm need another machine or a check with the maker before ordering.

02 Why does the UPR-600B have a manual tool post instead of a turret?

The table lists a manual V4 tool post with 4 tool faces taking ☐20 mm shanks (☐30 mm optional). That setup suits long passes with a few tools on large cylindrical parts. For work that needs many tools, the Hi-TECH 650 has a 12-station turret at the same Ø600 mm (Ø23.6 in) turning diameter.

03 How fast does the spindle turn?

1 ~ 300 rpm over three automatic steps, from a built-in 22 / 18.5 kW (29.5 / 24.8 hp) motor on an A2-8 nose with a 14 in chuck. Bearings are grease-lubricated and the spindle is jacket-cooled by an oil cooler.

04 What travels and rapids does it have?

X travel is 280 mm (11.0 in) and Z travel 3,000 mm (118.1 in). Rapids are 15 m/min (591 ipm) on X and 20 m/min (787 ipm) on Z, and the feed drive is a linear motor rather than a ball screw.
