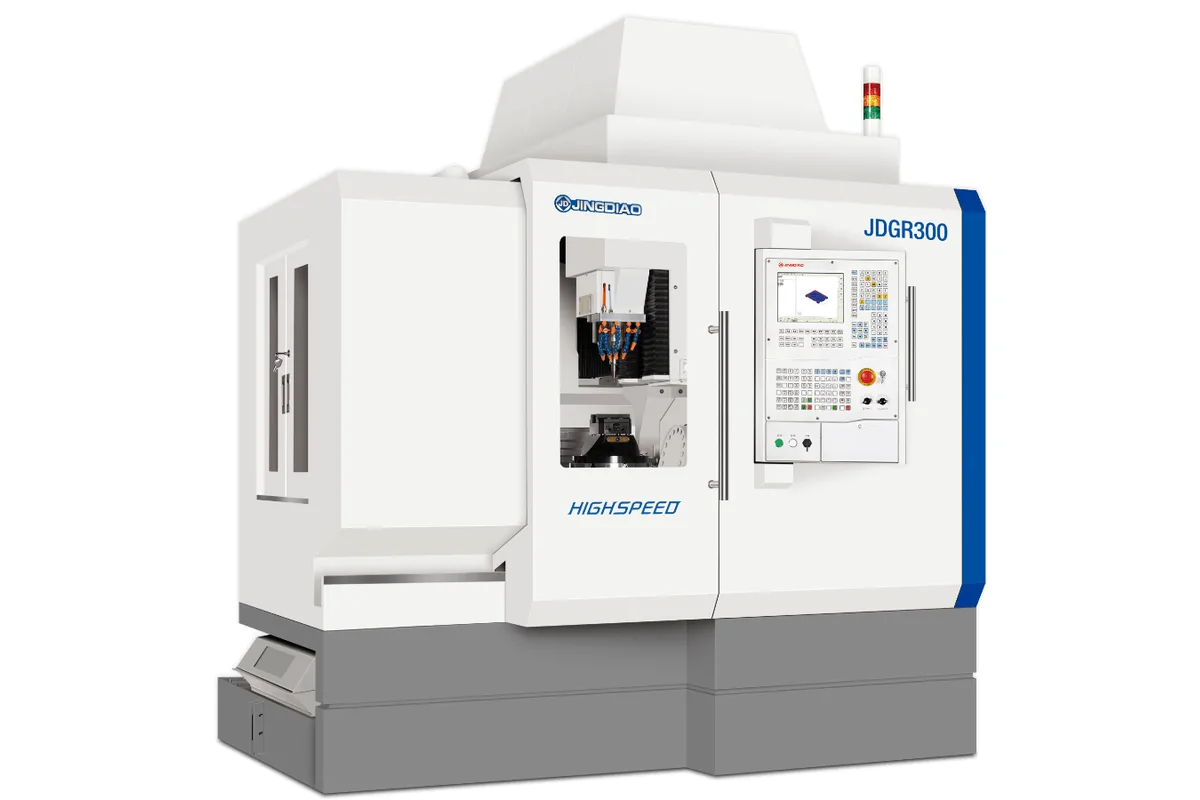

Jingdiao JDGR300
Image: en.jingdiao.com, Jingdiao
Key Specifications
Max Spindle
Spindle Taper
Table Size
Accuracy
Repeatability
x axis travel
How much does the Jingdiao JDGR300 cost?
Price estimate
We do not have a price for the Jingdiao JDGR300 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jingdiao JDGR300 is the mid-size machine of the JDGR 5-axis range and the one with the widest spread of spindles for its size. Over an A/C table of Ø300 mm (11.8 in) it can carry the 20,000 rpm HSK-A50 spindle that the maker fits as standard, a coolant-through version of it, or a 32,000 rpm HSK-E32 spindle for precision machining. Travels are 390 mm (15.4 in) in X, 510 mm (20.1 in) in Y and 300 mm (11.8 in) in Z, and the table is rated for 100 kg (220 lb).
That spindle list is why Jingdiao files the same machine under two kinds of work. With the standard spindle, which the maker rates at 21.5Nm, it is a mold machine for hardened steels above HRC 50: large-diameter face mills on die surfaces, plus grinding, drilling, boring and tapping. With the 32,000 rpm unit it becomes a mirror-finishing machine for small tools. The magazine changes with the spindle. The small-taper spindle is paired with an umbrella magazine of 24 tools, the HSK-A50 spindles with a chain magazine of 37 tools.
A tilts from -110° to 90°, a slightly narrower negative swing than on the JDGR400T, and C rotates 360°. The rotary table is a direct drive double-axis unit and shares a refrigerator with the spindle. Rotary rapids are 30 / 50 rpm (A/C).
On the linear axes the data sheet lists 0.002 / 0.002 / 0.002 mm (X/Y/Z) positioning accuracy and 0.0018 / 0.0018 / 0.0018 mm repeatability, with rapids of 15 m/min (591 ipm). The control is the JD50 and the maker's SurfMill 8.0 CAM software is on the standard list. The machine weighs 7,400 kg (16,314 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 390 mm (15.4 in) |
| Y Axis Travel | 510 mm (20.1 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| A Axis Range | -110° to 90° |
| C Axis Range | 360° |
| Table Size | Ø300 mm (11.8 in) |
| Max Table Load | 100 kg (220 lb) |
| Spindle Type | JD135E-32-HE32/F (spindle for precision machining), JD150S-20-HA50/C or JD150SC-20-HA50/A (coolant through spindle) |
| Max Spindle Speed | 32,000 rpm (HSK-E32 spindle) or 20,000 rpm (HSK-A50 spindles) |
| Spindle Taper | HSK-E32 or HSK-A50 |
| Tool Magazine | Umbrella Type (24 Tools) with the HSK-E32 spindle; Chain Type (37 Tools) with the HSK-A50 spindles |
| Positioning Accuracy | 0.002 / 0.002 / 0.002 mm (X/Y/Z) |
| Repeatability | 0.0018 / 0.0018 / 0.0018 mm (X/Y/Z) |
| Repeatability Rotary | 5 / 5 sec (A/C) |
| Rapid Traverse Xyz | 15 m/min (591 ipm) |
| Rapid Traverse Rotary | 30 / 50 rpm (A/C) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Cutting Feed Rate Rotary | 15 / 25 rpm (A/C) |
| Drive System | AC servo |
| CNC Control | JD50 Control System |
| Power Requirement | 3-Phase, 380V / 50Hz |
| Air Pressure | ≥0.52 MPa |
| Machine Weight | 7,400 kg (16,314 lb) |
Specifications sourced from en.jingdiao.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Three spindle choices: 20,000 rpm HSK-A50 (standard), the same with coolant through the spindle, or 32,000 rpm HSK-E32
- Standard spindle torque of 21.5Nm for face mills and other large tools
- A/C table of Ø300 mm (11.8 in) carrying 100 kg (220 lb)
- Linear positioning accuracy of 0.002 / 0.002 / 0.002 mm (X/Y/Z)
- SurfMill 8.0 CAM software and a laser tool calibrator appear on the standard list of the data sheet
Limitations
- A-axis range is -110° to 90°; the JDGR400T tilts to -120° on the negative side
- The 32,000 rpm spindle comes with the smaller umbrella magazine of 24 tools
- Rotary rapids of 30 / 50 rpm (A/C) are half those the data sheet lists for the JDGR400T on A
- On-machine measurement and the scraper type chip conveyor are options on the data sheet
Best For
Frequently Asked Questions
01
Travel is 390 mm (15.4 in) in X, 510 mm (20.1 in) in Y and 300 mm (11.8 in) in Z. The rotary table is Ø300 mm (11.8 in) with a maximum load of 100 kg (220 lb). The A axis tilts from -110° to 90° and the C axis rotates 360°.
02
It depends on the work. The standard high-speed precision spindle runs to 20,000 rpm on HSK-A50 with 21.5Nm of torque and suits a wide range of tools, including large face mills. The coolant through version is meant for deep holes and deep cavities. The 32,000 rpm HSK-E32 spindle for precision machining is the one Jingdiao lists for mirror-finished surfaces.
03
The configuration with the 32,000 rpm HSK-E32 spindle is listed with an umbrella type magazine holding 24 tools. The two configurations with HSK-A50 spindles are listed with a chain type magazine holding 37 tools.
04
For the linear axes, 0.002 / 0.002 / 0.002 mm (X/Y/Z) positioning accuracy and 0.0018 / 0.0018 / 0.0018 mm repeatability. Rotary repeatability is 5 / 5 sec (A/C). The data sheet gives no usable rotary positioning figure for this model, so ask Jingdiao for it.
05
The JDGR300 tilts on A and has a Ø300 mm (11.8 in) table for 100 kg (220 lb). The JDGR200T tilts on B, has a Ø260 mm (10.2 in) table for 50 kg (110 lb) and a longer X travel of 500 mm (19.7 in). Both can be had with 32,000 rpm HSK-E32 or 20,000 rpm HSK-A50 spindles.
