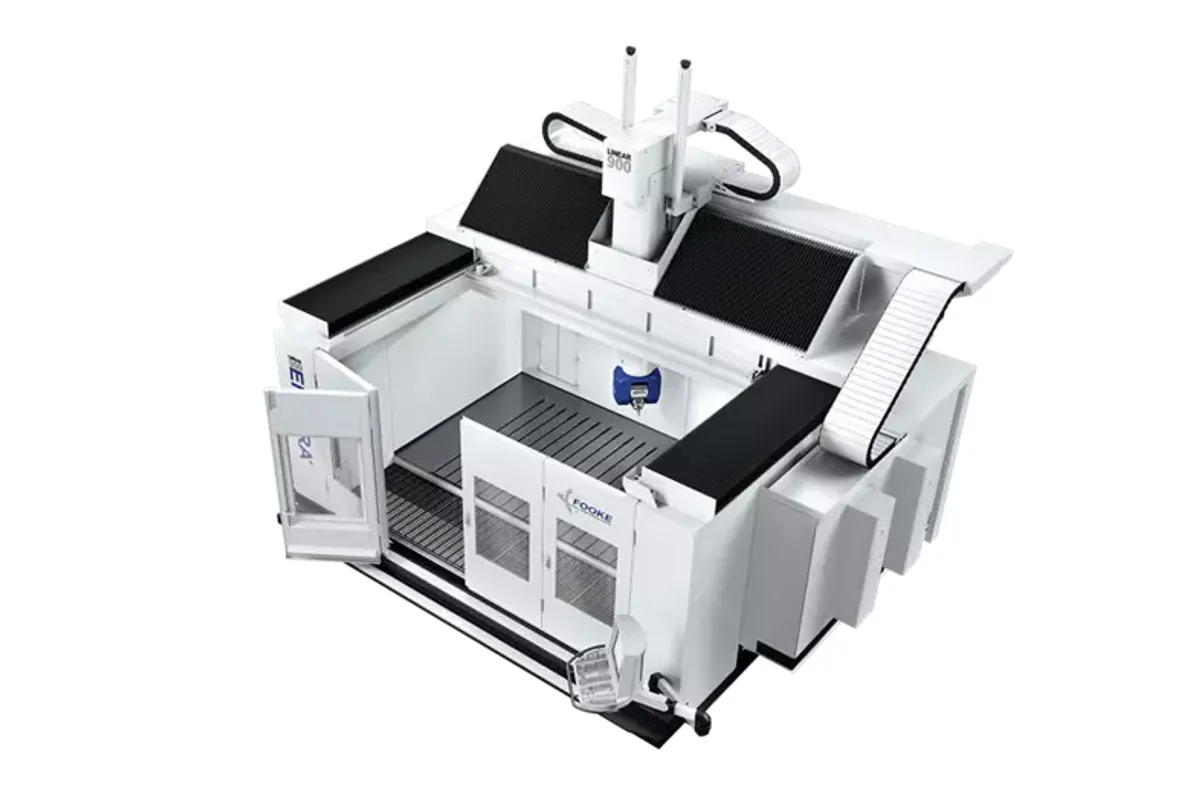

Fooke ENDURA 900LINEAR Compact
Image: fooke-machines.com, Fooke
Key Specifications
x axis travel
y axis travel
z axis travel
feed rate x
feed rate y
feed rate z
How much does the Fooke ENDURA 900LINEAR Compact cost?
Price estimate
We do not have a price for the Fooke ENDURA 900LINEAR Compact that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fooke ENDURA 900LINEAR Compact brings the metal-cutting side of the ENDURA range onto a closed, self-supporting bed. It is a 5-axis linear motor gantry for aluminium, cast iron and steel, with 3,500 mm (137.8 in) of Y, 1,500 mm (59.1 in) of Z and an X travel listed as 2,500 / 4,000 / 5,500 mm.
A word on that X row. The same page states travels up to 9,000 x 3,500 x 1,500 mm in its list of advantages, which is longer than any value in the technical data. The length on offer should be settled with Fooke before a layout is drawn.
Why this model and not the lighter compact one? The head list answers it. Alongside milling head 4, with its HSK-A63 spindles of 42 kW and 67 Nm or 63 kW at 30,000 rpm, the page lists milling head 12. That head takes an HSK-A100 spindle of 60 kW at 15,000 rpm with 300 Nm, a different class of tool: large inserted cutters, long boring tools, real roughing in die steel. Heads 8 and 15 are listed too.
The frame is built for it. The bed is solid cast iron, and side walls, cross slide, Z beam and portal are welded steel described as extremely rigid yet weight-optimized. Feed rates are 5 - 65,000 mm/min in all three axes, lower than the 5 - 90,000 mm/min of the Fooke ENDURA 700LINEAR, while acceleration stays at up to 5 m/sec².
Position accuracy is 0.015 mm and position scatter 0.010 mm in each linear axis. Fooke's Thermo Guard cladding insulates the structure against short-term temperature swings in the hall.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,500 / 4,000 / 5,500 mm (98.4 / 157.5 / 216.5 in) |
| Y Axis Travel | 3,500 mm (137.8 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| Feed Rate X | 5 - 65,000 mm/min |
| Feed Rate Y | 5 - 65,000 mm/min |
| Feed Rate Z | 5 - 65,000 mm/min |
| Acceleration | up to 5 m/sec² |
| Positioning Accuracy X | 0.015 mm |
| Positioning Accuracy Y | 0.015 mm |
| Positioning Accuracy Z | 0.015 mm |
| Position Scatter X | 0.010 mm |
| Position Scatter Y | 0.010 mm |
| Position Scatter Z | 0.010 mm |
| Milling Heads | Milling head 4, Milling head 8, Milling head 12, Milling head 15 |
| Milling Head 4 Spindles | HSK-A63, 42 kW, 24,000 rpm, 67 Nm; or HSK-A63, 63 kW, 30,000 rpm, 31 Nm |
| Milling Head 12 Spindles | HSK-A100, 60 kW, 15,000 rpm, 300 Nm |
| Milling Head Rotary Axes | C-axis 550° (+/-275°), A-axis 220° (+/-110°) (milling heads 4, 12) |
Specifications sourced from fooke-machines.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Milling head 12 with an HSK-A100 spindle: 60 kW, 15,000 rpm and 300 Nm
- 3,500 mm (137.8 in) of Y travel on a compact machine that needs no foundation
- Position accuracy of 0.015 mm and position scatter of 0.010 mm in X, Y and Z
- Solid cast iron machine bed with welded steel side walls, cross slide and portal
- Thermo Guard thermal decoupling against short-term temperature fluctuations
Limitations
- Feed rates of 5 - 65,000 mm/min are below those of the Fooke ENDURA 700LINEAR
- The page's X travel row and its travels up to 9,000 x 3,500 x 1,500 mm statement do not agree
- Only one Y and one Z travel are listed
- Coolant, tool changing and measuring systems are optional equipment
Best For
Frequently Asked Questions
01
The Compact has a closed machine bed and can be set up without a foundation, with 3,500 mm (137.8 in) of Y and 1,500 mm (59.1 in) of Z. The Fooke ENDURA 900LINEAR is the modular overhead gantry, with an X travel of 3,000 - 30,000 mm and a floor-level machine room.
02
The technical data lists X-axis travels of 2,500 / 4,000 / 5,500 mm, a Y-axis travel of 3,500 mm (137.8 in) and a Z-axis travel of 1,500 mm (59.1 in). Elsewhere on the page Fooke states travels up to 9,000 x 3,500 x 1,500 mm, so ask which X lengths are current.
03
It depends on the head. Milling head 12 has an HSK-A100 spindle with 60 kW, 15,000 rpm and 300 Nm. Milling head 4 has HSK-A63 spindles with 42 kW, 24,000 rpm and 67 Nm, or 63 kW, 30,000 rpm and 31 Nm. Heads 8 and 15 are also listed, without spindle figures in this page's table.
04
It is Fooke's name for thermal decoupling: relevant structural components are coated and clad with insulation material and sheet metal. The maker says this significantly reduces the effect of external temperature fluctuations on positioning accuracy.
