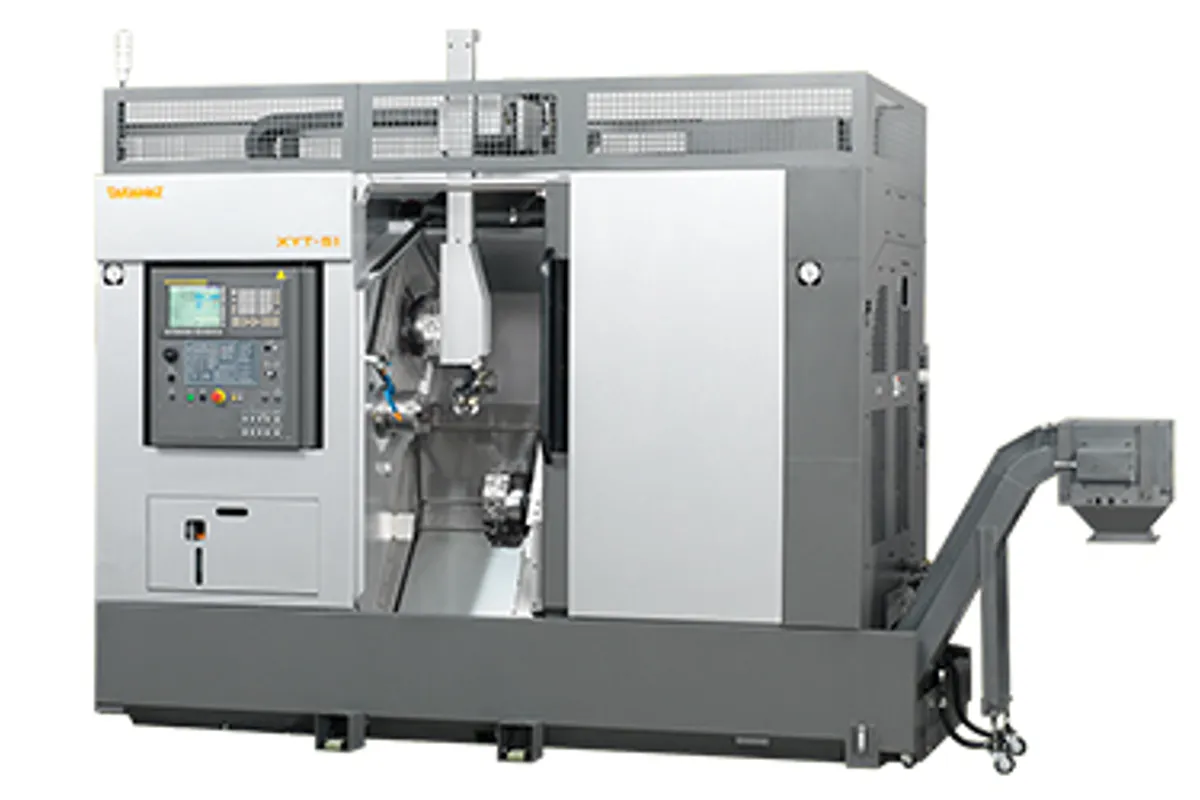

Takamaz XY-120 Plus
Key Specifications
Max Turn Length
max turning diameter
max bar diameter
chuck size
spindle nose
spindle bearing id
How much does the Takamaz XY-120 Plus cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Takamaz. Configuration moves it a long way.
Overview
The Takamaz XY-120 Plus is a bar-capable turning center with a main spindle, a sub-spindle and a Y axis, built to finish parts complete in one cycle. The main spindle takes bar up to φ42 mm (φ51 mm option) and turns up to φ170 mm, while the sub-spindle handles φ135 mm and bar up to φ20 mm. Turning length is 330 mm (13.0 in).
The main spindle has an A2-5 nose (A2-6 option), a φ85 mm bearing I.D. (φ100 option) and a φ52 mm through hole (φ61 option), driven by an AC 7.5 / 5.5 kW motor (AC 11 / 7.5 kW option). Speed is max. 5,000 min-1, or max. 4,000 min-1 with option; the table does not say which option lowers it, so ask before ordering the larger spindle. The sub-spindle runs to max. 5,000 min-1 on AC 5.5 / 3.7 kW with an A2-4 nose and a φ36 mm through hole.
Tooling is a 12-station turret listed as 24 stations, with a □20 mm shank and φ25 mm boring holders. The power tool row lists 12 tools, running at up to max. 4,000 min-1, with capacity for an end mill φ13 mm, a drill φ13 mm and an M8 tap. The power tools motor is AC 3.7 / 2.2 / 1.5 kW. With a Cs-axis indexing at 21,600 deg/min and Y travel of ±35 mm, the machine can mill flats, slots and off-centre holes as well as cross-drill.
The strokes come in two groups: X1 150 / Z1 330 / Y ±35 mm on the main side and X2 150 / Z2 440 mm on the second. Rapids are X1 18, Z1 24 and Y 12 m/min, then X2 18 and Z2 18 m/min.
The machine weighs 4,500 kg (9,921 lb), measures 2,630 x 1,950 x 1,730 mm (103.5 x 76.8 x 68.1 in) and has a spindle center height of 1,050 mm (41.3 in). Power supply is 27 kVA, or 31 kVA with the option, a figure to check against the shop supply before delivery.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | φ170 mm main spindle (6.7 in); φ135 mm sub-spindle (5.3 in) |
| Max Turning Length | 330 mm (13.0 in) |
| Max Bar Diameter | φ42 mm main spindle (φ51 mm option); φ20 mm sub-spindle |
| Chuck Size | Collet, 6 in main spindle; collet, 5 in sub-spindle |
| Spindle Nose | A2-5 main (A2-6 option); A2-4 sub |
| Spindle Bearing ID | φ85 mm main (φ100 option); φ65 mm sub |
| Through Hole on Spindle | φ52 mm main (φ61 option); φ36 mm sub |
| Spindle Speed | max. 5,000 min-1 main (max. 4,000 min-1 with option); max. 5,000 min-1 sub |
| Tool Post | 12-station turret, 24 stations; tool shank □20 mm; boring holder I.D. φ25 mm |
| Max Stroke | X1 150 / Z1 330 / Y ±35 mm; X2 150 / Z2 440 mm |
| Rapid Traverse Rate | X1 18 / Z1 24 / Y 12 m/min; X2 18 / Z2 18 m/min |
| Power Tools | 12 tools; max. 4,000 min-1; drill φ13 mm, end mill φ13 mm, tap M8 |
| C Axis | Cs-axis; rapid traverse 21,600 deg/min |
| Spindle Motor | AC 7.5 / 5.5 kW main (AC 11 / 7.5 kW option); AC 5.5 / 3.7 kW sub |
| Feed Motors | X1 AC 1.2 kW, Z1 AC 1.8 kW, Y AC 0.75 kW; X2 AC 0.75 kW, Z2 AC 1.2 kW |
| Coolant Motor | AC 0.25 / 0.25 kW |
| Hydraulic Motor | AC 1.5 kW |
| Power Tools Motor | AC 3.7 / 2.2 / 1.5 kW |
| Spindle Center Height | 1,050 mm (41.3 in) |
| Dimensions Lxwxh | 2,630 x 1,950 x 1,730 mm (103.5 x 76.8 x 68.1 in) |
| Machine Weight | 4,500 kg (9,921 lb) |
| Total Electric Capacity | 27 kVA (31 kVA with option) |
Specifications sourced from takamaz.co.jp — verified 2026-09-24
Strengths & Limitations
Strengths
- Main spindle plus sub-spindle and a Y axis of ±35 mm finish parts complete, including back-side work
- 12 driven tools at up to max. 4,000 min-1 for φ13 mm end mills and drills and M8 taps
- Main spindle bar capacity of φ42 mm, raised to φ51 mm with the option
- Cs-axis indexing at 21,600 deg/min for milled and drilled features at angles
- Turning length of 330 mm (13.0 in) with φ170 mm on the main spindle
Limitations
- Main spindle speed falls from max. 5,000 min-1 to max. 4,000 min-1 with option, and the table does not say which option
- Sub-spindle bar capacity is only φ20 mm and its motor is AC 5.5 / 3.7 kW
- Live tool capacity stops at an M8 tap and φ13 mm drill or end mill
- Y travel of ±35 mm limits how far off centre features can be milled
- At 4,500 kg (9,921 lb) and 27 kVA (31 kVA with option), floor loading and power need checking before installation
Best For
Frequently Asked Questions
01
The main spindle takes bar up to φ42 mm, or φ51 mm with the option. The sub-spindle takes up to φ20 mm. The main spindle options listed alongside it are an A2-6 nose, a φ100 bearing I.D. and a φ61 through hole. Main spindle speed is max. 5,000 min-1, or max. 4,000 min-1 with option.
02
The turret holds 12 driven tools, running to max. 4,000 min-1, with capacity for a drill φ13 mm, end mill φ13 mm and tap M8. Y travel is ±35 mm and the Cs-axis indexes at 21,600 deg/min. The power tools motor is AC 3.7 / 2.2 / 1.5 kW.
03
The XT-8MY lists a 15 / 11 kW spindle at 4,000 rpm, an 8 in collet, 175 mm (6.9 in) of X and 420 mm (16.5 in) of Z, with a Y rapid of 10 m/min. It has more spindle power and Z stroke. The XY-120 Plus has a sub-spindle, runs to max. 5,000 min-1 and has a Y rapid of 12 m/min.
04
On the main side, X1 150 / Z1 330 / Y ±35 mm. On the second side, X2 150 / Z2 440 mm. Rapids are X1 18, Z1 24 and Y 12 m/min, with X2 18 and Z2 18 m/min.
05
The machine weighs 4,500 kg (9,921 lb) and measures 2,630 x 1,950 x 1,730 mm (103.5 x 76.8 x 68.1 in). Total electric capacity is 27 kVA, or 31 kVA with the option. Spindle center height is 1,050 mm (41.3 in), which matters when matching a bar feeder.
Videos

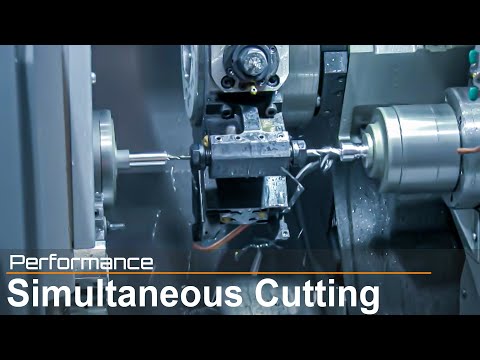

![[TAKAMAZ XY-120PLUS] CNC 2 Spindle 2 Turret Compound Lathe](https://i.ytimg.com/vi/ng6EiYUBwfA/hqdefault.jpg)
