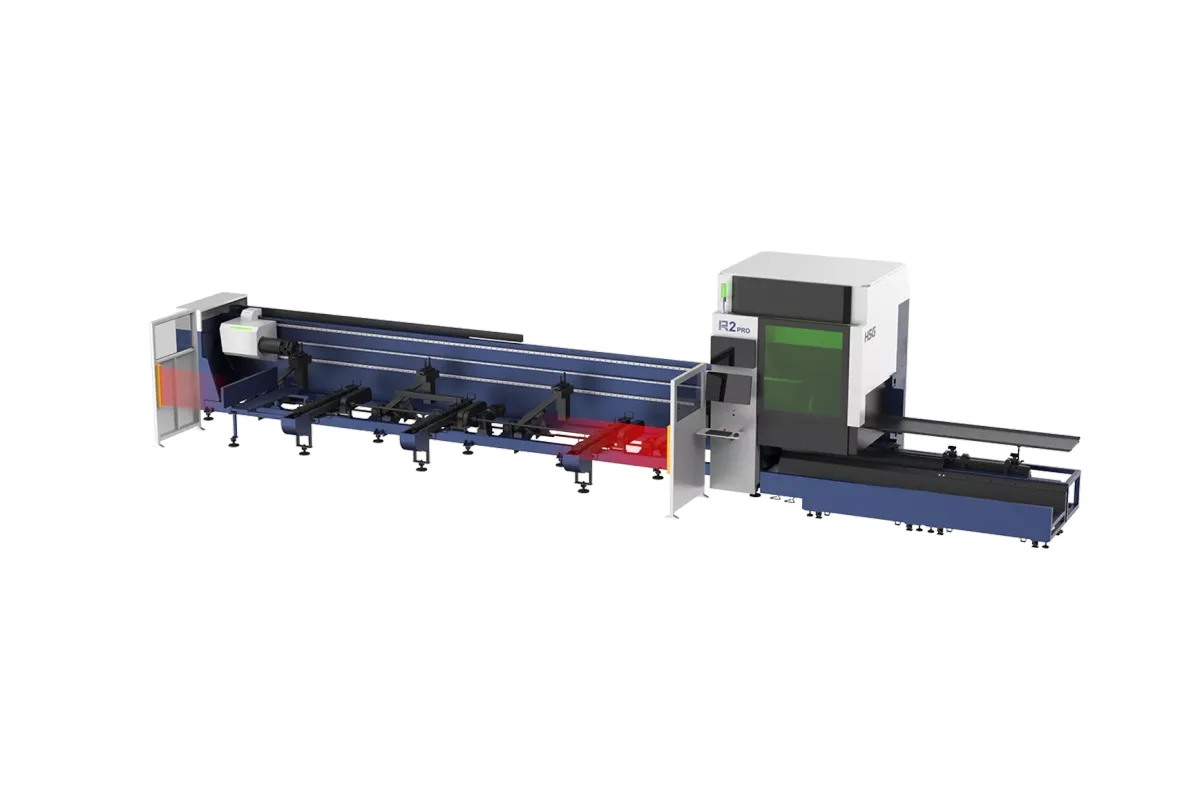

HSG R2 PRO
Image: hsglaser.com, HSG Laser
Key Specifications
laser power
round tube capacity
square tube capacity
rectangular tube capacity
low pass filter
max acceleration
How much does the HSG R2 PRO cost?
Price estimate
We do not have a price for the HSG R2 PRO that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HSG R2 PRO is the fast version of HSG's medium tube laser. The tube envelope is unchanged from the R2, Φ12-240 mm (0.5-9.4 in) round, 12 × 12 to 240 × 240 mm square and 12-240 mm rectangular, but the motion figures move up to 150 m/min linkage speed, 1.5 G acceleration and 140 r/min of chuck rotation. The low-pass filter is listed at 7 Hz and laser power at 3,000-6,000 W.
HSG's argument for the machine is that a medium tube laser normally gives away speed on small sections, and this one is meant not to. It claims a 25% efficiency gain. Read that as the maker's figure; what the table does show is 150 m/min here against 120 m/min for the HSG R2.
Tube length is 1,000-6,500 mm (39.4-255.9 in). A buyer who stocks longer material should look at the R2-90 PRO, whose range is 1,000-9,000 mm on otherwise identical figures.
Accuracy on imperfect tube is handled by an option. Dual-Scan dynamic correction tracks the contour and adjusts the path, and HSG quotes ±0.1mm on extruded tube and ±0.2mm on irregular tube with it. Bevel cutting within ±45°, short tailings cutting and the WindTech-Loading System are options as well. The loader has its own limits: Φ20-220mm round tube, 4000mm-6500mm lengths on this model and 300kg per tube.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3,000-6,000 W |
| Round Tube Capacity | Φ12-240 mm (0.5-9.4 in) |
| Square Tube Capacity | 12 × 12 to 240 × 240 mm (0.5 × 0.5 to 9.4 × 9.4 in) |
| Rectangular Tube Capacity | 12-240 mm (0.5-9.4 in) |
| Low Pass Filter | 7 Hz |
| Max Acceleration | 1.5 G |
| Max Linkage Speed | 150 m/min |
| Max Rotation Speed | 140 r/min |
| Tube Length Range | 1,000-6,500 mm (39.4-255.9 in) |
Specifications sourced from hsglaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 150 m/min linkage speed and 1.5 G acceleration on a machine that still takes 240 mm (9.4 in) tube
- Chuck rotation of 140 r/min, against 120 r/min on the HSG R2
- Rectangular tube from 12 to 240 mm is listed as its own capacity row
- Optional Dual-Scan dynamic correction, with ±0.1mm quoted on extruded tube and ±0.2mm on irregular tube
- Optional bevel cutting within a ±45° range for weld preparation
Limitations
- Tube length ends at 6,500 mm (255.9 in); the R2-90 PRO goes to 9,000 mm
- Dual-Scan correction, bevel cutting, short tailings cutting and the WindTech-Loading System are all options
- The WindTech loader is limited to Φ20-220mm round tube, narrower than the Φ12-240 mm the machine itself cuts
- The table gives no positioning accuracy figure for the base machine
Best For
Frequently Asked Questions
01
Tube length. The R2 PRO takes material from 1,000 to 6,500 mm (39.4-255.9 in) and the R2-90 PRO from 1,000 to 9,000 mm. Power, tube sizes, the 150 m/min linkage speed, 1.5 G acceleration and 140 r/min rotation speed are the same in HSG's table.
02
The table lists a maximum linkage speed of 150 m/min, a maximum acceleration of 1.5 G and a maximum rotation speed of 140 r/min, with a 7 Hz low-pass filter. HSG claims this improves efficiency by 25%; the table itself does not give a comparison.
03
Round tube from Φ12 to 240 mm (0.5-9.4 in), square tube from 12 × 12 to 240 × 240 mm and rectangular tube from 12 to 240 mm. Laser power is 3,000-6,000 W. HSG does not state a maximum tube weight in the table for the machine itself.
04
It is an option that works with the zero-remnant cutting function. HSG gives its capacity as Φ20-220mm round tube or 20-220mm side length for rectangular tube, a tube length range of 4000mm-6500mm on the R2 PRO, and a maximum single tube weight of 300kg.
