HSG C3015B

Specs verified 2026-10-05 · hsglaser.com Updated 2026-10-05

Image: hsglaser.com, HSG Laser

Key Specifications

laser power

1,500-6,000 W

cutting area

3,048 × 1,524 mm (120.0 × 60.0 in)

max linkage speed

100 m/min

max acceleration

1.5 G

round tube capacity

Φ20-Φ240 mm (0.8-9.4 in)

square tube capacity

20 × 20 to 240 × 240 mm (0.8 × 0.8 to 9.4 × 9.4 in)

How much does the HSG C3015B cost?

Price estimate

Uncertain

We do not have a price for the HSG C3015B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

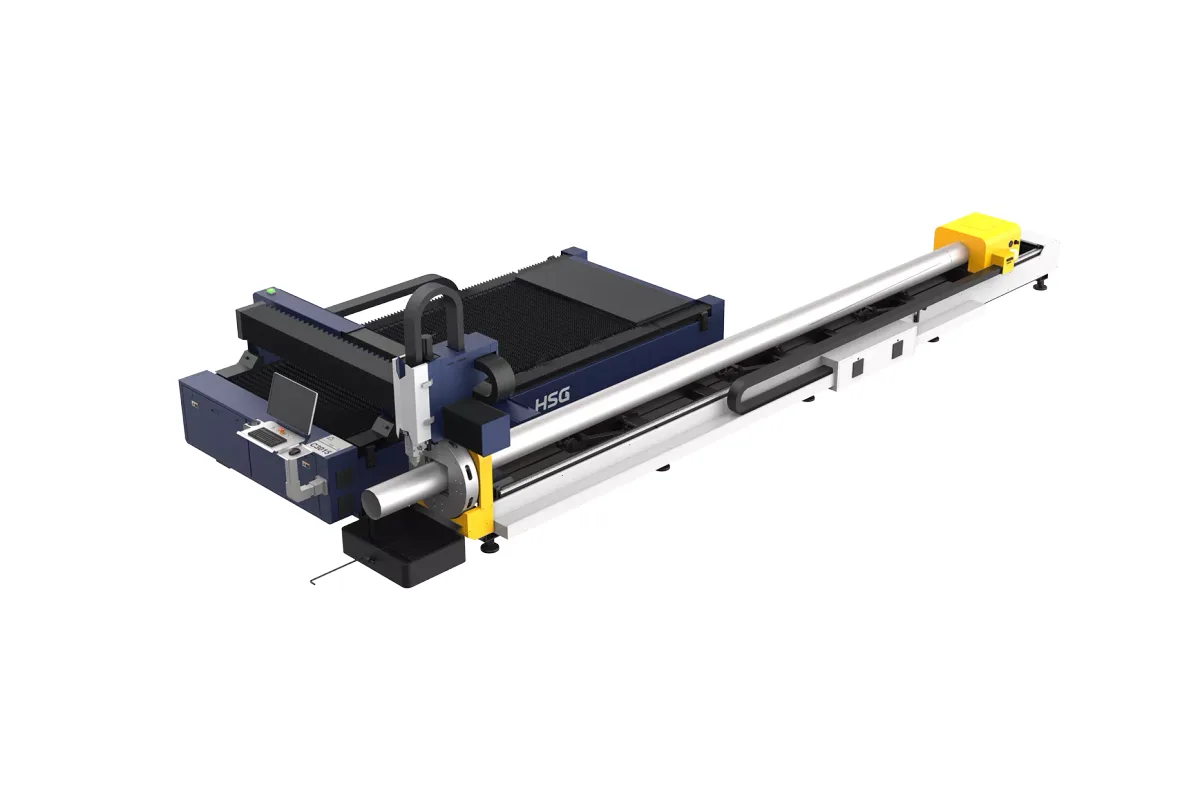

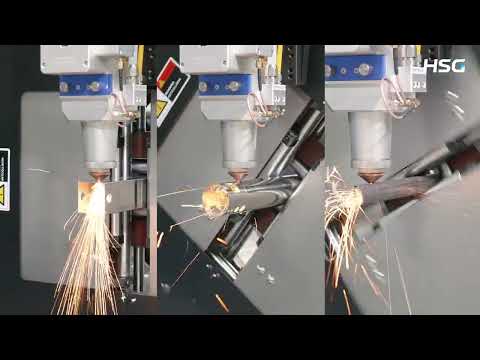

The HSG C3015B is a single-platform flat-bed laser with a tube-cutting station built onto it. The sheet side has a cutting area of 3,048 × 1,524 mm (120.0 × 60.0 in). The tube side takes round tube from Φ20 to Φ240 mm (0.8-9.4 in), square tube up to 240 × 240 mm and a single tube of about 300 kg (661 lb). Laser power is 1,500-6,000 W.

A combination machine is a compromise by design, and it helps to be clear about which way. One laser source and one footprint serve both jobs, which is the saving HSG points to. The cost is that sheet and tube work queue for the same cutting head, and the single platform means there is no second table being loaded while the first is cut.

On the tube side the detail is better than usual for a combined machine. A fully automatic double pneumatic chuck does the clamping, and 2 pneumatic concave wheel support frames stop long tube sagging. HSG gives ranges for rectangular tube (20-240 mm side length), angle steel from 2# to 18# and channel steel from 5# to 20#. No tube length is published.

Motion figures are 100 m/min maximum linkage speed and 1.5 G acceleration. The bed is welded carbon steel, annealed and naturally aged, and the workbench is modular so worn slat sections can be replaced. Control is HSG's AlphaA Bus System.

Full Specifications

Parameter	Value
Laser Power	1,500-6,000 W
Cutting Area	3,048 × 1,524 mm (120.0 × 60.0 in)
Max Linkage Speed	100 m/min
Max Acceleration	1.5 G
Round Tube Capacity	Φ20-Φ240 mm (0.8-9.4 in)
Square Tube Capacity	20 × 20 to 240 × 240 mm (0.8 × 0.8 to 9.4 × 9.4 in)
Rectangular Tube Capacity	20-240 mm side length (0.8-9.4 in)
Angle Steel Capacity	2#-18# (20 × 20 mm to 180 × 180 mm)
Channel Steel Capacity	5#-20# (50 × 37 mm to 200 × 75 mm)
Max Single Tube Weight	≈300 kg (661 lb)

Specifications sourced from hsglaser.com — verified 2026-10-05

Strengths & Limitations

Strengths

Cuts sheet on a 3,048 × 1,524 mm (120.0 × 60.0 in) area and tube up to Φ240 mm (9.4 in) on one machine
Published ranges for rectangular tube, angle steel (2#-18#) and channel steel (5#-20#)
Fully automatic double pneumatic chuck and 2 pneumatic concave wheel support frames on the tube side
100 m/min maximum linkage speed with 1.5 G acceleration
Modular workbench that is replaced in sections

Limitations

Single platform: no exchange table, so sheet loading stops cutting
Sheet and tube jobs share one cutting head and cannot run at once
Laser power ends at 6,000 W, and no positioning accuracy is given for this model
Tube length is not stated, and single tube weight is about 300 kg (661 lb)

Best For

Job shops with both sheet and tube work but volume for one machine Sheet up to 3,048 × 1,524 mm (120.0 × 60.0 in) Tube, angle and channel up to 240 mm (9.4 in) Limited floor space where two machines will not fit

Frequently Asked Questions

01 Can the HSG C3015B cut both sheet and tube?

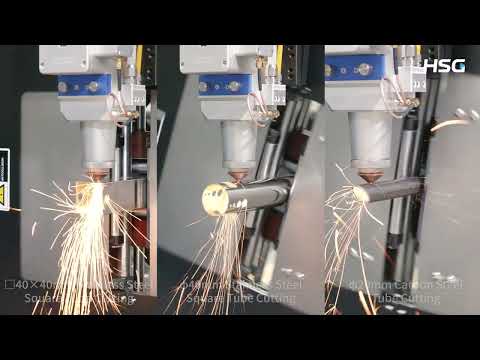

Yes. It is a single-platform machine with an integrated tube station. The sheet cutting area is 3,048 × 1,524 mm (120.0 × 60.0 in), and the tube side handles round tube from Φ20 to Φ240 mm and square tube from 20 × 20 to 240 × 240 mm.

02 What profiles does the C3015B tube station accept?

Besides round and square tube, HSG lists rectangular tube with a side length of 20-240 mm, angle steel from 2# to 18# (20 × 20 mm to 180 × 180 mm) and channel steel from 5# to 20# (50 × 37 mm to 200 × 75 mm). A single tube can weigh about 300 kg (661 lb).

03 What laser power is offered on the C3015B?

The power range is 1,500-6,000 W. HSG lists a maximum linkage speed of 100 m/min and a maximum acceleration of 1.5 G. The table gives no thickness capacity, so cutting charts for your material should be requested for the power chosen.

04 Does the C3015B have an exchange table?

No, it is described as a single-platform machine, so sheets are loaded and unloaded on the one working table. The workbench is modular, which HSG says makes it flexible and convenient to replace, and the bed is welded carbon steel that has been annealed.
