Anderson Spectrum M48

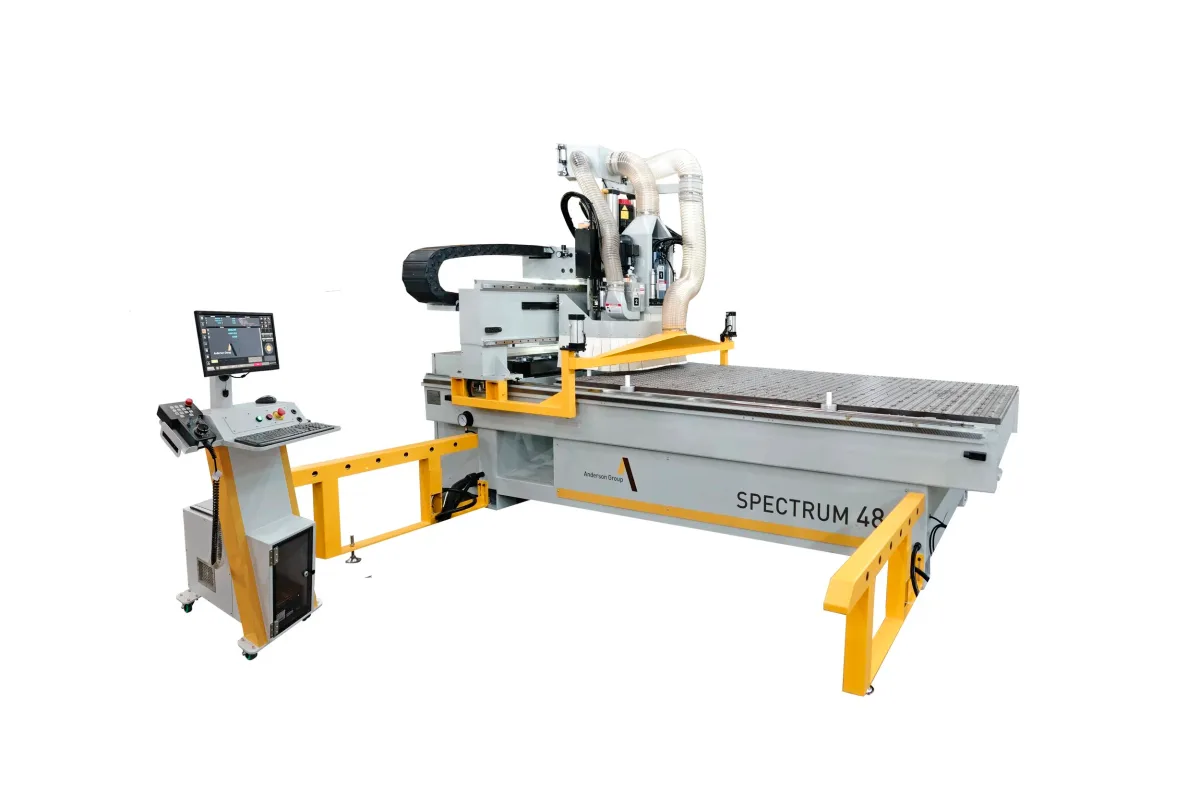

Image: andersonamerica.com, Anderson
Key Specifications
Max Spindle
Spindle Taper
Spindle Power
vacuum zones
table size x
table size y
How much does the Anderson Spectrum M48 cost?
Price estimate
We do not have a price for the Anderson Spectrum M48 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Anderson Spectrum M48 is the 4 x 8 model of the Spectrum-M series, Anderson's compact router line. It has a 2500 mm (98”) by 1300 mm (51”) table with a single vacuum zone, a 12 HP spindle and a rack style tool changer with 6 positions. The machine weighs 2,700 Kg (6,000 lbs.).
Several rows of the table show where the M48 has been kept simple. There is one spindle rating, 12 HP at up to 22,000 rpm on HSK-63F. Tools sit in a rack, so each change is a trip to the rack and back. A C-axis is listed as not available. Z stroke is 200 mm (8”), and the Z rapid is 12 m/min.
What has not been cut back is the drive train. X and Y run on helical rack and pinion and Z on a ball screw, with rapids of 60 m/min in X and Y and a maximum rapid traverse of 85 m/min. Anderson states that the series shares the spindle, racks and pinions and FANUC control systems with its larger models, and that construction is 100% steel. The control is FANUC 0i.
One zone means the whole table is either on or off. Full 4 x 8 sheets are fine; smaller blanks need the open area covered. A boring block is listed as 6 inline, or 5+5, and compact aggregate ability is standard. Vacuum pumps of 10, 25 or 40 HP are offered. Strokes are 2580 mm (101”) in X and 1585 mm (62”) in Y.
Full Specifications
| Parameter | Value |
|---|---|
| Vacuum Zones | 1 |
| Table Size X | 2500 mm (98”) |
| Table Size Y | 1300 mm (51”) |
| X Axis Travel | 2580 mm (101”) |
| Y Axis Travel | 1585 mm (62”) |
| Z Axis Travel | 200 mm (8”) |
| Rapid Traverse X | 60 meters/min (2,362”/min) |
| Rapid Traverse Y | 60 meters/min (2,362”/min) |
| Rapid Traverse Z | 12 meters/min (472”/min) |
| Maximum Rapid Traverse | 85 meters/min (3,350”/min) |
| Spindle Motor Power | 12 HP |
| Max Spindle Speed | 22,000 rpm |
| Spindle Taper | HSK-63F |
| Rack Style Tool Changer Positions | 6 |
| Boring Block | 6 inline, or 5+5 |
| Vacuum Pump | 10/25/40 HP |
| CNC Control | FANUC 0i |
| X Drive System | Helical Rack & Pinion |
| Y Drive System | Helical Rack & Pinion |
| Z Drive System | Ball Screw |
| Machine Weight | 2,700 Kg (6,000 lbs.) |
| Reverse Air Flow | optional |
| Bar Code Reader | optional |
| Aggregate Capability | Compact aggregate ability is Standard |
| C Axis | Not available |
| Offload Pusher Sweeper | optional |
| Automatic Off Loading | optional |
Specifications sourced from andersonamerica.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Lightest machine in the series at 2,700 Kg (6,000 lbs.)
- Helical rack and pinion on X and Y with a ball screw on Z
- 60 m/min rapids in X and Y and an 85 m/min maximum rapid traverse
- 12 HP HSK-63F spindle at up to 22,000 rpm under a FANUC 0i control
- Compact aggregate ability is listed as standard
Limitations
- Rack style tool changer has 6 positions, against 8 on the Spectrum M510
- A single vacuum zone, so partial sheets leave open table to mask
- C-axis is listed as not available
- Z stroke is 200 mm (8”) with a 12 m/min Z rapid
Best For
Frequently Asked Questions
01
2500 mm (98”) in X by 1300 mm (51”) in Y, with strokes of 2580 mm (101”) and 1585 mm (62”). Anderson says the series is available in sizes from 4' x 8' to 5' x 12'; the M48 is the smallest, and the Spectrum M510 is the next size with a 3100 mm (122”) by 1550 mm (61”) table.
02
The rack style tool changer has 6 positions on this model. The Spectrum M510 and Spectrum M512 have 8. A boring block, listed as 6 inline, or 5+5, drills hole patterns without taking up rack positions.
03
No. The C-axis row is marked as not available for all three Spectrum-M sizes. Compact aggregate ability is listed as standard, and reverse air flow, a bar-code reader, an offload pusher sweeper and automatic off-loading are optional.
04
A FANUC 0i control, helical rack and pinion drives on X and Y and a ball screw on Z. Rapid travel is 60 m/min in X and Y and 12 m/min in Z. Anderson states the series shares its spindle, racks and pinions and FANUC control systems with the company's larger models.
