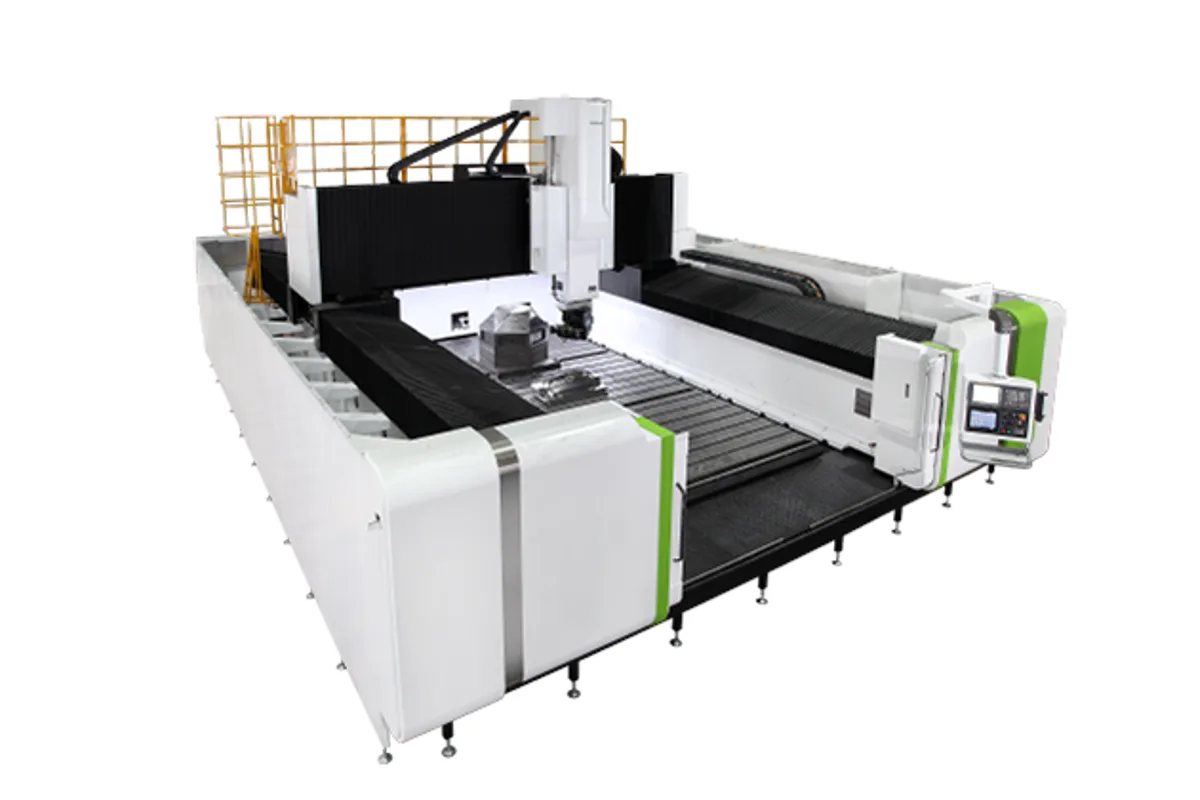

Hartford Aero-2232BL-5X
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford Aero-2232BL-5X cost?
Price estimate
We do not have a price for the Hartford Aero-2232BL-5X that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A table of 2,200 x 2,700 mm (86.6 x 106.3 in) and 3,200 mm (126.0 in) of Y travel make the Hartford Aero-2232BL-5X wider than it is long. X travel is 2,200 mm (86.6 in). It is a gantry type 5-axis machining center, the wide one of the two compact Aero 5X models.
This is one of the few Aero 5X tables with a power row. It lists a built-in spindle at 24,000 rpm in HSK-A63 and 12,000 rpm in HSK-A100, and gives 37 kW against the HSK-A63 and 43 kW against the HSK-A100. Hartford shows an HSK-A63 5 axis head for the model and describes the lubrication of the spindle as oil-air.
The drive is what Hartford calls the L type, a linear motor, with the stated benefits of no backlash and high machining efficiency. With no screw to wind up or wear, a linear axis follows small, fast direction changes closely, and that is what five-axis contouring of pockets and ribs consists of.
Base and table are cast in one piece. Z travel is 1,100 mm, or 1,300 mm as an option; the Z axis has a twin ballscrew design and a nitrogen counterweight. The table rating is 5,000 kg/m², and the magazine comes as an S type for 30 tools (40 optional) or an A type for 40 (60 optional).
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 2,200 x 2,700 mm (86.6 x 106.3 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 2,200 mm (86.6 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,100 (1,300 opt) mm |
| Spindle Taper | #40 / #50 |
| Spindle Speed Built in | 24,000 (HSK-A63); 12,000 (HSK - A100) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | HSK-A63 / HSK-A100 |
| Spindle Motor Power | 37 (HSK-A63) / 43 (HSK-A100) kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Built-in spindle: 24,000 rpm in HSK-A63 with 37 kW, 12,000 rpm in HSK-A100 with 43 kW
- Linear motor (L type) with no backlash
- 2,200 x 2,700 mm (86.6 x 106.3 in) table under 3,200 mm (126.0 in) of Y travel
- One-piece base and table casting, twin ballscrews on Z
Limitations
- X travel is 2,200 mm (86.6 in)
- The taper row reads #40 / #50 while the shanks are HSK, which needs clarifying
- No swivel angles for the head in the table
Best For
Frequently Asked Questions
01
The table gives 37 kW for the HSK-A63 spindle and 43 kW for the HSK-A100 spindle, on the continuous / 30 min line. Speeds are 24,000 rpm for HSK-A63 and 12,000 rpm for HSK-A100, both built-in.
02
Hartford's page for the model refers to the linear motor as the L type. It states that the linear motor has no backlash and achieves the best advantages of machining efficiency.
03
Table 2,200 x 2,700 mm (86.6 x 106.3 in), X travel 2,200 mm (86.6 in), Y travel 3,200 mm (126.0 in), Z travel 1,100 mm or 1,300 mm. The table is rated at 5,000 kg/m².
04
The Aero-2225BL-5X, with a 2,200 x 2,000 mm (86.6 x 78.7 in) table and 2,500 mm (98.4 in) of Y travel. It lists the same 24,000 rpm and 12,000 rpm spindles.
