Haas Automation 5-Axis Machining Centers

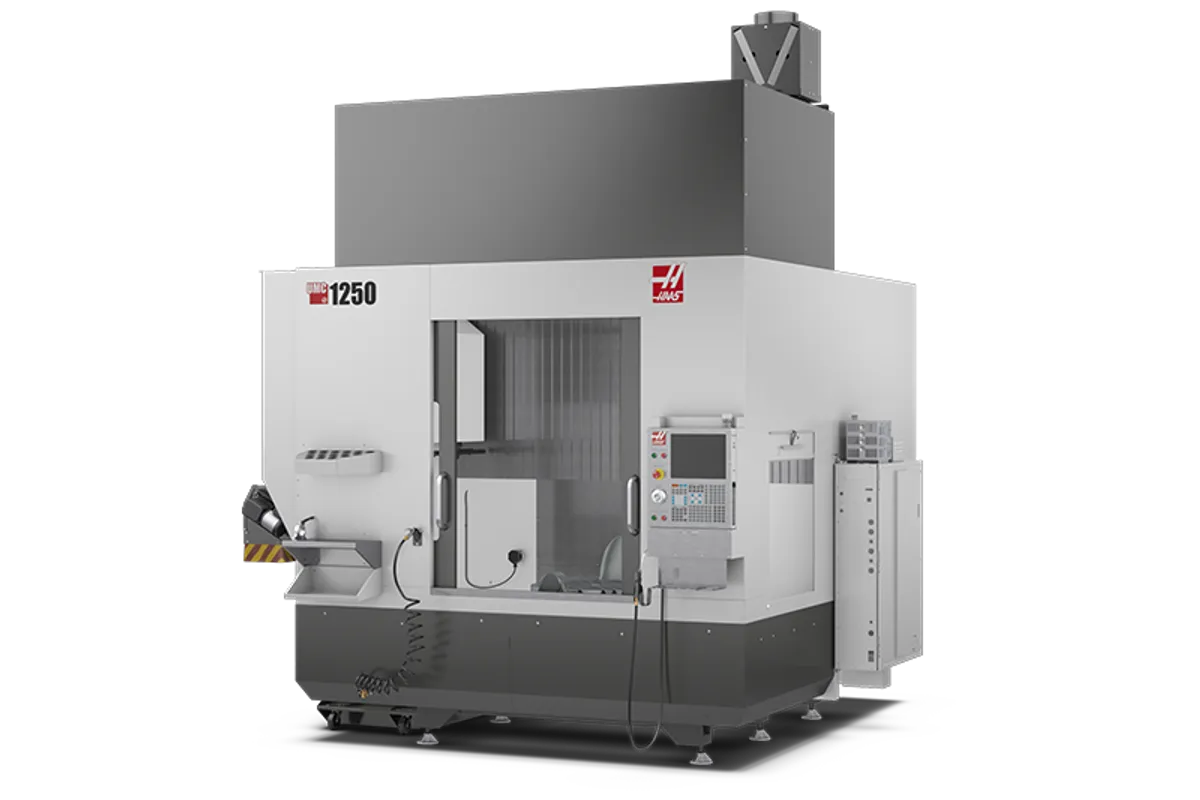

Haas UMC-1250

$251,995 - $330,000 Updated 2026-03-12

Key Specifications

X Travel

1,270 mm (50 in)

Y Travel

762 mm (30 in)

Z Travel

711 mm (28 in)

Max Spindle

8,100 RPM

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1 SMTC

Overview

The Haas UMC-1250 is the largest trunnion-table 5-axis universal machining center in the Haas lineup, with 1,270 x 762 x 711 mm (50 x 30 x 28 in) of travel and a 762 mm (30 in) platter diameter. This machine fills the gap between mid-size 5-axis UMCs and the massive gantry-based VS and HDC platforms, handling workpieces up to 991 mm (39 in) swing that are too large for the UMC-1000 but do not require the multi-meter envelopes of the gantry machines.

The spindle is a 22.4 kW (30 hp) inline direct-drive unit running to 8,100 RPM with 122 Nm (90 ft-lbf) of torque at 2,000 RPM. The CT40/BT40/HSK-A63 taper options maintain compatibility with standard 40-taper tooling. Liquid cooling and air/oil injection bearing lubrication keep thermal drift minimal during extended production runs.

The trunnion is built heavier than any other UMC model. The B-axis tilts from +120 to -35 degrees with 3,037 Nm of continuous torque and 2,712 Nm brake torque. The C-axis provides full 360-degree rotation with 2,514 Nm continuous torque and 1,220 Nm brake torque. The 762 mm platter supports 454 kg (1,000 lb), or 226.8 kg (500 lb) with the optional pallet pool. Seven T-slots provide ample fixturing options for large workpieces.

The 30+1 SMTC posts 2.8-second tool-to-tool and 3.6-second chip-to-chip times. Rapids run at 22.9 m/min (900 ipm) on all axes. At 8,536 kg (18,820 lb), this is the heaviest UMC in the lineup, providing the mass needed to dampen vibration when cutting large parts at aggressive parameters. The machine requires 220 VAC at 70 amps. A 70+1 SMTC option is available for shops running complex programs. For shops machining medium-to-large 5-axis parts that fit within a 39-inch swing, the UMC-1250 is the most capable trunnion-table machine Haas offers. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,270 mm (50 in)
Y-Axis Travel	762 mm (30 in)
Z-Axis Travel	711 mm (28 in)
Spindle Nose To Platter Max	813 mm (32 in)
Spindle Nose To Platter Min	102 mm (4 in)
Max Spindle Speed	8,100 RPM
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Platter Diameter	30.00 in
Platter Load Max	454 kg (1,000 lb)
Platter Load Pallet Pool	226.8 kg (500 lb)
T Slots	7 slots
B Axis Tilt	S.A.E
B Axis Speed	50 °/sec
B Axis Torque Continuous	3,037 Nm (2,240 ft-lbf)
B Axis Brake Torque	2,712 Nm (2,000 ft-lbf)
C Axis Rotation	S.A.E
C Axis Speed	50 °/sec
C Axis Torque Continuous	2,514 Nm (1,854 ft-lbf)
C Axis Brake Torque	1,220 Nm (900 ft-lbf)
Max Part Swing	39.0 in
Tool Capacity	30+1 SMTC
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Length	12.00 in
Max Tool Weight	12.0 lb
Max Cutting Feedrate	16.5 m/min (650 ipm)
Rapid Traverse X	22.9 m/min (900 ipm)
Rapid Traverse Y	22.9 m/min (900 ipm)
Rapid Traverse Z	22.9 m/min (900 ipm)
Max Thrust X	3300 lbf
Max Thrust Y	3300 lbf
Max Thrust Z	4050 lbf
Machine Weight	8,536 kg (18,820 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	55 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 70 A
Electrical High	440 VAC 3-phase, 35 A
Travels	S.A.E
X Axis	50.00 in
Y Axis	30.00 in
Z Axis	28.00 in
Spindle Nose To Platter	4.0 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	50 °/sec
Max Torque	90.0 ft-lbf @ 2000 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Travel	360 °
Torque	1854 ft-lbf
Brake Torque	900 ft-lbf
Platter	S.A.E
Max Weight On Platter	1000 lb
Max Weight On Platter W Pallet Pool	500 lb
T Slot Width	0.626 in to 0.630 in
Number Of Std T Slots	7
Feedrates	S.A.E
Max Cutting	650 ipm
Rapids On X	900 ipm
Rapids On Y	900 ipm
Rapids On Z	900 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	177.0 in x 110.0 in x 121.0 in
Export Crate	177.0 in x 112.5 in x 124.5 in
Machine Weight	18820 lb
Domestic Pallet W 701 Smtc	176.0 in x 110.0 in x 134.0 in
Export Crate W 701 Smtc	176.0 in x 112.5 in x 138.0 in
Weight W 701 Smtc	19,920 lb
Domestic Pallet For Sheet Metal Crate	125 in x 45 in x 47 in
Export Crate For Sheet Metal	130 in x 50 in x 58 in
Weight For Sheet Metal Crate	1000 lb

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

50 x 30 x 28 inch travel and 39-inch part swing make this the largest trunnion-table 5-axis in the Haas catalog
30-inch platter with 1,000 lb capacity handles heavy workpieces and large 5-axis fixtures
3,037 Nm B-axis and 2,514 Nm C-axis trunnion torque provide rock-solid workholding during aggressive cuts
8,536 kg machine weight delivers excellent vibration dampening on large-part 5-axis operations
500 lb pallet pool option enables unattended production on heavier parts than any other Haas UMC pallet system
70+1 SMTC option available for complex programs with many tools
Base price near $252K undercuts comparable-size 5-axis trunnion machines from DMG Mori and Hermle

Limitations

8,100 RPM spindle speed is the standard rate; no SS variant currently available for the 1250 platform
50 °/sec rotary axis speeds are the standard (non-SS) rate, adding repositioning time compared to the 1000SS
30 HP spindle may feel limiting on aggressive roughing in stainless and titanium on workpieces approaching 39-inch swing
18,820 lb machine weight requires reinforced flooring and significant rigging for installation

Best For

Aerospace structural 5-axis machining on medium-to-large aluminum and titanium components up to 39-inch swing Energy sector impeller, blisk, and turbine component production in nickel alloys and titanium Mold and die manufacturers producing 5-axis cores, cavities, and electrode work on large tools Job shops handling oversized 5-axis parts that exceed UMC-1000 capacity without needing gantry-scale machines Defense applications machining large housings, manifolds, and structural components requiring multi-face access Production shops using the 500 lb pallet pool option for unattended 5-axis on heavier workpieces

Frequently Asked Questions

01 What does a new Haas UMC-1250 cost?

Base price starts at around $251,995. With through-spindle coolant, probing, 70+1 SMTC, pallet pool, and production software, expect $300,000 to $330,000 for a fully configured machine.

02 How does the UMC-1250 compare to the UMC-1000?

The UMC-1250 has 1,270 x 762 x 711 mm of travel versus 1,016 x 635 x 635 mm on the UMC-1000. The platter increases from 625 mm to 762 mm, and part swing goes from 34 to 39 inches. Both share the 30 HP 8,100 RPM spindle. The 1250 weighs 8,536 kg versus approximately 7,711 kg for the 1000.

03 Is there a UMC-1250SS?

As of current Haas offerings, there is no SS variant of the UMC-1250. For higher spindle speed and faster axes in a large 5-axis envelope, the UMC-1000SS provides 12,000 RPM and 30.5 m/min rapids in a slightly smaller work area.

04 What is the maximum part weight on the UMC-1250 platter?

The standard platter holds 454 kg (1,000 lb). With the optional pallet pool, capacity drops to 226.8 kg (500 lb) per pallet. The 500 lb pallet pool capacity is the highest in the UMC lineup, making it the best choice for unattended production of heavier 5-axis parts.

05 Can the UMC-1250 machine titanium?

Yes. The 30 HP spindle with 122 Nm of torque and the heavy trunnion with 3,037 Nm B-axis torque provide the power and rigidity for titanium cutting. The 8,536 kg machine weight helps dampen vibration during interrupted cuts in tough alloys.
