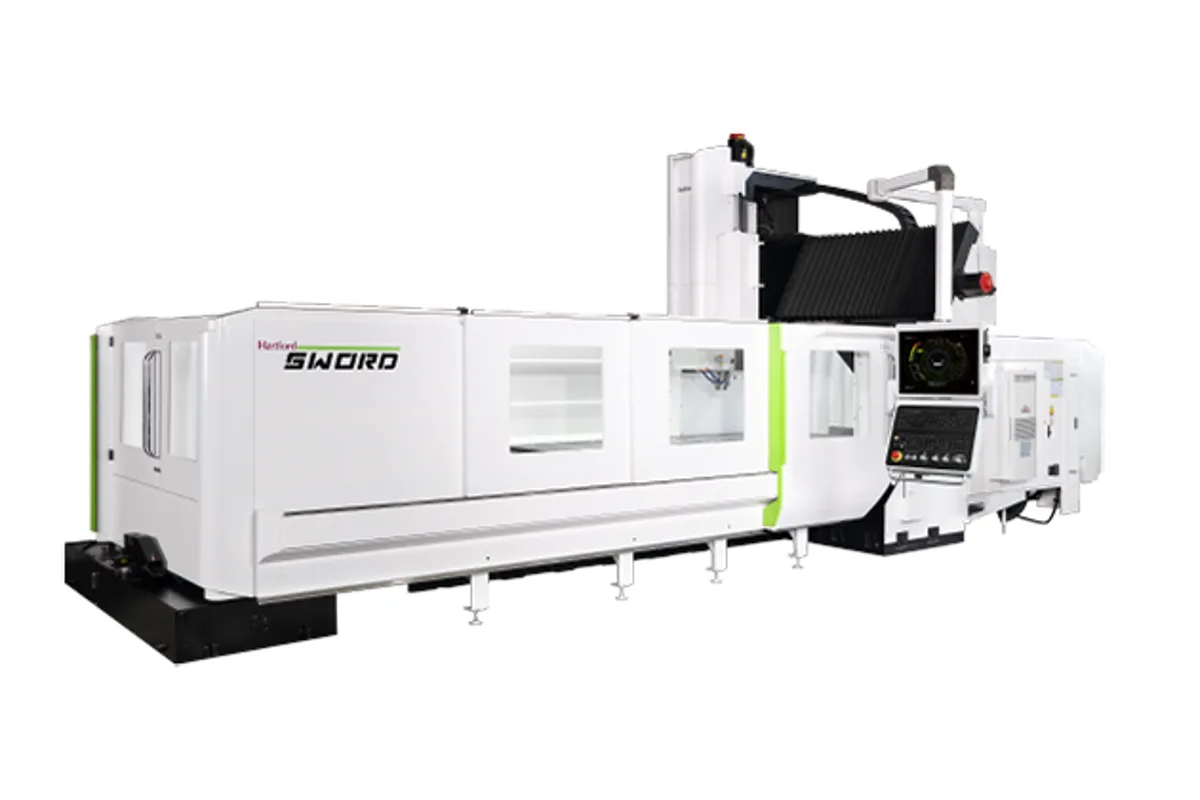

Hartford SW-523
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
t slots
How much does the Hartford SW-523 cost?
Price estimate
We do not have a price for the Hartford SW-523 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Five metres long and 2,200 mm wide, the table of the Hartford SW-523 is made for long work. This box-guideway double-column machining center has 5,000 mm (196.9 in) of X travel, 2,300 mm (90.6 in) of Y and a table load of 14,000 kg (30,864 lb).
On a moving-table bridge machine the X axis is the long one, and it carries both the table and the part. Hartford supports the X axis ballscrew on this model, a detail it lists specifically for the SW-523. A five-metre screw that is held only at its ends sags and whips; intermediate support keeps positioning consistent along the stroke.
The spindle is #50. In gear form it runs 4,000 / 6,000 rpm, a low range chosen for torque, and in DDS form 10,000 / 12,000 rpm. The base motor is 15/18.5 kW and the options are 18.5/22 kW, 22/26 kW and 30/37 kW (Cont. / 30 min).
Z travel is 780 mm, optionally 1,070 mm. The T-slot row reads 28 x 250 (20) mm. An S-type changer, listed as S: 20, or an arm-type changer with 32 tools, or 40, feeds BT-50 tools. As across the line, an angle head is available for machining the long sides of a part.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 5,000 x 2,200 mm (196.9 x 86.6 in) |
| Max Table Load | 14,000 kg (30,864 lb) |
| T-Slots | 28 x 250 (20) mm |
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 780 opt. 1,070 mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 4,000 / 6,000 rpm |
| Spindle Speed Dds | 10,000 / 12,000 rpm |
| Tool Capacity | S: 20 A: 32(40) pcs |
| Tool Shank | BT-50(BBT-50 /CAT-50 /DIN69871A) |
| Spindle Motor Power | 15/18.5 opt. 18.5/22, 22/26, 30/37 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 5,000 mm (196.9 in) of X travel with a supported X axis ballscrew
- 14,000 kg (30,864 lb) table load
- Low-range #50 gear spindle at 4,000 / 6,000 rpm
- Motor options up to 30/37 kW (Cont. / 30 min)
- Angle head available for side machining
Limitations
- Y travel of 2,300 mm (90.6 in) barely exceeds the 2,200 mm table width
- Table load per metre is lower than on the shorter SW-423
- Arm-type magazine limited to 32 tools, or 40
- Z travel of 780 mm unless the 1,070 mm option is taken
Best For
Frequently Asked Questions
01
X is 5,000 mm (196.9 in), Y is 2,300 mm (90.6 in) and Z is 780 mm, with 1,070 mm as the option. The table measures 5,000 x 2,200 mm (196.9 x 86.6 in).
02
14,000 kg (30,864 lb) as an average table load. T-slots are listed as 28 x 250 (20) mm along the table. Workholding and risers are part of that load.
03
Hartford lists X axis ballscrew support for improved machining accuracy on this model. Over 5,000 mm (196.9 in) of travel, supporting the screw limits sag and keeps positioning even along the stroke.
04
The #50 gear spindle at 4,000 / 6,000 rpm for roughing and heavy cuts, the #50 DDS spindle at 10,000 / 12,000 rpm for finishing. Motors range from 15/18.5 kW to 30/37 kW.
