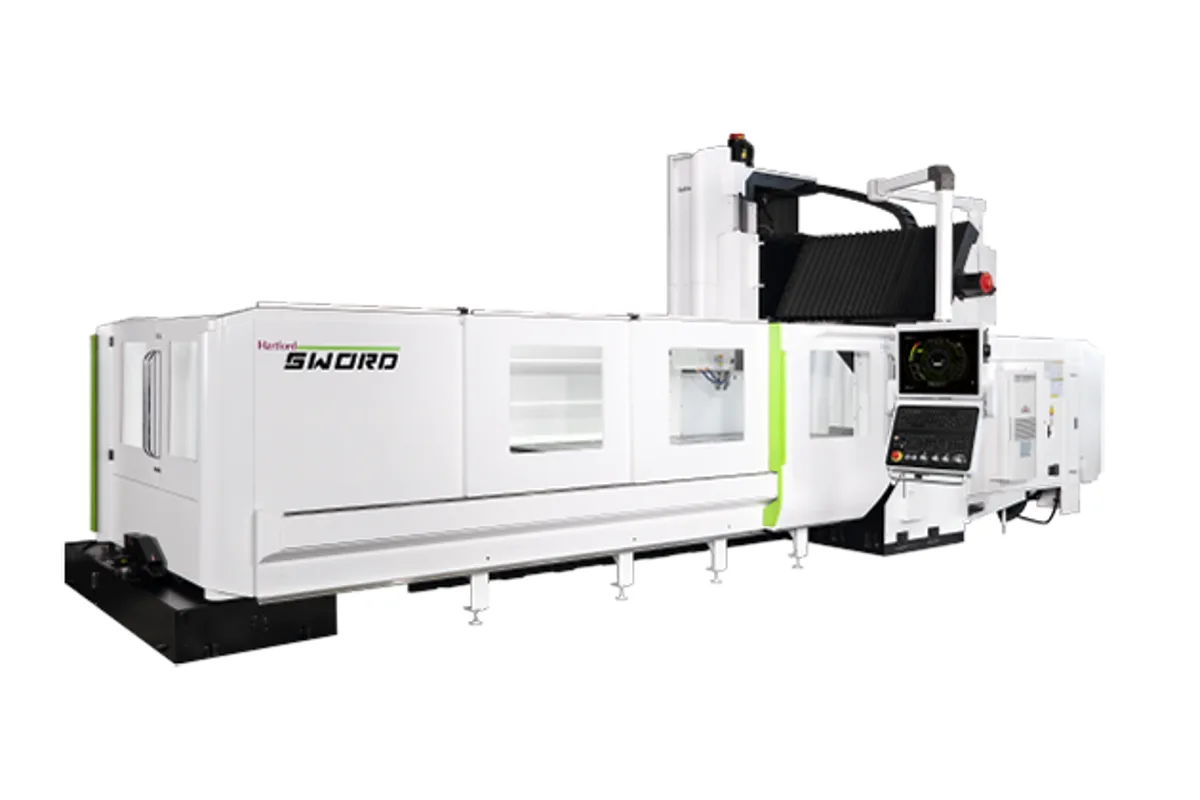

Hartford SW-423
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
t slots
How much does the Hartford SW-423 cost?
Price estimate
We do not have a price for the Hartford SW-423 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford SW-423 is a four-metre box-guideway double-column machining center: 4,000 mm (157.5 in) of X travel, 2,300 mm (90.6 in) of Y and a 4,000 x 2,200 mm (157.5 x 86.6 in) table rated for 12,000 kg (26,455 lb).
This model's page is the one on which Hartford headlines an automatic tool-type angular head changing system. An angle head turns the vertical spindle into a horizontal one, so the sides of a large part can be milled, drilled and tapped without turning the part over. When the head is changed automatically, like a tool, side machining becomes part of the program instead of a manual intervention.
The spindle is #50. The gear head runs 4,000 / 6,000 rpm and the DDS spindle 10,000 / 12,000 rpm. Motor ratings are 15/18.5 kW, with 18.5/22 kW, 22/26 kW and 30/37 kW as options (Cont. / 30 min).
Tools are stored in an S-type magazine, listed as S: 20, or an arm-type magazine with 32 tools, or 40. Z travel is 780 mm, optionally 1,070 mm. Sixteen T-slots cross the table, listed as 28 x 250 (16) mm.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 4,000 x 2,200 mm (157.5 x 86.6 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| T-Slots | 28 x 250 (16) mm |
| X Axis Travel | 4,000 mm (157.5 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 780 opt. 1,070 mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 4,000 / 6,000 rpm |
| Spindle Speed Dds | 10,000 / 12,000 rpm |
| Tool Capacity | S: 20 A: 32(40) pcs |
| Tool Shank | BT-50 (BBT-50 /CAT-50 /DIN69871A) |
| Spindle Motor Power | 15/18.5 opt. 18.5/22, 22/26, 30/37 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Automatic tool-type angular head changing system, per Hartford's page for this model
- 4,000 mm (157.5 in) X travel with a 12,000 kg (26,455 lb) table load
- #50 gear spindle at 4,000 / 6,000 rpm or DDS at 10,000 / 12,000 rpm
- Motor options up to 30/37 kW (Cont. / 30 min)
- Box guideways with hybrid air suspension
Limitations
- Arm-type magazine is listed with 32 or 40 tools; no larger version at this size
- Y travel of 2,300 mm (90.6 in) leaves little margin beside a 2,200 mm table when an angle head is mounted
- Z travel of 780 mm as standard
- The angle head's speed and power are not given
Best For
Frequently Asked Questions
01
Yes, with an angle head. Hartford states the SW is available with angle head to meet different machining needs, and the SW-423 page describes an automatic tool-type angular head changing system.
02
X 4,000 mm (157.5 in), Y 2,300 mm (90.6 in), Z 780 mm or optionally 1,070 mm. The table is 4,000 x 2,200 mm (157.5 x 86.6 in) and carries 12,000 kg (26,455 lb).
03
A #50 gear spindle at 4,000 / 6,000 rpm and a #50 DDS spindle at 10,000 / 12,000 rpm. The motor is 15/18.5 kW, optionally 18.5/22 kW, 22/26 kW or 30/37 kW.
04
The row reads S: 20 A: 32(40) pcs. That is an S-type changer, entered as S: 20, or an arm-type changer with 32 tools, or 40. Shanks are BT-50, with BBT-50, CAT-50 and DIN69871A as alternatives.
