Hartford PBM-135A

Q: How much does the Hartford PBM-135A cost?

The price estimate for the Hartford PBM-135A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hartford-pbm-135a#price; the request is passed to Hartford or an authorised dealer.

Specs verified 2026-10-04 · hartfordcnc.com Updated 2026-10-04

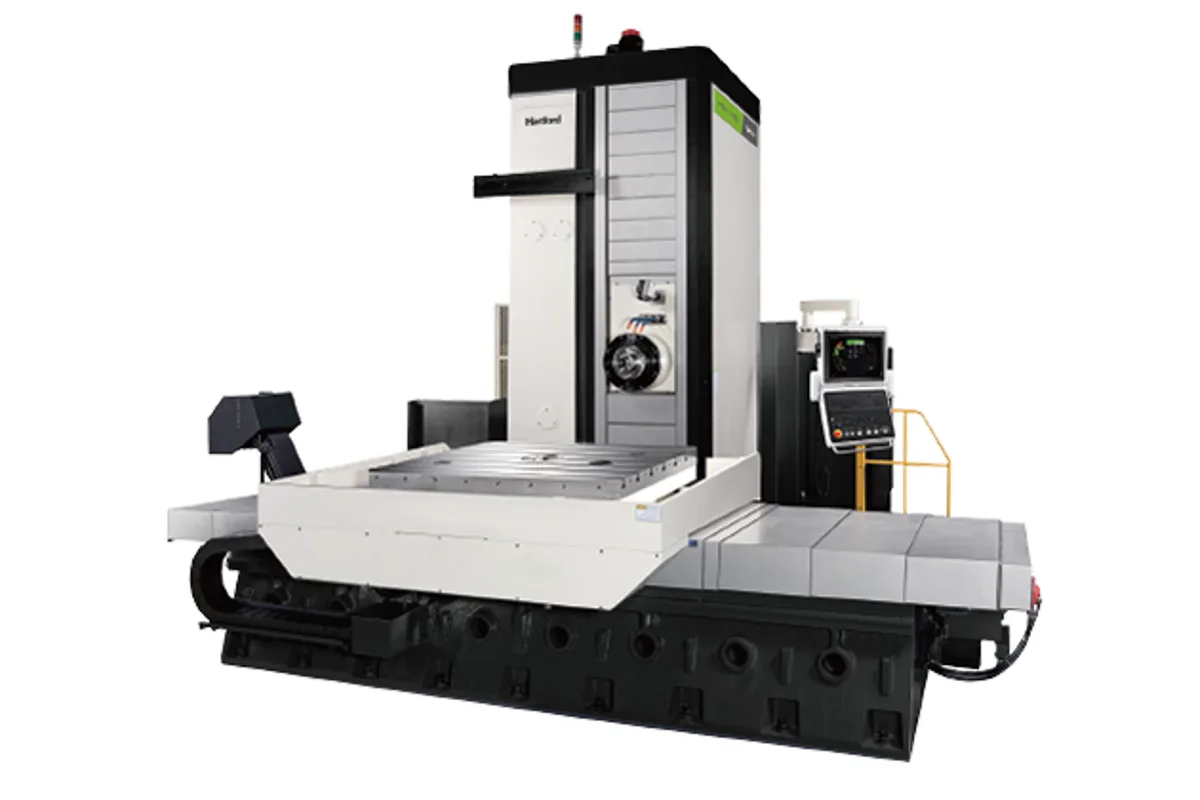

Image: hartfordcnc.com, Hartford

Key Specifications

Spindle Taper

#50

Tool Capacity

A: 32 / 40 / 60 pcs

Table Size

1,400 x 1,600 mm (55.1 x 63.0 in)

Spindle Power

22 / 26 opt. 30 / 37 kW (Cont. / 30 min)

max table load

8,000 kg (17,637 lb)

x axis travel

2,500 opt. 3,000 / 4,000 mm

How much does the Hartford PBM-135A cost?

Price estimate

Uncertain

We do not have a price for the Hartford PBM-135A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Hartford's PBM-135A is the first of three PBM-135 horizontal boring mills, and the one with the smallest table: 1,400 x 1,600 mm (55.1 x 63.0 in) for 8,000 kg (17,637 lb). What it gains over the PBM-115A is everything around that table.

Travels are listed with options. X is 2,500 mm, with 3,000 mm or 4,000 mm available. Y is 2,000 mm, optionally 2,500 mm, and Z is 1,500 mm, optionally 2,000 mm. The W axis is 700 mm (27.6 in). A buyer therefore specifies the machine around the largest part: the same table can sit under a 4,000 mm X stroke if long weldments have to be machined end to end.

The spindle stock is the heavier one of the PBM range. Hartford quotes a 4-step speed change and a spindle torque of 6494N/m with the 37kw motor, and says the spindle is carried in D4 class bearings. Top speed is 2,500 rpm on a #50 nose. The listed motor is 22 / 26 kW, with 30 / 37 kW as the option (Cont. / 30 min).

Column and base are scaled up as well: 780mm between the column's box guideways, each 100mm thick, and 1140mm between the base guideways. The magazine holds 32, 40 or 60 BT-50 tools.

Full Specifications

Parameter	Value
Table Size	1,400 x 1,600 mm (55.1 x 63.0 in)
Max Table Load	8,000 kg (17,637 lb)
X Axis Travel	2,500 opt. 3,000 / 4,000 mm
Y Axis Travel	2,000 opt. 2,500 mm
Z Axis Travel	1,500 opt. 2,000 mm
W Axis Travel	700 mm (27.6 in)
Spindle Taper	#50
Spindle Speed Gear	2,500 rpm
Tool Capacity	A: 32 / 40 / 60 pcs
Tool Shank	BT - 50 (CAT50 / DIN / BBT50)
Spindle Motor Power	22 / 26 opt. 30 / 37 kW (Cont. / 30 min)

Specifications sourced from hartfordcnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Travel options up to 4,000 mm in X, 2,500 mm in Y and 2,000 mm in Z
Spindle torque of 6494N/m with the 37kw motor, through a 4-step speed change
W axis of 700 mm (27.6 in)
22 / 26 kW motor, optionally 30 / 37 kW (Cont. / 30 min)
Column box guideways 780mm apart and 100mm thick

Limitations

Table of 1,400 x 1,600 mm (55.1 x 63.0 in) and 8,000 kg (17,637 lb), the smallest of the PBM-135 models
Maximum spindle speed of 2,500 rpm
The longer X, Y and Z strokes are options and have to be specified at order
No facing head, spindle diameter or rotary table accuracy is published

Best For

Deep boring of large housings with high torque demand Long weldments, with the 3,000 mm or 4,000 mm X option Parts up to 8,000 kg (17,637 lb) that are tall more than wide Heavy face milling in steel and cast iron

Frequently Asked Questions

01 What travels can the Hartford PBM-135A be ordered with?

The table lists X as 2,500 opt. 3,000 / 4,000 mm, Y as 2,000 opt. 2,500 mm and Z as 1,500 opt. 2,000 mm. The W axis travel is 700 mm (27.6 in).

02 How much torque does the PBM-135A spindle deliver?

Hartford states a spindle torque of 6494N/m (37kw), achieved through a 4-step speed change. The spindle runs at up to 2,500 rpm and is supported by D4 class bearings.

03 What is the difference between the PBM-135A, PBM-135B and PBM-135C?

The table. The PBM-135A has 1,400 x 1,600 mm (55.1 x 63.0 in) for 8,000 kg (17,637 lb). The PBM-135B has 1,600 x 1,800 mm (63.0 x 70.9 in) for 12,000 kg (26,455 lb), and the PBM-135C has 1,800 x 2,000 mm (70.9 x 78.7 in) for 15,000 kg (33,069 lb).

04 What tooling does the PBM-135A use?

BT-50 shanks, with CAT50, DIN and BBT50 listed as alternatives, on a #50 spindle nose. The automatic tool changer holds 32, 40 or 60 tools.
