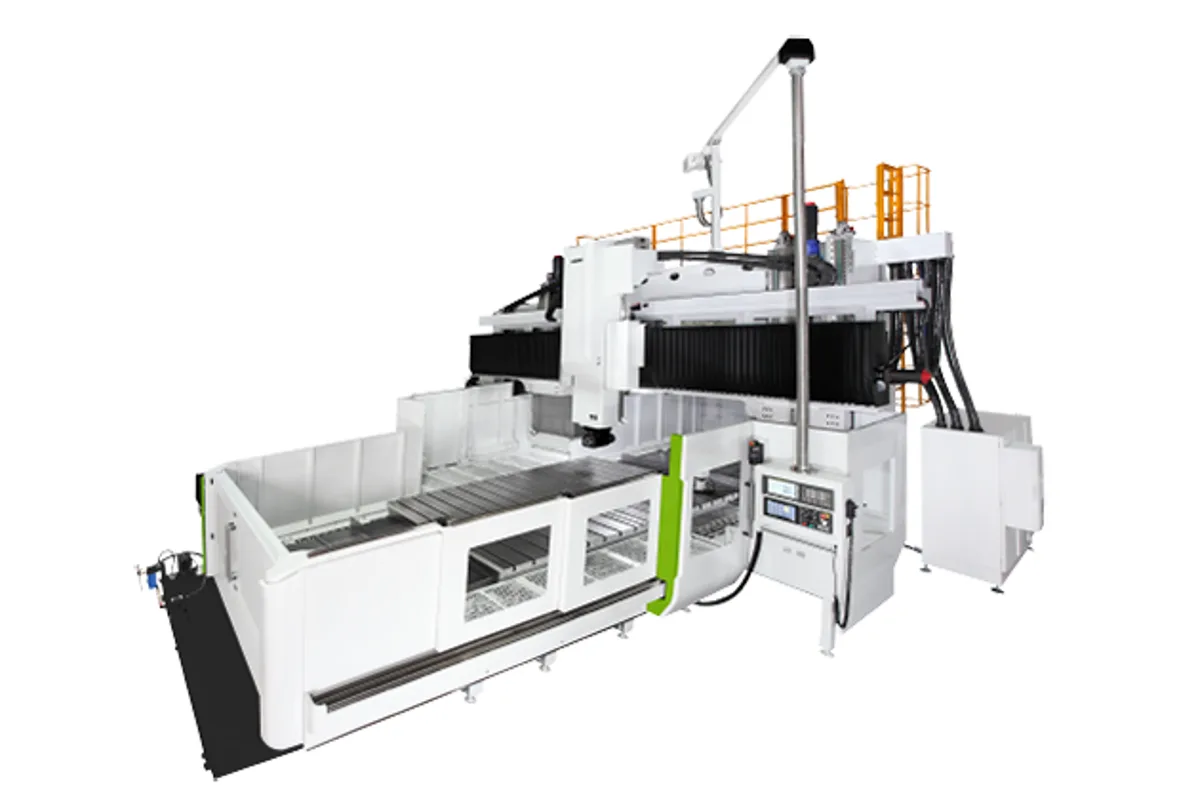

Hartford MW-543
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford MW-543 cost?
Price estimate
We do not have a price for the Hartford MW-543 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford MW-543 widens the MW moving-crossbeam double-column machining center to a 3,000 mm table. The table is 5,000 x 3,000 mm (196.9 x 118.1 in), Y travel is 4,300 mm (169.3 in), X travel is 5,000 mm (196.9 in), and the table load is 21,000 kg (46,296 lb).
Compared with the MW-533 on the same X stroke, the gain is in table load, 21,000 kg against 15,000 kg (33,069 lb) for the MW-533, and a metre more Y. That is the difference between a machine for frames and one for large die sets, platens and the housings of heavy gear units.
Wide bridges put demands on the columns. Hartford extends the column bases to 1250mm to reduce cutting vibration, and supports the X and Y ballscrews. The crossbeam is positioned in W by twin ballscrews and twin servo motors over 1,200 mm, or 1,500 mm or 1,800 mm.
Z travel is 1,000 mm, optionally 1,200 mm, on a four-guideway ram. Spindle choices are the #50 gear head at 6,000 / 8,000 rpm and the hybrid spindle at 10,000 rpm, with 18.5 / 22 kW or 30 / 35 kW. Automatic universal, 90 degree and extension heads are available, and the tool magazine holds 32, 40 or 62.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 5,000 x 3,000 mm (196.9 x 118.1 in) |
| Max Table Load | 21,000 kg (46,296 lb) |
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 4,300 mm (169.3 in) |
| Z Axis Travel | 1,000 opt. 1,200 mm |
| W Axis Travel | 1,200 opt. 1,500 / 1,800 mm |
| Spindle Taper | #50 |
| Spindle Speed Hybrid | 10,000 rpm |
| Spindle Speed Gear | 6,000 / 8,000 rpm |
| Tool Capacity | A: 32 (40 / 62) pcs |
| Tool Shank | BT-50 (CAT50 / DIN / BBT50) |
| Spindle Motor Power | 18.5 / 22 opt. 30 / 35 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 5,000 x 3,000 mm (196.9 x 118.1 in) table rated for 21,000 kg (46,296 lb)
- 4,300 mm (169.3 in) of Y travel
- Column bases extended to 1250mm for vibration control
- Twin-ballscrew W axis with options to 1,800 mm
- Gear spindle at 6,000 / 8,000 rpm or hybrid at 10,000 rpm
Limitations
- Z travel of 1,000 mm, or 1,200 mm, relies on the W axis for tall parts
- Motor options end at 30 / 35 kW (Cont. / 30 min)
- No spindle faster than 10,000 rpm
- No published rapid rates for a machine with this much moving mass
Best For
Frequently Asked Questions
01
5,000 x 3,000 mm (196.9 x 118.1 in), with an average load of 21,000 kg (46,296 lb). The table moves in X under the bridge, so that load rides on the X guideways.
02
X 5,000 mm (196.9 in), Y 4,300 mm (169.3 in), Z 1,000 mm (1,200 mm optional) and W 1,200 mm (1,500 mm or 1,800 mm optional).
03
Hartford cites column bases extended to a width of 1250mm, X/Y-axis ballscrew support, and a Z axis on four linear guideways whose patented binding structure is said to add 20% rigidity while cutting.
04
The MW-643, with the same 3,000 mm table width and 4,300 mm (169.3 in) of Y, 6,000 mm (236.2 in) of X travel and a 24,000 kg (52,910 lb) load.
More from Hartford
Other Vertical Machining Centers (VMC)
Haas CM-1

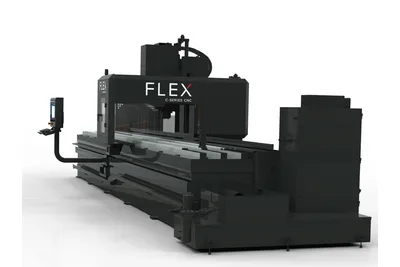

Flex Machine Tools C-20-02
Vision Wide MHN-4035 / MHN-4042

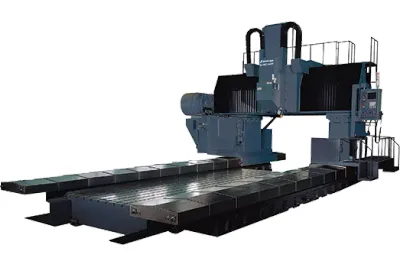

Johnford SDMC-6000x2800x1066

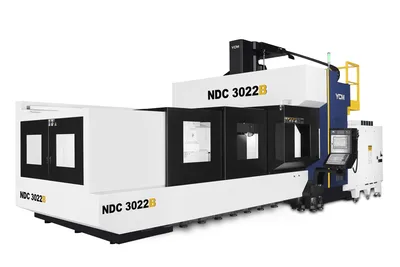

YCM NDC3022B
