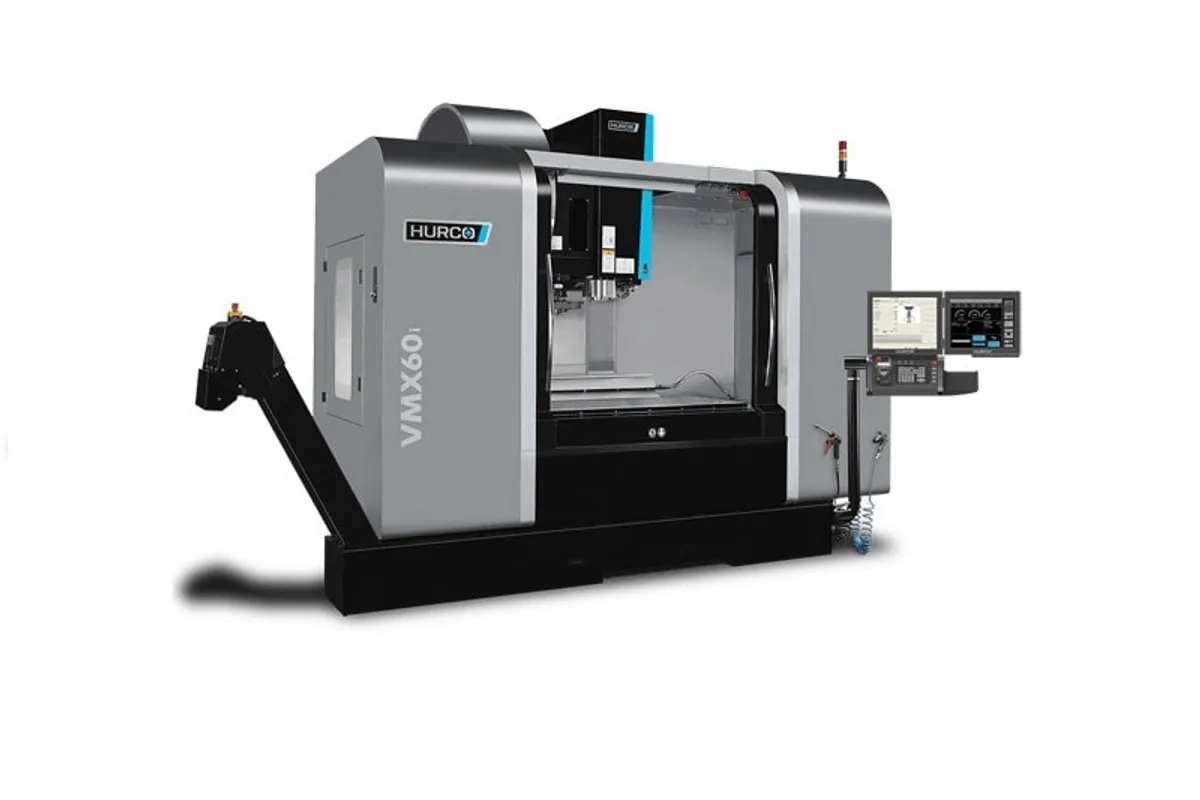

Hurco VMX60i

$145,000 - $185,000 Updated 2026-03-16

Key Specifications

X Travel

1,524 mm (60 in)

Y Travel

610 mm (24 in)

Z Travel

610 mm (24 in)

Max Spindle

10,000 RPM

Spindle Taper

ISO 40 (CT40 / BT40)

Tool Capacity

36-station dual-arm ATC

Overview

The Hurco VMX60i is a large-capacity vertical machining center with a 60x24-inch work envelope, placing it in the category of high-bed VMCs used for mold bases, aerospace structural parts, large fixtures, and long-travel production runs. The machine is built on a heavily ribbed cast-iron base with box-way guideways on all three axes, a deliberate structural choice that prioritizes vibration damping and heavy-cut rigidity over maximum rapid speed. The 30 kW (40 hp) geared spindle delivers 254 Nm (187 ft-lb) of torque and tops out at 10,000 RPM with an ISO 40 taper.

Despite its large footprint, the VMX60i retains Hurco's signature WinMax dual-screen control. The 15.4-inch primary touch-screen handles conversational programming and G-code input, while the secondary 12-inch screen displays program graphics, DXF drawings, or simulation output. UltiMotion path control manages smooth acceleration through long-axis travel distances, reducing cycle time and improving surface quality in extended contouring passes. The 36-station dual-arm ATC provides 3.0-second tool-to-tool times, appropriate for a machine of this scale.

The table measures 1,524 x 610 mm (60 x 24 in) with five T-slots and supports up to 2,268 kg (5,000 lb). Z-axis travel is 610 mm (24 in), providing generous clearance for tall fixtures and stacked workholding. Rapid traverse runs at 25.4 m/min (1,000 ipm) on all three axes — slower than the VMX30i and VMX42i, reflecting the box-way construction. Positioning accuracy is ±0.005 mm (±0.0002 in) with repeatability at ±0.003 mm (±0.00012 in).

The VMX60i occupies a niche between standard 50-inch VMCs and dedicated horizontal machining centers. It competes with the Haas VF-5 and VF-6, the Mazak VCN-530C, and the Okuma GENOS M560-V. The Hurco's box-way construction and WinMax control differentiate it for shops that need both large capacity and flexible mixed-programming workflow. Base pricing typically falls in the $145,000–$185,000 range.

Full Specifications

Parameter	Value
X-Axis Travel	1,524 mm (60 in)
Y-Axis Travel	610 mm (24 in)
Z-Axis Travel	610 mm (24 in)
Max Spindle Speed	10,000 RPM
Spindle Taper	ISO 40 (CT40 / BT40)
Spindle Motor Power	30 kW (40 hp)
Spindle Torque	254 Nm (187 ft-lb)
Tool Capacity	36-station dual-arm ATC
Tool To Tool	3.0 sec
Chip To Chip	5.0 sec
Max Tool Diameter	89 mm (3.5 in)
Max Tool Length	400 mm (15.7 in)
Max Tool Weight	9 kg (20 lb)
Table Size	1,524 x 610 mm (60 x 24 in)
T Slots	5 slots, 80 mm (3.15 in) center distance
Max Table Load	2,268 kg (5,000 lb)
Rapid Traverse Rate	25.4 m/min (1,000 ipm) all axes
Positioning Accuracy	±0.005 mm (±0.0002 in)
Repeatability	±0.003 mm (±0.00012 in)
Machine Weight	10,430 kg (23,000 lb)
CNC Control	Hurco WinMax dual-screen (15.4-in + 12-in touch-screen, conversational + G-code)
Coolant Capacity	300 L (79 gal)
Electrical	230/460 VAC 3-phase, 100 A

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

60x24-inch box-way construction provides class-leading rigidity for large mold bases, structural aerospace parts, and heavy fixtures up to 5,000 lb
40 hp geared spindle delivers 254 Nm of torque — significantly more than ISO 40 direct-drive competitors — for aggressive roughing in steel and cast iron
36-station dual-arm ATC with 3.0-sec tool-to-tool times efficiently supports complex multi-tool programs without operator intervention
Dual-screen WinMax retains the conversational programming advantage even on large, complex parts where setup time can otherwise dominate cycle time
610 mm (24 in) Z-axis travel provides more vertical clearance than most comparable 60-inch VMCs, accommodating taller workholding setups

Limitations

25.4 m/min (1,000 ipm) rapids are slower than linear-guide competitors from Haas (VF-6 at 35 m/min) and Mazak in the same footprint class
ISO 40 taper on a 40 hp machine creates a mismatch — this power level is more naturally served by ISO 50 tooling for maximum rigidity on large-diameter cutters
At 23,000 lb, the VMX60i requires careful floor loading analysis and typically needs a dedicated reinforced pad or thicker concrete

Best For

Mold and die shops machining large mold bases and cavity blocks that exceed the 40–50-inch capacity of standard VMCs Aerospace manufacturers cutting long aluminum structural profiles and fixtures requiring 60 inches of uninterrupted X-travel Heavy industrial job shops running large steel and cast iron parts where the 40 hp box-way machine provides better surface finish than lighter VMCs Shops needing a single machine that covers both large-part roughing and finish milling without moving work between machines

Frequently Asked Questions

01 How does the VMX60i compare to the Haas VF-6?

Both machines cover a similar work envelope (60-inch X-travel). The Haas VF-6 uses linear guideways and offers faster rapids (35 m/min vs 25 m/min) at a lower base price. The Hurco VMX60i uses box-way construction for superior heavy-cut rigidity and a geared spindle for more torque at low RPM. For shops cutting mostly aluminum at high speeds, the Haas VF-6 wins. For shops cutting steel, cast iron, and hardened materials with heavy tooling, the Hurco's structural advantage justifies the price premium.

02 Is ISO 40 adequate for a 40 hp spindle?

ISO 40 is generally adequate for most tooling up to 63 mm face mills and 25 mm end mills in this power range. The limitation appears at very large-diameter cutters (100 mm+) where the smaller taper creates more pull-out risk under heavy radial loading. Most shops running ISO 40 on a 40 hp machine select tooling diameters appropriate for the taper and compensate with aggressive depth-of-cut rather than large cutter diameters.

03 What are the floor load requirements for the VMX60i?

At 23,000 lb, the VMX60i requires a minimum 6-inch-thick reinforced concrete floor pad rated for at least 10,000 lb/sq ft. Most installations require an engineering floor load review. The machine footprint is approximately 6.4 m (21 ft) L x 3.7 m (12 ft) W with full axis travel clearance. Confirm local structural requirements before site preparation.

04 Can the VMX60i run long-part profiling in aerospace aluminum?

Yes — this is one of the VMX60i's strongest applications. The 60-inch X-axis handles structural spars, ribs, and skins that require continuous contouring along their full length. UltiMotion path control smooths out the direction changes in complex profile cuts, reducing vibration-induced chatter marks. Through-spindle coolant at 70 bar is recommended for high-speed aluminum to evacuate chips and prevent recutting.

05 What is the typical delivery and installation timeline for a new VMX60i?

New VMX60i orders typically carry 12–20-week lead times depending on region and demand. Installation requires a rigging crew and a forklift or crane rated for 25,000+ lb — overhead clearance of at least 5 m (16 ft) is needed for the machine to be set in place. Hurco's factory-trained technicians perform installation and commissioning, typically a 2–3 day process after delivery.
