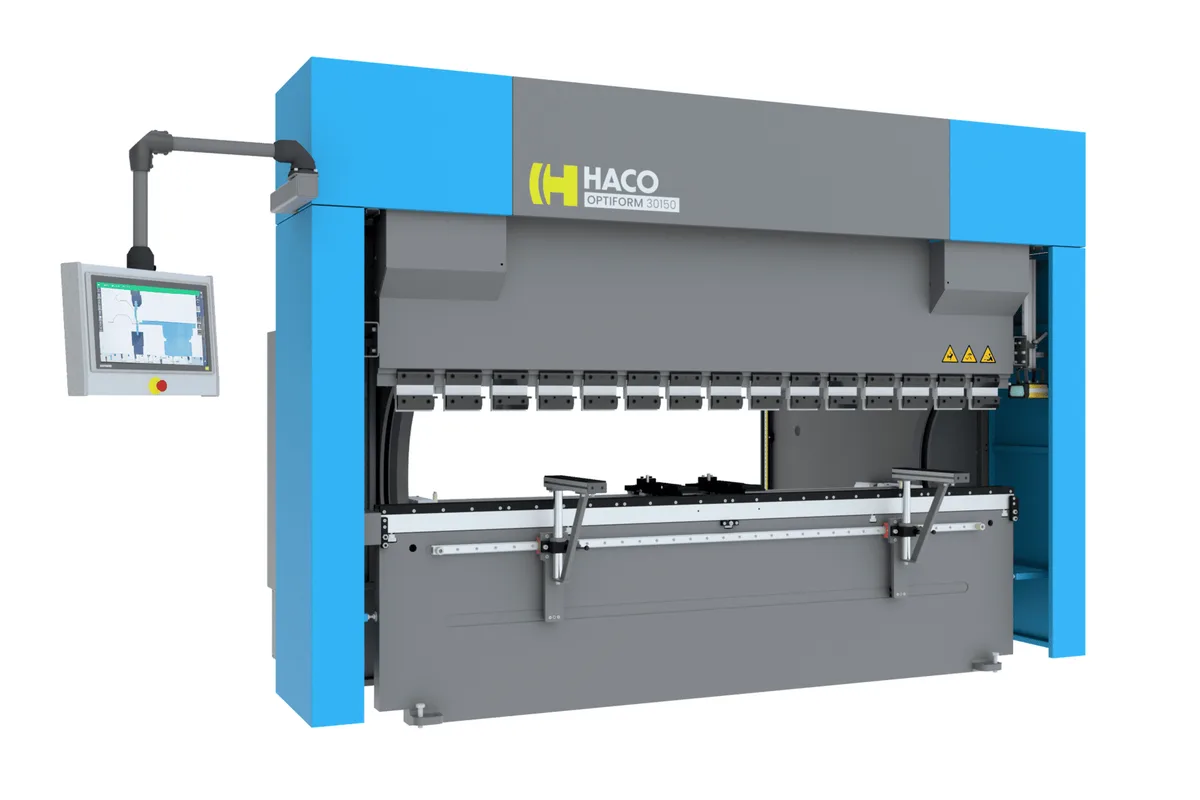

Haco OptiForm 30150+
Image: haco.com, Haco
Key Specifications
press force
bending length
distance between side plates
max open height
effective open height
throat gap
How much does the Haco OptiForm 30150+ cost?
Price estimate
We do not have a price for the Haco OptiForm 30150+ that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Haco OptiForm 30150+ is a hydraulic CNC press brake with 1,500 kN of press force over a bending length of 3,100 mm (122.0 in). It is the better-equipped of two preconfigured OptiForm machines, and what the plus sign buys is a 4-axis X-R-Z1-Z2 backgauge and CNC crowning. The plain OptiForm 30150 has a 2-axis X-R backgauge and manual crowning.
Both additions cut setup rather than add force. With Z1 and Z2 the two backgauge fingers move independently along the bed at 1,000 mm/s, so a part can be bent at several tool stations without the operator shifting fingers by hand. CNC crowning sets the table compensation from the material, thickness and length entered at the control. The backgauge reaches 600 mm (23.6 in) in X, with a maximum gauging distance of 1,000 mm (39.4 in), and 200 mm (7.9 in) in R.
Between the side plates there is 2,600 mm (102.4 in), so a part longer than that can only be bent as deep as the 400 mm (15.7 in) throat gap. Maximum open height is 480 mm (18.9 in), or 380 mm (15.0 in) effective with the 100 mm ES intermediate, and the Y axis strokes 200 mm (7.9 in). The beam comes down at 180 mm/s, works at 10 mm/s and returns at 125 mm/s.
The control is Haco's own EASYBEND on an 18.5” multi-touch screen. Top tooling is held in an ES Quick Clamp or, for the U.S., a Universal Fast Clamp that takes both US and European style tools. A safety laser at the tool tip, side doors and an air-conditioned electrical cabinet are part of the machine. It weighs 8,300 kg (18,298 lb), runs on a 15 kW (20.1 hp) main motor and is 3,795 mm (149.4 in) wide. Haco builds it in one size only and delivers it from stock.
Full Specifications
| Parameter | Value |
|---|---|
| Press Force | 1,500 kN |
| Bending Length | 3,100 mm (122.0 in) |
| Distance Between Side Plates | 2,600 mm (102.4 in) |
| Max Open Height | 480 mm (18.9 in) |
| Effective Open Height | 380 mm (15.0 in) with ES intermediate 100 mm |
| Throat Gap | 400 mm (15.7 in) |
| Table Height | 850 mm (33.5 in) |
| Y Axis Travel | 200 mm (7.9 in) |
| Y Axis Fast Down Speed | 180 mm/s |
| Y Axis Working Speed | 10 mm/s |
| Y Axis Return Speed | 125 mm/s |
| Backgauge | 4-axis X-R-Z1-Z2 |
| X Axis Travel | 600 mm (23.6 in) |
| X Axis Max Gauging Distance | 1,000 mm (39.4 in) |
| X Axis Speed | 400 mm/s |
| R Axis Travel | 200 mm (7.9 in) |
| R Axis Speed | 62.5 mm/s |
| Z1 Z2 Axis Speed | 1,000 mm/s |
| Crowning | CNC |
| CNC Control | EASYBEND |
| Main Motor Power | 15 kW (20.1 hp) |
| Machine Width | 3,795 mm (149.4 in) |
| Machine Height | 2,545 mm (100.2 in) |
| Machine Depth | 1,705 mm (67.1 in) without rear light guard; 1,855 mm (73.0 in) with control arm; 2,055 mm (80.9 in) with rear light guard |
| Machine Weight | 8,300 kg (18,298 lb) |
Specifications sourced from haco.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4-axis X-R-Z1-Z2 backgauge with Z1/Z2 fingers travelling at 1,000 mm/s
- CNC crowning, set automatically from the bend data at the EASYBEND control
- 1,500 kN over 3,100 mm (122.0 in), with 2,600 mm (102.4 in) between the side plates
- Maximum open height of 480 mm (18.9 in) and a 400 mm (15.7 in) throat gap
- Choice of ES Quick Clamp or Universal Fast Clamp for US and European style tooling
- Preconfigured model delivered from stock
Limitations
- One size only: there is no shorter, longer or heavier OptiForm at launch
- Bending (working) speed is 10 mm/s
- Y-axis travel is 200 mm (7.9 in), which limits deep box work
- Offline programming with HACOBEND Pro 2D is optional equipment
- Front support arms of 430 mm are an addition, not part of the base machine
Best For
Frequently Asked Questions
01
Backgauge and crowning. Haco states that the OptiForm 30150 comes standard with a 2-axis X-R backgauge and manual crowning, and that the OptiForm 30150+ is equipped with a 4-axis X-R-Z1-Z2 backgauge and CNC crowning. Both are the 3-meter length with a 150-ton capacity. The technical table in the brochure is headed OptiForm 30150+.
02
Press force is 1,500 kN and bending length 3,100 mm (122.0 in). The distance between the side plates is 2,600 mm (102.4 in) and the throat gap 400 mm (15.7 in). Maximum open height is 480 mm (18.9 in); effective open height is 380 mm (15.0 in) with the ES intermediate. Y-axis travel is 200 mm (7.9 in).
03
The Y axis approaches at 180 mm/s, bends at 10 mm/s and returns at 125 mm/s. The backgauge moves at 400 mm/s in X and 62.5 mm/s in R, and the Z1/Z2 fingers at 1,000 mm/s.
04
European Standard (ES) top tools in an ES Quick Clamp, in standard lengths of 835mm, 415mm, or sectionalized lengths. For the U.S. Haco offers a Universal Fast Clamp compatible with both US and European style tooling. The table has a 60mm groove for ES bottom tools.
05
It is 3,795 mm (149.4 in) wide and 2,545 mm (100.2 in) high. Depth is 1,705 mm (67.1 in) without the rear light guard, 1,855 mm (73.0 in) with the control arm and 2,055 mm (80.9 in) with the rear light guard. Weight is 8,300 kg (18,298 lb) and the main motor is 15 kW (20.1 hp).
