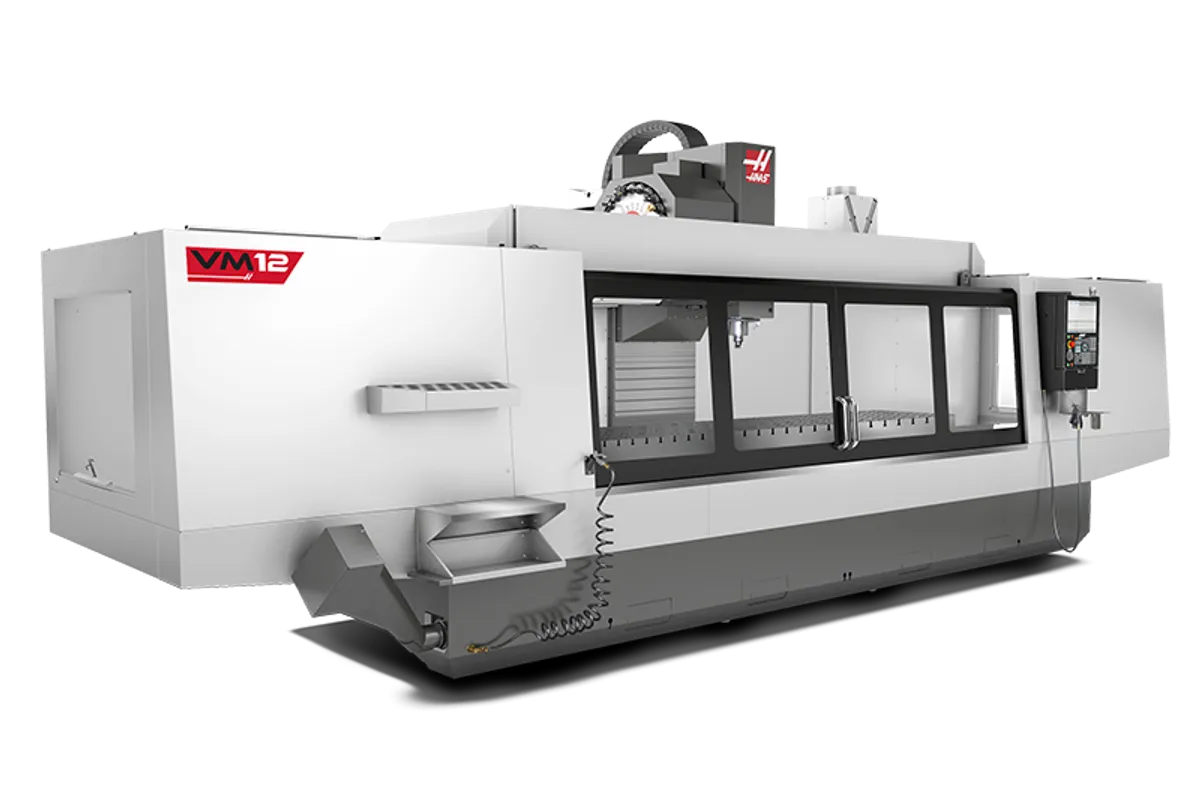

Haas VM-12
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Haas VM-12 cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas VM-12 stretches Haas's mold machine design to 150 in (3,810 mm) of X travel. The table is 150 × 28 in (3,810 × 711 mm), Y travel is 32 in (813 mm), Z is 30 in (762 mm), and the 40-taper inline direct-drive spindle is rated 30 hp (22.4 kW) at up to 12,000 rpm.
The VM-10 offers the same Y, Z, spindle and table width with 120 in (3,048 mm) of X, so the question is simply whether the part, or the row of parts, needs the extra length. Haas lists 30 T-slots in Y on this table and 5 in X, on 4.92 in (125 mm) centres. A table this long can also be treated as more than one work area, with different jobs fixtured at each end, since the spindle reaches all of it.
Length has a cost in time. X rapids are 360 ipm (9.1 m/min), equal to the top cutting feed, so a traverse from one end to the other is the slowest move the machine makes; Y and Z rapid at 600 ipm (15.2 m/min). X and Y each have 4,100 lbf (18,238 N) of thrust and Z has 5,600 lbf (24,910 N). The 30+1 tool changer runs 2.8 s tool-to-tool and 3.6 s chip-to-chip.
Delivery needs planning. Haas's shipping table gives 36,300 lb (16,466 kg) and a domestic pallet of 343 × 110 × 130 in (871 × 280 × 331 cm), so the route into the building and the rigging have to suit a load 343 in long. Those are shipping dimensions, not the installed size. The 4,000 lb (1,814 kg) table load is unchanged from the VM-10. The starting price is US$421,995.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 150 in (3,810 mm) |
| Y-Axis Travel | 32 in (813 mm) |
| Z-Axis Travel | 30 in (762 mm) |
| Spindle Nose to Table (max) | 34 in (864 mm) |
| Spindle Nose to Table (min) | 4 in (102 mm) |
| Spindle Motor Power | 30 hp (22.4 kW) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Torque | 90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm) |
| Spindle Drive | Inline Direct-Drive |
| Spindle Taper | CT40 / BT40 / HSK-A63 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Coolant Jacket |
| Table Size | 150 × 28 in (3,810 × 711 mm) |
| T-Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| T-Slot Center Distance | 4.92 in (125 mm) |
| T-Slots | 5 in X and 30 in Y |
| Max Table Load | 4,000 lb (1,814 kg) |
| Max Cutting Feedrate | 360 ipm (9.1 m/min) |
| Rapid Traverse X | 360 ipm (9.1 m/min) |
| Rapid Traverse Y | 600 ipm (15.2 m/min) |
| Rapid Traverse Z | 600 ipm (15.2 m/min) |
| Max Thrust X | 4,100 lbf (18,238 N) |
| Max Thrust Y | 4,100 lbf (18,238 N) |
| Max Thrust Z | 5,600 lbf (24,910 N) |
| Tool Changer Type | SMTC |
| Tool Capacity | 30+1 |
| Max Tool Diameter (full magazine) | 2.5 in (64 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5 in (127 mm) |
| Max Tool Diameter Extra Large Adjacent Empty | 6 in (152 mm) |
| Max Tool Length | 16 in (406 mm) |
| Max Tool Weight | 12 lb (5.4 kg) |
| Tool Change (tool-to-tool) | 2.8 s |
| Tool Change (chip-to-chip) | 3.6 s |
| Coolant Capacity | 95 gal (360 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 343 × 110 × 130 in (871 × 280 × 331 cm) |
| Shipping Export Crate | 343 × 110 × 134.5 in (871 × 280 × 342 cm) |
| Machine Weight | 36,300 lb (16,466 kg) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 150 in (3,810 mm) of X travel and a 150 × 28 in (3,810 × 711 mm) table, against 120 in (3,048 mm) on the VM-10
- 30 T-slots in Y along the table, on 4.92 in (125 mm) centres, for locating fixtures at any station
- 4,100 lbf (18,238 N) of X and Y thrust with 5,600 lbf (24,910 N) on Z
- A table 150 in (3,810 mm) long leaves room to fixture separate jobs at each end
- 30 hp (22.4 kW), 12,000 rpm spindle with CT40, BT40 or HSK-A63 taper choices
Limitations
- X rapids of 360 ipm (9.1 m/min) make end-to-end moves over 150 in (3,810 mm) slow
- Table load is 4,000 lb (1,814 kg), the same as the VM-10 despite the longer table
- Y travel is 32 in (813 mm); the VM-14 has 40 in (1,016 mm) over the same 150 × 28 in table
- Ships on a pallet 343 in (871 cm) long at 36,300 lb (16,466 kg), which calls for a clear route and heavy rigging
- Torque is 90 ft-lbf (122 N·m) at 2,000 rpm; heavy cutting is the job of the VM-12/50 with 350 ft-lbf (475 N·m) at 900 rpm
Best For
Frequently Asked Questions
01
The table is 150 × 28 in (3,810 × 711 mm) and X travel is 150 in (3,810 mm), so the spindle reaches the full length. Y travel is 32 in (813 mm) and Z travel is 30 in (762 mm), with the spindle nose between 4 in (102 mm) and 34 in (864 mm) above the table.
02
Y travel. The VM-14 has 40 in (1,016 mm) of Y; the VM-12 has 32 in (813 mm). Both have 150 in (3,810 mm) of X, a 150 × 28 in (3,810 × 711 mm) table and the same 30 hp (22.4 kW), 12,000 rpm spindle, and Haas lists the same 36,300 lb (16,466 kg) shipping weight for the VM-14 as for the VM-12.
03
The table is rated for 4,000 lb (1,814 kg), the same as the shorter VM-10. A long table invites long steel parts, and those reach the limit quickly once fixtures are added, so weigh the whole setup. For light alloy plate or several small fixtures the rating is rarely the constraint.
04
Haas lists a domestic pallet of 343 × 110 × 130 in (871 × 280 × 331 cm) and an export crate of 343 × 110 × 134.5 in (871 × 280 × 342 cm), at 36,300 lb (16,466 kg). These describe the machine as shipped, which is what the rigger and the building entrance have to handle. They are not the installed floor space.
05
Haas lists 5 in X and 30 in Y. The slots are 0.626 in to 0.63 in (15.9 mm to 16 mm) wide on 4.92 in (125 mm) centres. With slots running both ways, a fixture can be keyed in either direction at any point along the 150 in (3,810 mm) table.
